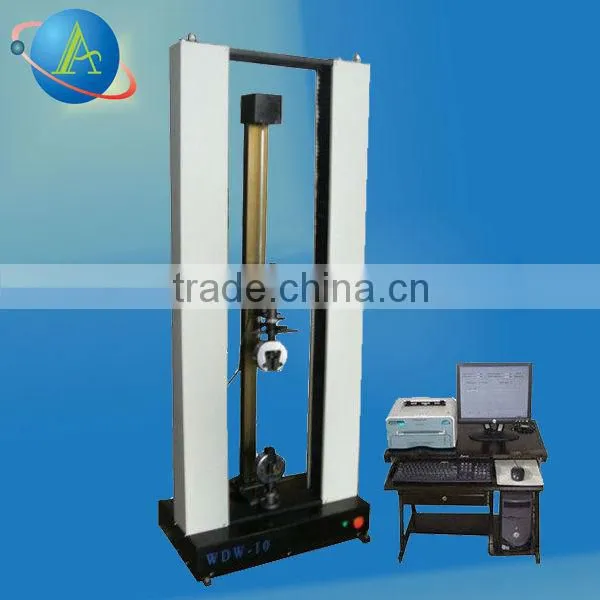

Shear Strength Testing Machine

Shear Strength Testing Machine thumbnail-1
Shear Strength Testing Machine photo-1
US$ 2,000 - 29,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Auto
Model Number:
AUTO
Contact Supplier Request Quote Chat Now
Shenzhen Autostrong Instrument Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Auto
Model Number AUTO
Power Electronic
Usage Tensile Testing Machine

Specifications

1. for metallic and non-metallic materials
2.test tensile , compression , bending , shear, peel

Universal Testing Machine



Specification:1kN,2kN,5kN,10kN,20kN,50kN,100kN,200kN,300kN,500kN,600kN, 100N,200N,500N,1000N,2000N , 100Nm,200Nm,500Nm,1000Nm
Application:The test machine is mainly suitable for rubber ,

plastic , paper , leather , metal wire , metal foil , food packaging ,

textile fibers , wire and cable , adhesives , connectors and

other material's tensile , compression , bending , shear , peel ,

 tear etc .mechanical tests

Series

AUTO3000

AUTO5000

Specification

3103

3203

3503

3104

3204

5504

5105

5205

5305

5500

5605

Max test force

1kN

2kN

5kN

10kN

20kN

50kN

100kN

200kN

300kN

500kN

600kN

Accurate grade

0.5grade

Effective       measuring range

0.4%~100%FS(Inside and outside , regardless of file)

The relative errorof test force    value

within ±0.5%

Test force        resolution

1/300000(Solution unchanging)

Deformation    measurement    range

0.2%~100%FS(Inside and outside , regardless of file)

The relative error of deformation  value

within ±0.5%

Deformation    resolution

1/300000

The relative errorof displacement value

within ±0.2%

Displacement    resolution

0.001mm

The adjusted    range of test    speed

0.005~500mm/min

0.0025~250mm/min

The relative errorof speed value

within ±0.5%

Uniform test    force rate       control range

0.01%~10%FS/s

Uniform test    force rate       control error

<0.05%FS within ±2%;≥0.05%FS,within ±0.1%;

Uniform        deformation rate control  range

0.01%~10%FS/s

Uniform        deformation rate control error

<0.05%FS,Within±2%;≥0.05%FS,within ±0.1%;

Constant force,  constant        deformation,    constant        displacement    control range

0.5%~100%FS

Constant force , constant        deformation,    constant        displacement    control accuracy

≤10%FS,within ±1%;>10%FS,with±0.1%;

The max travel  of moving      crossbeam

1100mm

1200mm

Effective test width

410mm

510mm

570mm

600mm

Machine size(L×G×H)cm

75×55×160

90×57×201

110×61.4×220

200kN 120×76×250

500kN 132×79×260

Power supply

220V/50Hz,500W

220V/50Hz,500W

220V/50Hz,1kW

380V/50Hz,2kW

380V/50Hz,4.5kW

Machine weight

260kg

800kg

900kg

1200kg

2000kg
