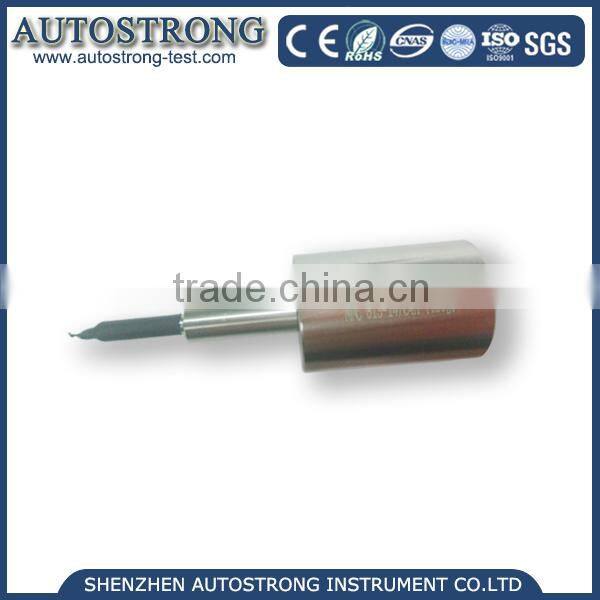

Measuring Gauging Tools UL498 Gauge
1.Application:
Autostrong offers a wide range of gauge to meet the most common standards including those from IEC,EN,UL,GB,DIN,VDE and other similar international standards.Such standards require the checking of size & definition etc,these gauges are constructed from senior stainless steel and appropriate steel with a hardness of at least 60HRC and a roughness according to standard require.
Brithsh Standards Test Gauge is strictly designed and manufactured according to the relevant standard requirements of UL 498 .
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
2.Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Surface corrosion and abrasion resistance can resist normal contact corrosion and not embroidered patch (the operator hand may exist in the sweat, the corrosion effect equivalent to NACL salt solution or NH4CL salt solution corrosion);
Material hardness is more than 60HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable
3.Specifications:
| 1 | UL498-figure9.1 | Articulate probe with web stop | |||
| 2 | UL498-figure10.1 | Prode | |||
| 3 | UL498-figure31.1 | Flat prode | |||
| 4 | UL498-figure69.1 | Reference plug | |||
| 5 | UL498-figure94.1 | Impoper insertion test blades | |||
| 6 | UL498-figure105.1 | Test plug | |||
| 7 | UL498-figure105.2 | Test blade | |||
| 8 | UL498-figure118.1 | Receptacle test fixture | |||
| 9 | UL498-figure118.3 | Push out tool | |||
| 10 | UL498-figure118.5 | Bridge | |||
| 11 | UL498-figure119.1 | Test pin A | |||
| 12 | UL498-figure119.2 | Test pin B | |||
| 13 | UL498-figure119.3 | 57g ground pin | |||
| 14 | UL498-figure119.4 | 113g ground pin | |||
| 15 | UL498-figure129.2 | No.14AWG test pin | |||
| 16 | UL498-figure132.1 | Test probe | |||
| 17 | UL498-fig132.2 | Testprobe | |||
| 18 | UL498-figure144.2 | Fixture for assembly security test | |||
| 19 | UL498-figureSD13.2 | Over size ground pin | |||

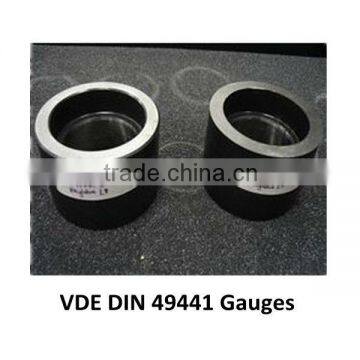

VDE0620-1 plugs and socket -outlets adaptors/gauges:
NFC613-14 gauge list
UL 498 plug and pin gauges:
