Plug Gauge Set IEC60320 Test Gauge for Connect
US$ 200 - 650
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AUTOSTRONG
Model Number:
AUTO-IEC60320
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UL498 Gauge for Measuring Test Gauge Tools With China SupplierUS$ 100 - 350MOQ: 1 Piece -
DIN VDE 0620-1 Lehre 2 Test the Smallest Opening Width and The Smallest Withdrawal Force of The Contact SocketsUS$ 60 - 200MOQ: 10 Sets
-
DIN VDE 0620-1 Lehre 8 Test The Largest Aperture of The Female ContactsUS$ 60 - 200MOQ: 10 Sets
-
DIN VDE 0620-1 Lehre 4 Plugs And Socket-Outlets Gauges For Household SafetyUS$ 120 - 350MOQ: 10 Sets
-
DIN VDE 0620-1 Lehre 9 Plug Gauge Interchangeability TestUS$ 160 - 450MOQ: 10 Sets
Place of Origin
Guangdong, China
Brand Name
AUTOSTRONG
Model Number
AUTO-IEC60320

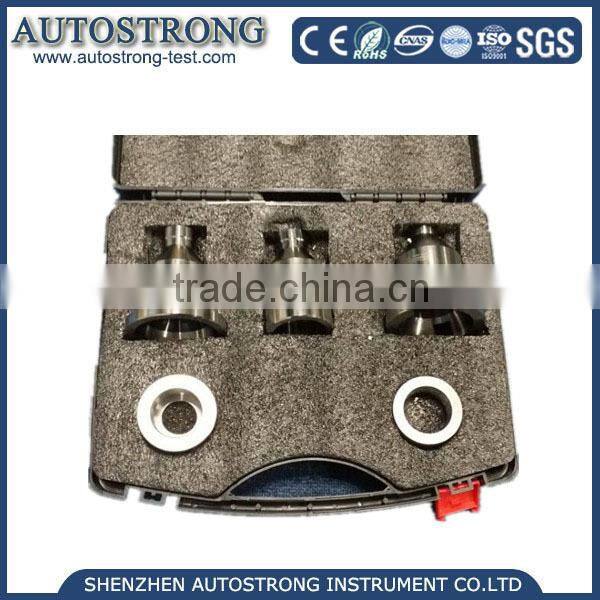

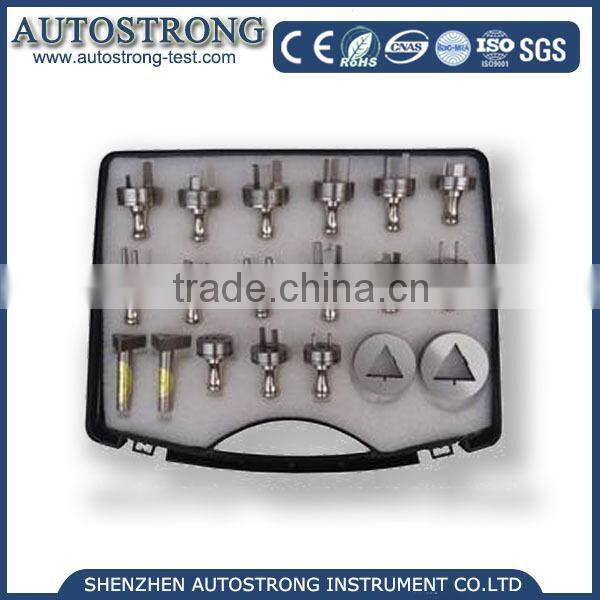

Plug gauge set IEC60320 Test Gauge for connector
Test Gauge
1.plug and socket test gauges;
2.hardness steel made;
3.Fast delivery and low price
4.Gauge in stock
Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Surface corrosion and abrasion resistance can resist normal contact corrosion and not embroidered patch (the operator hand may exist in the sweat, the corrosion effect equivalent to NACL salt solution or NH4CL salt solution corrosion);
Material hardness is more than 60HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.
Specifications:

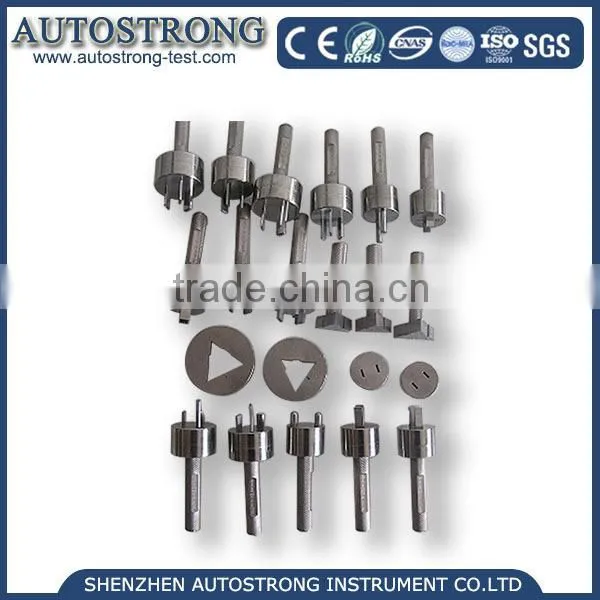

IEC60320-1-Figure 2 |
"Go" gauge for connectors to standard sheet C1 |
IEC60320-1- Figure4 |
"Go" gauge for connectors to standard sheet C5 |
IEC60320-1- Figure5 |
"Go" gauge for connectors to standard sheet C7 |
IEC60320-1- Figure5A |
"Go" gauge for side-entry connectors to standard sheet C7 |
IEC60320-1- Figure6 |
"Not Go" gauge for connectors to standard sheet C1 |
IEC60320-1- Figure7 |
"Not Go" gauge for connectors to standard sheet C1,C5 and C7 |
IEC60320-1- Figure8 |
"Not Go" gauge for connectors to standard sheet C1 and C7 |
IEC60320-1- Figure9 |
"Not Go" gauge for appliance inlets to standard sheet C8,C8A and C8B |
IEC60320-1- Figure9A |
"Go" gauge for connectors to standard sheet C9 |
IEC60320-1- Figure9B |
"Not Go" gauge for connectors to standard sheet C9 |
IEC60320-1- Figure9C |
"Go" gauge for appliance inlets to standard sheet C10 |
IEC60320-1- Figure9F |
"Go" gauge for connectors to standard sheet C13 |
IEC60320-1- Figure9G |
"Not Go" gauge for connectors to standard sheet C13 and C17 |
IEC60320-1- Figure 9H |
"Go" gauge for appliance inlets to standard sheets C14, C16 AND C18 |
IEC60320-1- Figure 9J |
"Go" gauge for connectors to standard sheet C15 |
IEC60320-1- Figure 9K |
"Go" gauge for connectors to standard sheet C17 |
IEC60320-1- Figure 9L |
"Go" gauge for connectors to standard sheet C19 |
IEC60320-1- Figure 9M |
"Go" gauge for appliance inlets to standard sheet C20 and C24 |
IEC60320-1- Figure 9N |
"Go" gauge for connectors to standard sheet C21 |
IEC60320-1- Figure 9P |
"Go" gauge for appliance inlets to standard sheet C22 |
IEC60320-1- Figure 9Q |
"Go" gauge for appliance inlets to standard sheet C23 |
IEC60320-1- Figure 9R |
"Not Go" gauge for connectors to standard sheet C13,C15 and C17 |
IEC60320-1- Figure 9S |
"Go" gauge for connectors to standard sheet C15A |
IEC60320-1- Figure 9T |
"Go" gauge for appliance inlets to standard sheet C16A |
IEC60320-1- Figure 22 |
Blades for checking the resisitance against deformation of the front part of the connector to standard sheet C7 |
IEC60320-1- Figure 27 |
Gauges for checking the distance form the engagement face of connectors to the point of first contact |
VDE 0620 plugs and sockt-outlets adaptors:
BS1363-2 gauge list:
