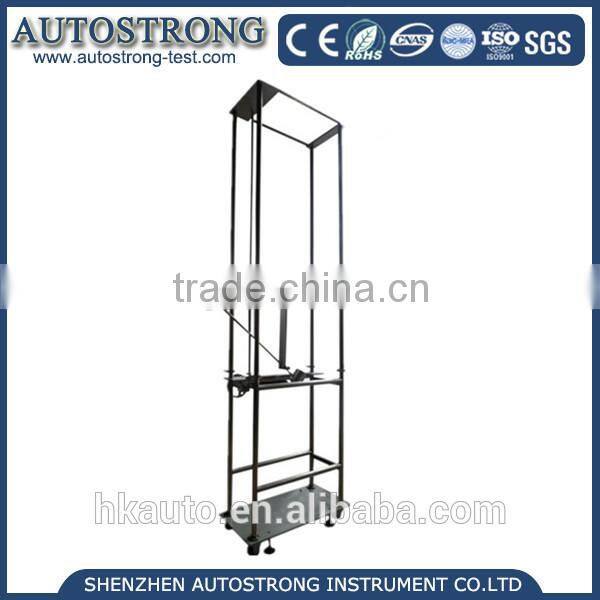

pendulum impact hammer
This Pendulum impact hammer tester conforms to IEC62262.
It is used for the mechanical strength test of the sheet metal like the substation ark and the metalloid electric energy metering cubicle. The mounting bracket and the angle of impact are adjustable. This device is for the energy impact test (the energy is more than 2J).
Energy/J |
≤1±10% |
2±5% |
5±5% |
10±5% |
20±5% |
50±5% |
Equivalent mass2%/KG |
0.25(0.2) |
0.5 |
1.7 |
5 |
5 |
10 |
Material |
Nylon |
steel |
||||
R/mm |
10 |
25 |
25 |
50 |
50 |
50 |
D/mm |
18.5(20) |
35 |
60 |
80 |
100 |
125 |
f/mm |
6.2(10) |
7 |
10 |
20 |
20 |
25 |
r/mm |
- |
- |
6 |
- |
10 |
17 |
L/mm |
According equivalent mass to adjust and determine |
|||||
|
A.Rockwell hardness HRR 85-100,Aaccording to ISO2039-2 B.Fe 490-2 according to ISO1052, Rockwell hardness HRR 80-85, according to ISO6508 | ||||||
Drop height
Energy/J |
0.14 |
0.2 |
(0.3) |
0.35 |
(0.4) |
0.5 |
0.7 |
1 |
2 |
5 |
10 |
20 |
50 |
||
Equivalent mass2%/KG |
0.25 |
(0.2) |
0.25 |
(0.2) |
0.25 |
(0.2) |
(0.2) |
0.25 |
0.25 |
0.25 |
0.5 |
1.7 |
5 |
5 |
10 |
Drop height ±1%/mm |
56 |
(100) |
80 |
(150) |
140 |
(200) |
(250) |
200 |
280 |
400 |
400 |
300 |
200 |
400 |
500 |
The Correspondence Between the Collision Energy and IK Code
IK Code |
IK01 |
IK02 |
IK03 |
IK04 |
IK05 |
IK06 |
IK07 |
IK08 |
IK09 |
IK10 |
Collision Energy/J |
0.14 |
0.2 |
0.35 |
0.5 |
0.7 |
1 |
2 |
5 |
10 |
20 |
