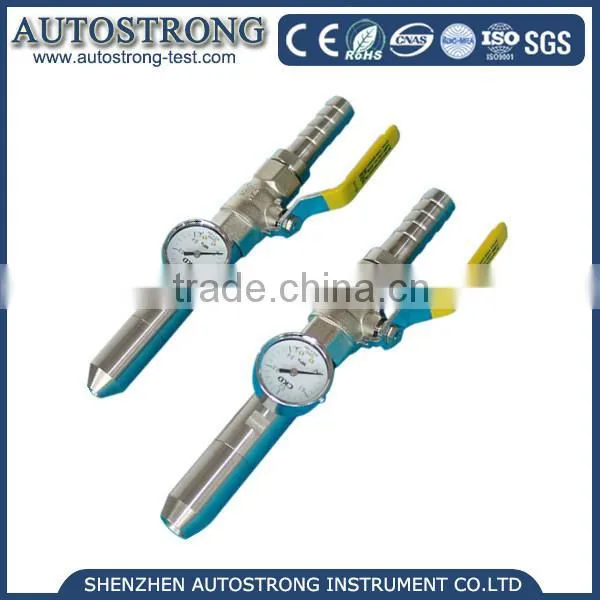

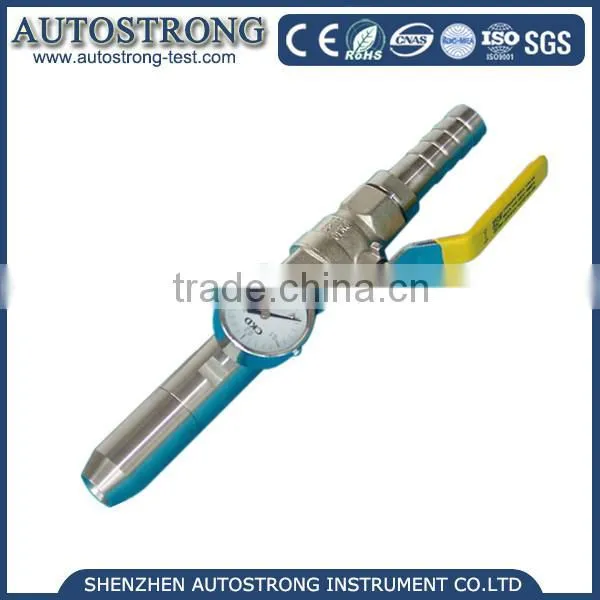

IPX5 Jet Nozzle Kit for Protection against low pressure jetting water
Application:
IPX5 and IPX6 call for a specimen to be sprayed with water from all practicable directions. IPX5 specifies a nozzle with a 6.3mm diameter opening and a flow of 12.5l/min. IPX6 specifies a nozzle with a 12.5mm diameter opening and a flow rate of 100l/min.
Features:
The nozzole test device consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.
Technical parameters:
Pressure Gauge |
0 - 1.6 bar |
Nozzle Diameter |
6.3mm(IPX5) ; 12.5mm(IPX6) |
Material |
Stainless steel nozzle |
Reference standards |
IEC60529 IPX5 IPX6, IEC60598-1 IEC 60335-1,IEC60745-1 |
Include: Pressure gauge.
Stainless steel nozzle.
Valve for water flow regulation and shut off.
Hose connector.
