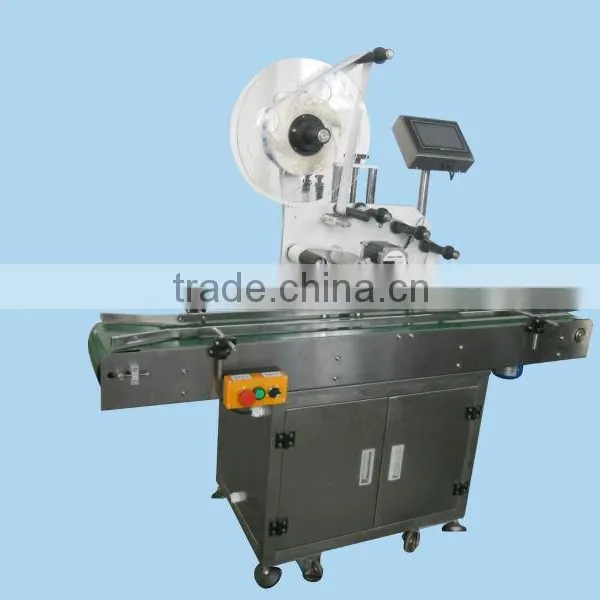

Automatic Flat Labeling Machine
US$ 1 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type:
Other, Books, Folder, Boxes, Plate,etc
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Multiple Labeling MachineUS$ 1 - 20,000MOQ: 1 Set -
Automatic Up-bottom Labeling MachineUS$ 1 - 20,000MOQ: 1 Set
-
Horizontal Round Bottle Labeling MachineUS$ 1 - 20,000MOQ: 1 Set
-
Bottle Multi-function Labeling MachineUS$ 1 - 20,000MOQ: 1 Set
-
One Side Labeling Machine Label Cutting Machine Label Sticking MachineUS$ 7,620 - 7,660MOQ: 1 Set
Condition
New
Application
Food, Beverage, Commodity, Medical, Chemical, Other, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type
Other, Books, Folder, Boxes, Plate,etc
Packaging Material
Plastic, Paper, Metal, Glass, Wood
Automatic Grade
Automatic
Driven Type
Other, Electric, Mechanical
Voltage
110/220/380V
Power
950W
Place of Origin
Shanghai, China
Brand Name
Hujia
Model Number
TBJ-P
Dimension(L*W*H)
1600 * 780 * 780
Weight
180
After-sales Service Provided
No overseas service provided
Specifications
Automatic Flat Labeling MachineSteady Performance
Guaranteed Quality
Competitive Price
Life Long Service Low Maintenance
Automatic Flat Labeling Machine
Features
- Applicable scope wide, can meet the product width 30 mm ~ 350 mm flat labeling and self-adhesive film, replaced by the overlying mechanism can meet the uneven surface of the label;
- Labeling of high precision, subdivision stepper motor or servo motor drive to send out label, send label is precisely; label circumambulate and rectify deviation mechanism design, ensure label drawing around in the process of no deviation; Eccentric gear technology applied in the drawing mechanism, drawing labels won't skid, ensure labeling precision;
- Durable, use three rod adjustment mechanism, make full use of the triangle stability, overall is solid and durable;
- High stability, advanced international electronic and control system, support 7 * 24 hours operation;
- Adjustment is simple, design 6 degrees of freedom adjustment, transformation between different products easier and save time;
- Application of flexible, can be stand-alone production or assembly line production, production site layout is simple;
- Automatic intelligent control, photoelectric track, no product,no label, automatic correction if no label and label automatic detection function, prevent leakage of label and labels to waste;
- Touch screen operation interface, full Chinese and English annotation and complete fault prompt functions, various parameter adjustment simple and quick, easy to operate;
- Powerful, have production count function, power saving function, set number production function, parameter setting protection function, convenient operation;
Optional features and components:
1) hot code/printing function;
(2) automatic discharging function (depend on product)
(3) automatic feeding function ((depend on product)
(4) add the labeling device;
(5) other functions (according to customer special requirement)
Technical Parameters
Applicable product size: (length x width x height/thickness)
Long: 40 mm ~ 400 mm
Wide: 40 mm ~ 200 mm
Thickness: 0.2 mm ~ 150 mm
Labeling accuracy (mm) : + / - 1 mm
Labeling speed (PCS/min) : 50 ~ 200 PCS/min
Weight (kg) : about 180 kg
Frequency (HZ) : 50/60 HZ
Voltage (V) : 220/380 V
Power (W) : 950 W
Dimensions (length x width x height) (mm) : 1600 * 780 * 780
Pls contact us for more technical info.
