Specifications
small semi-automatic fluid filling machinepneumatic not need electric power
high accuracy
good performance
factory price

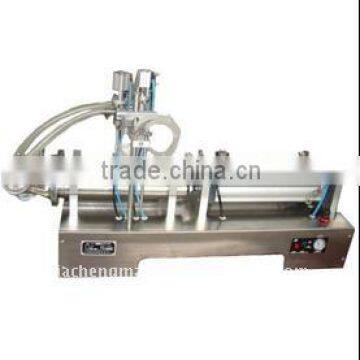

Small Fluid Filling Machine / Semi-Automatic Liquid Bottle Filling Machine
Working Principle
The machine works on the three-way principle to adjust the filling quantity that a cylinder drives a piston and a rolling valve to draw out and output the fluid, and then the magnetic switch controls the journey of the piston.
Features
Aesthetic design, compact structure and high filling accuracy
No leaking when turned off.
Pneumatic control system, easy to operate and maintain.
Contact parts are SS316 or SS304 stainless steel.
Equipped with a displacement indicator, higher accuracy measuring, stepless speed control.
Stable and smooth working
Technical Datasheet
Content |
Parameter |
Rating Air Pressure |
4-6kg |
Filling Speed |
0-35 Bottles / Min(1 nozzle);0-70Bottles/min(2 nozzle) |
Filling Accuracy |
±1% |
Model |
GFC-50 |
Filling Range |
50~500(ml) |
Optimum Filling Range |
200~500(ml) |
This series filler is used in foods, daily chemicals, agrochemicals, medicine,etc.
1. Air pressure stability, material uniformity and filling speed will affect the filling accuracy.
2. Materials, size of filling head and skills of operator will affect the filling speed.
3. This machine has two filling ways, foot and automatic, and they can be switched randomly.
4. This machine uses the extension valve for is wear-resisting, acid proof, the thermostable four fluorine material, when clean cannot at will strike, the collision.
Maintainance
1. The machine is made of stainless steel, please be careful when cleaning surface of machine. Do not use sharp tool to scrape the surface of machine.
2. Could choose alcohol to clean blot of machine surface.
3. The cylinder has been filled with lube oil before leaving factory, so please don’t take apart the cylinder to fill lube oil.
4. Hopper, stainless steel three-way valve and three-way conversion valve could take apart to clean. The seal ring should change in time.
Please feel free to contact me for more information.
