Specifications
1. automatic2.pneumatic
3. video Available
4. GMP requirement

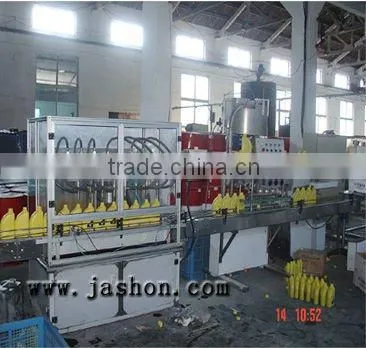

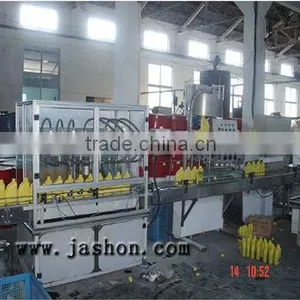

Automatic Linear engine oil filling Equipment
Products Description
This machine adopts linear filling type, electromechanical integration control(MITSUBISHI PLC), it has superior running performance.
It is mainly applicable to a variety of viscous, non-viscous, corrosive and non-corrosive liquids, and widely used in the quantitative small packages of vegetable oil, lubricants and chemical liquids, and routine chemical industries, etc.
It aim at auto-controlled by means of PLC programmable controller, kinds of induction device and air vat release, and completely meet GMP standard, simply operated. It could change different container for filling during short time so that it could reach several use with one machine.
Our Normal models:
Speed
ZXG-4(four nozzles) 16-18bottles/min
ZXG-6(six nozzles) 24-28bottles/min
ZXG-8(eight nozzles) 32-36bottles/min
ZXG-10(ten nozzles) 40-46bottles/min
ZXG-12(twelve nozzles) 48-56bottles/min
Technical Parameter:
Filling Scope |
7-70ml, 12-120ml, 25-250ml, 50-500ml, 100-1000ml, 1-5L |
Filling Speed |
|
Measure Precision |
<=+/-1% for 15ml, it is +/-5% |
Power |
500W |
Voltage |
380V 50HZ |
Air Pressure |
0.5Mpa |
Contact parts |
304stainless steel |
Electric configure: PLC(MITSUBISHI), TRANSDUCER(MITSUBISHI OR PANASONIC) ,SNESOR(SICK), Time Relay(Omron), Button and contactor(SCHNEIDER). Air Button(MERLINGERIN), touch screen (HITECH)
Trade Terms
DeliveryPort: Shanghai Port in China
Destination Port:
Payment term:30%T/T in advance, the balance 70% T/T before shipment or 100%T/T in advance
Insurance:
Delivery Time: In 45 days(Production time) after 30% T/T in advance being received, and the balance T/T have been received before shipment.
