Specifications
1. automatic oil gallon filling equipment2. Meet GMP

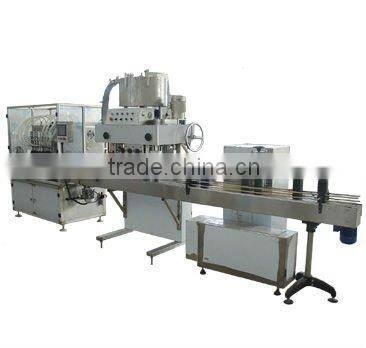

Fully Automatic oil Gallon filling equipment
Products Description
Linear Filling Machine can finish all the process from filling to send the barrel out automatically except loading barrels. Filling system adopt volumetric flowmeters to make sure the measure more convenience and nicety. Conveyor system control the transporting speed by machine to ensure that material won’t be outflow. And also use the way of descended oiling so that the material won’t spill. Meanwhile, it adopts vacuum recycling device to make sure the worktable is clean. It is suitable for kinds of bottle type to adjust the filling system height by turn handwheel and filling nozzle position with different bottle type. The process of adjustment is easy and reliable.
The system use the touch screen to control the machine so that manipulate can be more easy and directly. And also the screen could show working condition.
Our Normal models:
Speed
ZXG-4(four nozzles) 16-18bottles/min
ZXG-6(six nozzles) 24-28bottles/min
ZXG-8(eight nozzles) 32-36bottles/min
ZXG-10(ten nozzles) 40-46bottles/min
ZXG-12(twelve nozzles) 48-56bottles/min
Technical Parameter:
Filling Scope |
7-70ml, 12-120ml, 25-250ml, 50-500ml, 100-1000ml, 1-5L |
Filling Speed |
|
Measure Precision |
<=+/-1% for 15ml, it is +/-5% |
Power |
500W |
Voltage |
380V 50HZ |
Air Pressure |
0.5Mpa |
Contact parts |
304stainless steel |
Electric configure: PLC(MITSUBISHI), TRANSDUCER(MITSUBISHI OR PANASONIC) ,SNESOR(SICK), Time Relay(Omron), Button and contactor(SCHNEIDER). Air Button(MERLINGERIN), touch screen (HITECH)
For details, pls kindly contact me by Alibaba.
