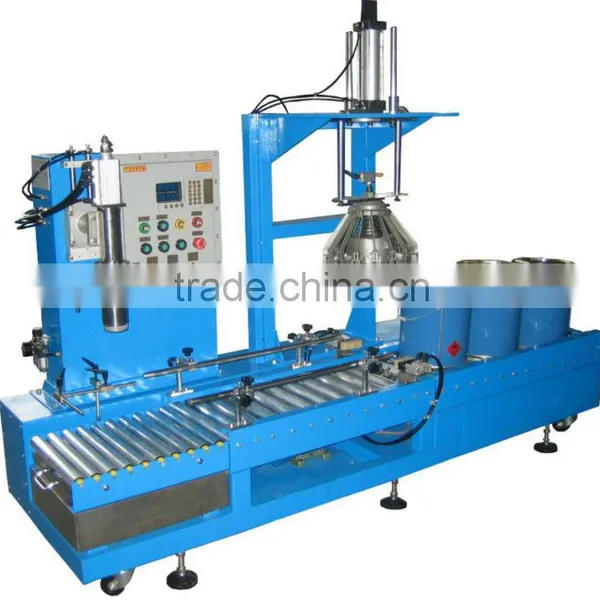

Painting Filling Machine

Specifications

Painting Filling Machine
Steady Performance
Guaranteed Quality
Competitive Price
Life Long Service With Low Maintenace Rate

Painting Filling Machine



Description

1. It adopts imported sensor, stability performance and with long life;

2. Computer controls weigh automatically, with high accuracy;

3. Double speed filling(In the beginning filling fast and slow when close target filling.),with high filling accuracy;

4. With a vacuum suction system and insure no drop;

5. Can press the button arbitrarily to stop the machine, easy to clean piping and parking the machine urgently;

6. It can insert the mouth automatically and save time and manual work;

7. It can fill high temperature liquid, decay liquid and high sticky liquid.



Technical Parameter

Model: GFE-30T

1) Voltage: 220/380V      50/60Hz

2) Power: 100W

3) Air Supply Pressure: 0.5MPA

4) Filling Speed: 2-12 Pail /Minute

5) Filling Volume: 5—20Kg/Pail

6) Filling Precision: ±30g

7) Material Inlet Pressure: 0.01—0.1MPA

8) Weight: 260Kg

9) Overall Size:  2400×700×1500mm



For more technical information,pls feel free contact us.
