1.Fully Automatic Linear engine oil filling line2. Video Available
3.Easy to maintenance
Fully Automatic Linear Lube oil filling line
Automatic filling machine--Capping screw machine--Aluminum foil sealing machine Automatic filling line is a special equipment which filling kinds of liquid and high viscous liquid with paste type(such as shampoo, detergent, bath wash, lubricant, dairy products and so on) into container. This line is suitable for filling of square bottle, round bottle and ellipse bottle and widely used in medicine, foods, pesticides, and chemical industry and so on. It adopt linear filling so that it could save cost and get safe guarantee. Conveyor line load the container into filling machine by unscrambler. Filling machine push down the liquid into container by piston(It could adjust piston process to meet filling volume). The containers will be send into capping screw machine after filling. Sealing the containers through induction aluminum foil sealing machine. Then the containers will be sent to labeling machine and inkjet coding machine. This line is convenient and easy for cleaning when change different material. Filling machine adopts piston filling principle and control bottle in, fix-up position, filling by PLC. This machine is according with GMP standard and suitable for kinds of ration filling.
Characteristic:
1.Adopt volumetric injection pump to fill high precision,aslo fill various viscosity liquid.Easy to dismantle pump structure,convinent to clean and sterilize.
2.The piston ring of volumetric injection use different material of silicone, pollyflon or other kinds according to liquid characteristic,use ceramic pump in special industry.
3.PLC control system,frequency conversion adjusting speed,high degree automatization.
4.no bottle,no fill,auto count the quantity
5.filling quantity all pumps is adjusted in a lump,minim adjustable for each pump.
6.esay and quick operate
7.filling sysytem has the funtion of shrinking,no drop leak.
8.applicable to various sizes of container,easy adjusting,short cost
9.the whole machine is designed according to requirement of GMP
Speed
ZXG-4(four nozzles) 16-18bottles/min
ZXG-6(six nozzles) 24-28bottles/min
ZXG-8(eight nozzles) 32-36bottles/min
ZXG-10(ten nozzles) 40-46bottles/min
ZXG-12(twelve nozzles) 48-56bottles/min
Filling Process:
Manual bottle Loading--Automatic filling--Automatic caps loading--Automatic Capping Screw---Automatic Sealing--Automatic Labeling Machine
Technical Parameter:
Filling Scope |
7-70ml,12-120ml,25-250ml,50-500ml,100-1000ml,200-2000ml, 1-5L |
Filling Speed |
|
Measure Precision |
<=1% |
Power |
500W |
Voltage |
380V 50HZ |
Air Pressure |
0.5Mpa |
Contact parts |
304stainless steel |

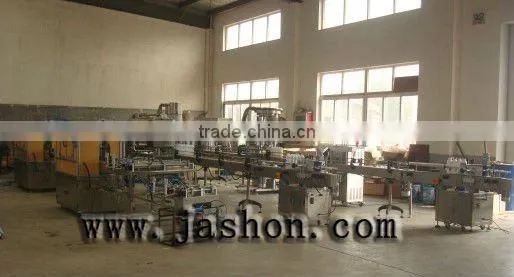

Fully Automatic Filling line under 5L as follows

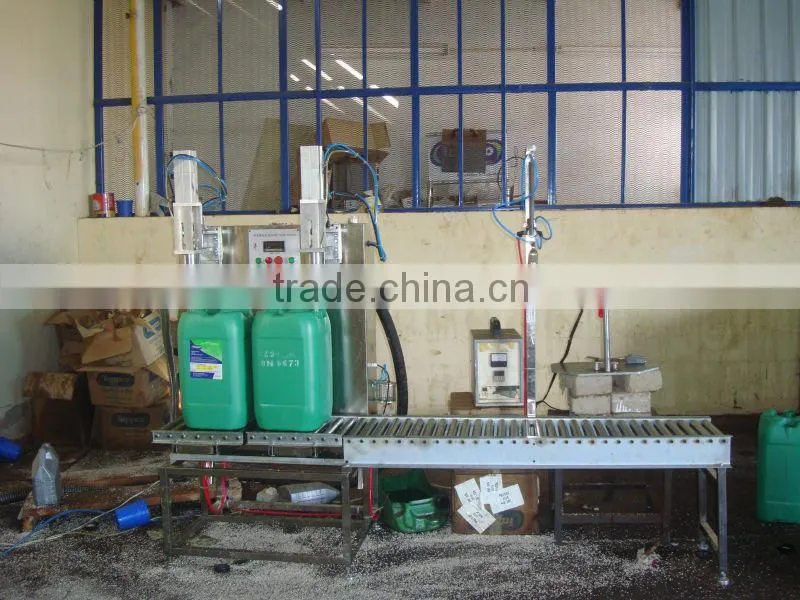

Semi-automatic filling line under 100L

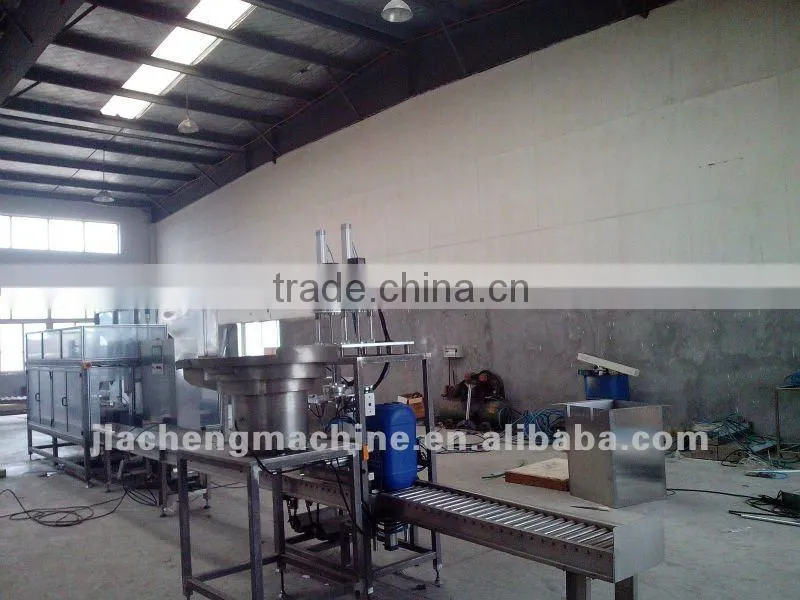

Automatic filling line under 100L
drum filling line as follows
