Semi-Automatic Sauce Filling MachineSteady Performance
Guaranteed Quality
Competitive Price
Life Long Service

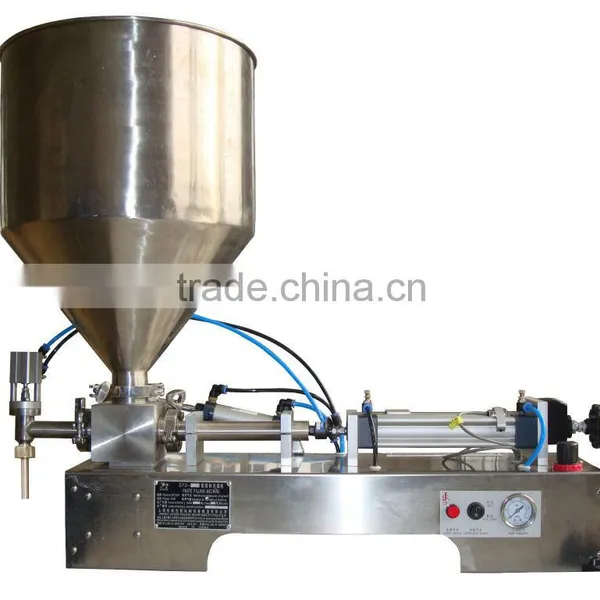

Semi-Automatic Sauce Filling Machine
Suitable filling semi-paste, paste, such as honey, tomato sauce, chili sauce, syrups,
Could be install stirrer or heating system if required.
Filling Nozzle could be one or two, depend on requirements.
Apply to many kind container, such as cup, bottle, small mouth bottle, tube, some other irregular container.
Features
Aesthetics figure and compact design
No leaking when turned off.
All contact parts are made of stainless steel 304. ( could be SS316 if required. )
Pneumatic control system, easy to operate and maintain
Equipped with a displacement indicator, higher accuracy measuring, stepless speed control.
Adjustable screw-feet , hand wheels and caster mounted for portability
Stable and smooth working
Model GFD-25
Power Pneumatic
Air Pressure 4-6kg
Filling Speed 0-35 Bottles /Min
Filling Accuracy ±1%
Filling Range 25~250 (ml)
Optimum Filling Range 100~250(ml)
Working Principle
This fillin machine measures and delivers the product to the container by the action of a single piston for filling head. On the intake stroke, the piston draws the product from the supply tank or hopper, through the upper check-valve, and into the cylinder of the piston chamber. On the down stroke, the product flows through the lower check-valve , and the product is forced from the chamber through the valve and into the container.
For more information, pls contact us.
welcome visit our factory.
