Specifications
single barrel volume:120~200kg/drum ,4drums/palletfilling precision:+/-0.2%
filling speed:40-60 barrels/houraa200

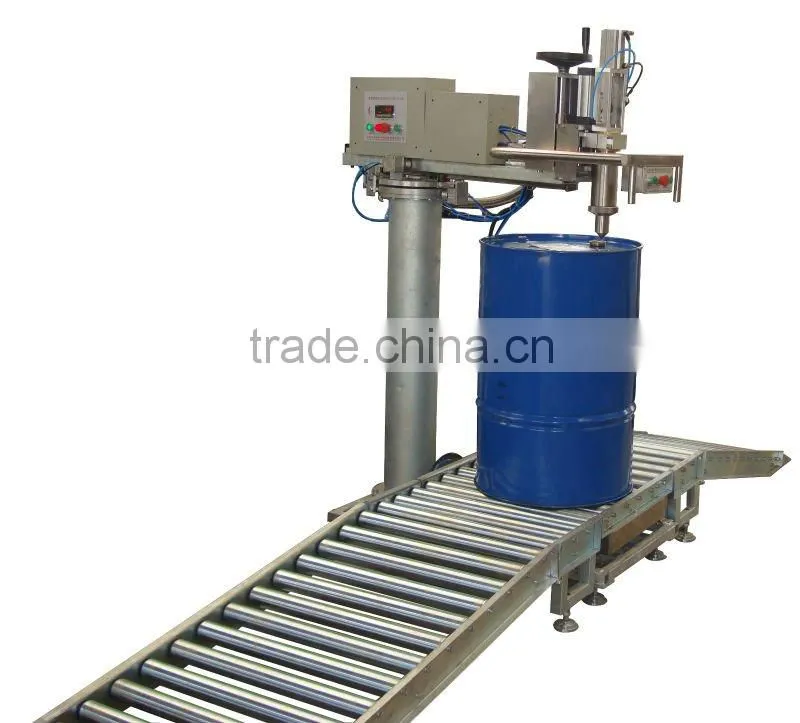

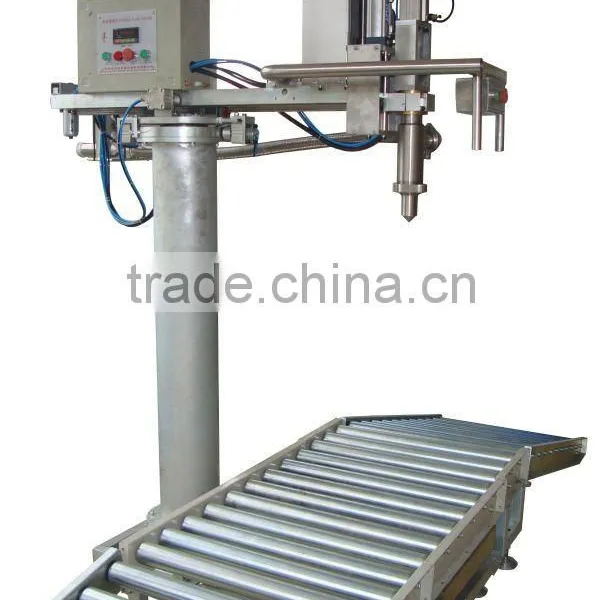

200L Single head(4 drums)Filling machine
1,working principle:
This equipment adopts single head 4 position semi-automatic form (meal packaging is single head simplex bit), need to artificial rotation and push bit operation arm found mouth positioning, filling and weighing for automatic completion, after the artificial use pneumatic tools will barrelhead tightening and clip good FangWeiGai. Weighing system uses accuracy sensors and weighing instrument, with automatic fall correction and zero automatic tracking etc. Functions (see weighing instrument shows), can be based on user need to select the net weight or gross weight way filling, filling system adopts the fine filling way, to ensure that the filling accuracy and speed, can realize automatic and manual control filling action, fast and more convenient, intuitive. At the same time also with vacuum suction device, ensure working mesa clean.
2,technology parameter(single set):
1.single barrel volume:120~200kg/drum 4drums/pallet
2.filling precision:≤±0.2%
3.filling speed:40-60 barrels/hour(200liter,20centigrade)
4.air supply:0.45~0.8MPa
5.electricity:AC220V 50Hz
6.air consumption:<0.5 cube/hour(single set).
7.elec consumption:<0.2KW(single set).
9.weight:450Kg
10.range of application:can be widely used in daily cosmetic, toothpaste, chemicals, medicine, foods, lubricants and other industries.
11.Price:22300$
12.Delivery Port: Shanghai Port in China
13.Payment term:30%T/T in advance, the balance 70% T/T before shipment or 100% T/T inadvance
14.Delivery Time: In 30 days(Production time) after 30% T/T in advance being received, and the balance 70%T/T have been received before shipment.
15. Packaging : Common wooden case. ( Or As Customer Requirement )
16.Warranty : One year warranty (Include Free Spare Parts)
17.After Sale Service : 12 months guarantee and life-long technical support.
