Motor Bikes Engine Oil Filling Machine

Motor Bikes Engine Oil Filling Machine photo-1
US$ 2,000 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Power 1 kw
Place of Origin Shanghai, China
Brand Name Hujia
Model Number ZXRY-6

Specifications

ful-auto motor bikes engine oil filler
adjusted filling nozzles,speed etc
good quality
long life service
factory price

Motor Bikes Engine Oil Filling Machine

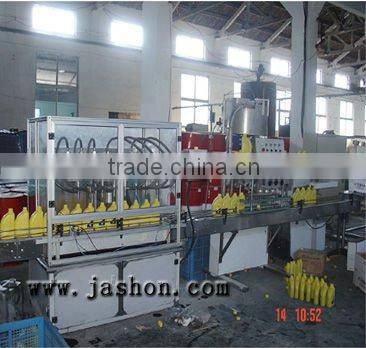

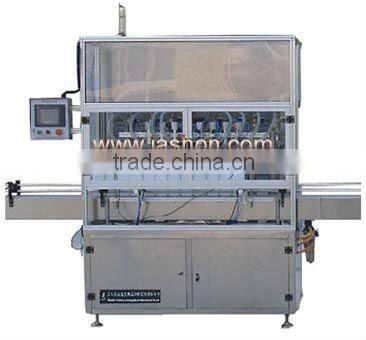

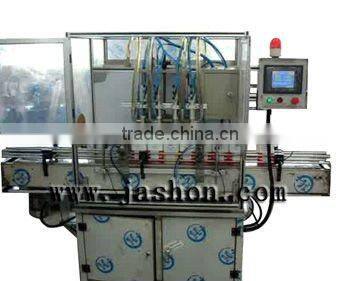

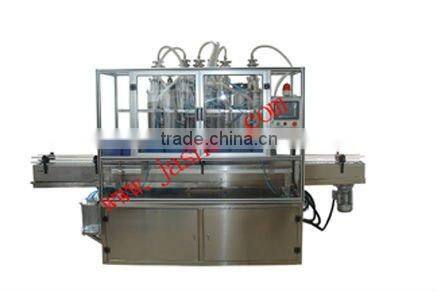

Automatic linear Filling Machine is widely used in packaging pipeline for medicine.lubricants,oil,chemical,foods and pesticides industry and so on.It adopts Frequency controlled drive,and transportation exit is adjustable,so it could meet different packaging machinery pipeline request.

It uses PLC programmable control,with 5.7 inches touch-screen human-machine interface system.Also adopts piston controlling filling material flow to meet the request of kinds of measurement filling.Structure compact,used for different bottles and changeable bottle.We adjust the machine instend of replacement parts when we change bottle condition.It adopts mainly machinery linear motion way for design.



Electric configure: PLC(MITSUBISHI), TRANSDUCER(MITSUBISHI OR PANASONIC) ,SNESOR(SICK), Time Relay(Omron), Button and contactor(SCHNEIDER). Air Button(MERLINGERIN), touch screen (HITECH).



Technical Parameter

Filling Scope

7-70ml, 12-120ml, 25-250ml, 50-500ml, 100-1000ml, 400-4000ml, 500ML-5L

Filling Speed

 24-28bottles/min(six nozzles,for 1L)

Measure Precision

<=1%

Power

500W

Voltage

380V  50HZ

Air Pressure

0.5Mpa

Contact parts

304stainless steel(ss 316 as choice)



We are a professional lube oil filling machine manufacturer with rich experience for over 20 years.

Your special requirements can be meet by tailored the machine.

Please feel free to contact me for more information.

Motor Bikes Engine Oil Filling MachineMotor Bikes Engine Oil Filling MachineMotor Bikes Engine Oil Filling MachineMotor Bikes Engine Oil Filling Machine
