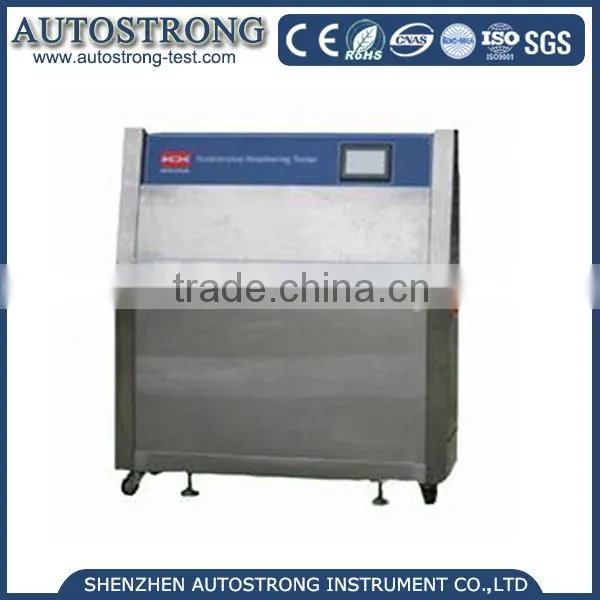

UV lamp fabric aging test chamber
1.Reference:
The Aging testing device can simulate the sun, rain and dew which are harmful to the material, UV using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested materials are placed in a certain environment which the light and moisture are alternating. The materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: Bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.
2.Standard:
ASTM D4329,D499,D4587,D5208,G154,G53,ISO11507,En534,EN1062-4,BS2782,JIS D0205,SAE J2020
3.Technical parameters:
Model |
AUTO-UV(upgrade) |
AUTO-UV |
|
Parameter |
Internal size mm |
D450×W1160×H500 |
|
External size mm |
D600×W1350×H1180 |
||
Temperature range |
RT+10°C~100°C |
||
Humidity range |
65%R.H~98%R.H |
≥70%R.H |
|
Water spray cycle |
0~999.999min adjustable |
|
|
Cycle of light or dark |
99.99h adjustable (eg:light 8h,dark 4h) |
||
|
Wave length
|
UVA280~315nm;UVB315~400nm(for choose) |
||
Radiation intensity |
0.55W/m2~1.8W/m2 adjustable |
0.55W/m2 |
|
UV Tube |
USA Q-PLAB |
China product |
|
Standard specimen |
75mm×150mm |
||
Thermometer |
100mm×75mm×2mm |
||
Material |
Internal material |
SUS304 stainless steel |
|
Control system |
Controller |
7 inch color touch screen controller |
|
Heating method |
High quality NI-CR alloy electric heater +PID Automatic constant temperature control |
||
Power |
AC 2ψ220V 60/50Hz |
||
4. Packing&shipping
Company profile:
AUTOSTRONG is a reputed manufacturer of Laboratory safety test equipments and has engaged in Research &Development and Manufacture test equipments for many years. All our products are strictly designed and manufactured in accordance with IEC,CE,EN,VDE,ASTM,ISO and other international standards.
If you have any question,please feel free contact me
