High Strength FRP Grating For Working Platform
FRP Grating Introduction

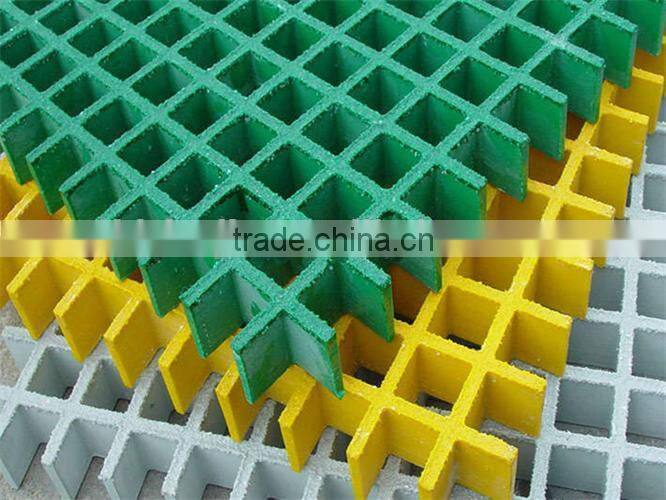

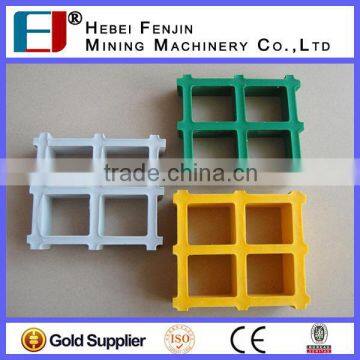

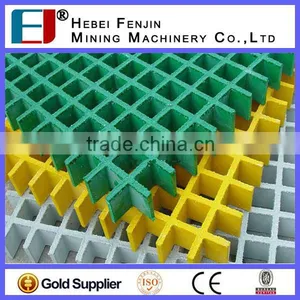

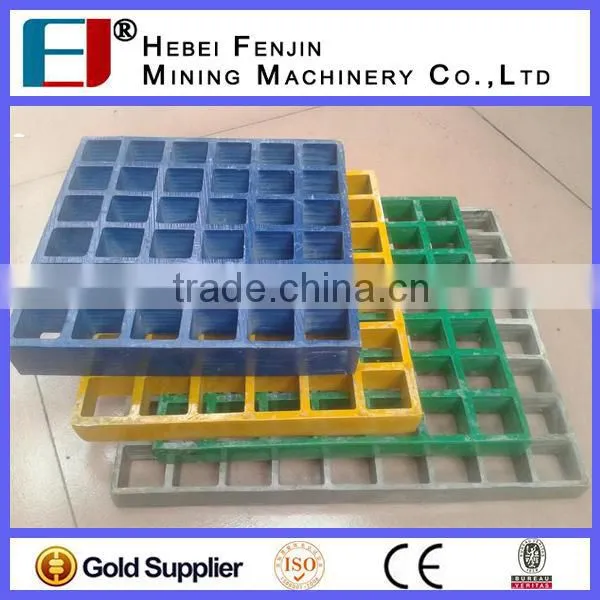

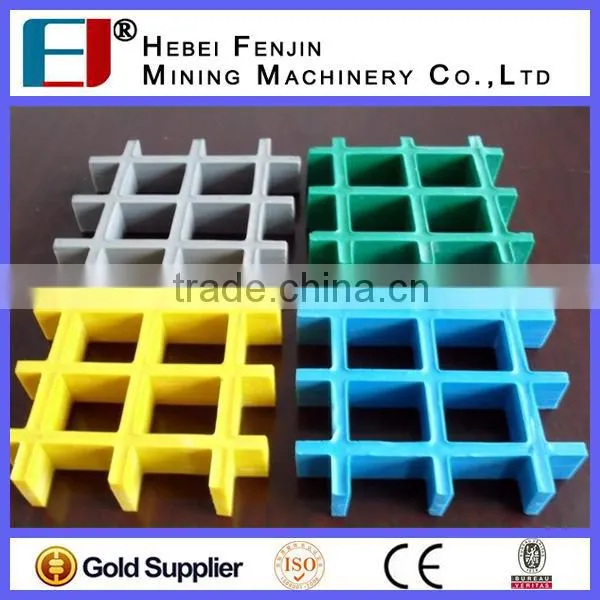

FRP Molded Grating is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in a special metal mold. It provides properties of light weight, high strength, corrosion resistance, fire resistance and anti-skid. FRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.
FRP Grating Standard Panel
|
Thickness (mm) |
Panel size (mm) |
Mesh size (mm) |
Bar thick (mm) |
Panel Wt.per m2 |
Weight (Kg) |
|---|---|---|---|---|---|
| 25 | 1007x2007 | 40x40 | 6.5 | 12.8Kg | 25.8 |
| 1220x3660 | 38x38 | 6.5 | 13.4Kg | 60.0 | |
| 1007x4007 | 40x40 | 6.5 | 12.8Kg | 52.0 | |
| 1220x3660 | 25x100 | 6.5 | 13.8Kg | 62.0 | |
| 1220x3660 | 38x38/19x19 | 6.5 | 16.8Kg | 75.1 | |
| 30 | 1007x4007 | 40x40 | 6.5 | 14.8Kg | 60.0 |
| 1220x3660 | 38x38 | 6.5 | 14.7Kg | 65.6 | |
| 1220x3660 | 38x38/19x19 | 6.5 | 18.4Kg | 82.2 | |
| 38 | 1220x3660 | 38x38 | 6.9 | 18.7Kg | 83.5 |
| 1007x4007 | 40x40 | 6.9 | 18.8Kg | 76.0 | |
| 1220x3660 | 38.1x152.4 | 6.9 | 16.0Kg | 71.5 | |
| 1220x3660 | 38x38/19x19 | 6.9 | 23.5Kg | 105.0 | |
| 40 | 1007x3007 | 40x40 | 7.0 | 19.8Kg | 60.0 |
| 1007x4007 | 40x40 | 7.0 | 19.8Kg | 79.9 | |
| 50 | 1220x3660 | 50x50 | 8.0 | 21.3Kg | 95.1 |
FRP Grating Advantages
1) Coated with prevent aging layer
2) Excellent insulating performance
3) No maintenance
4) High strength
5) Long service life
6) Easy installaion
FRP Grating Installation Method
Type "M" Saddle Clips: secure molded or pultruded panels to a support using two adjacent bearing bars.
Type "C" End Panel Clips: simplified mechanical method to connect adjacent molded fibergrate panels.
Type "L" Hold Down Clips: secure molded grating panels to a support using one bearing bar

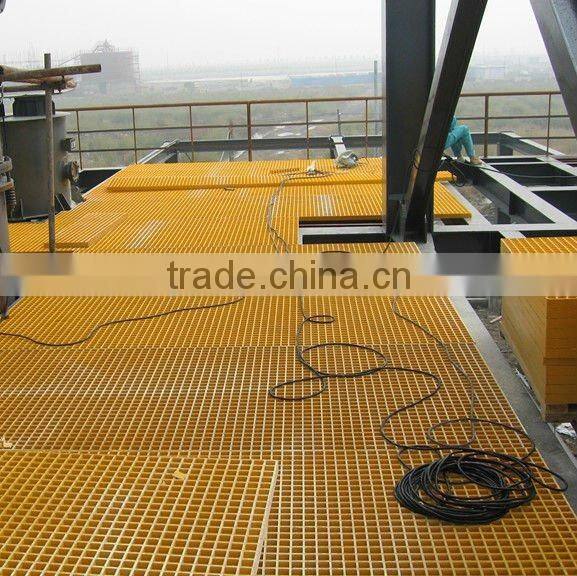

FRP Grating Applications
---Chemical & Petrochemical Plants
---Food & Beverage Plants
---Oil & Gas, Offshore Rig & Power Plants
---Water Treatment Plants & Water Pools
---Ramp, Scaffold, Railway Footpath
---Operating Platforms & Trench Covers
---Walkways, Footbridges & Staircase
---Architecture & Construction Industry
FRP Grating Certifications
1 ISO Management and BV audited company
2 Various style of FRP products for you choose, like frp water tank, frp grating, frp cooling tower, frp profiles, etc
3 We offer competitive price with good quality products
4 We have the most convenient transport and prompt delivery.
5 We supply good after-sales service, we will follow up each situation, if have problems, we will find out the reason and deal with positively.
Q: 1. Can I have a sample order?
A: Yes, sample is available. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Usually 7 days or according to quantity
Q: 3. What is the minimum order quantity?
A: Our MOQ is 50 square meters
Q: 4. What is the price policy of your company?
A: The price is different according to the order quantity , the more the cheaper.
For more detailed information, you can contact us freely
Q: 5. What is the package?
A: We offer pallets, wooden case, steel frame packaging, or according to customer's demand
Q: 6. Can I visit your company?
A: Welcome, look forward to your arrival and we will pick up you from Beijing airport and lead you to visit our factory
