Trench Cover Fiberglass Grating, Concave Surface FRP Molded Grating
Trench Cover Fiberglass Grating Introduction
Trench cover fiberglass grating is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in a special metal mold. It provides properties of light weight, high strength, corrosion resistance, fire resistance and anti-skid. Plastic grids is widely used in oil industry, power engineering, water & waste water treatment,ocean survey
as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.
Trench Cover Fiberglass Grating Standard Panel
Item |
Thickness mm |
Mesh Size mm*mm |
Panel Size mm*mm |
Weight Kg per square |
1 |
15 |
38*38 |
1223*3660 |
7 |
2 |
15 |
50*50 |
1223*3660 |
6.5 |
3 |
25 |
25*100 |
1010*3010 |
12.4 |
4 |
25 |
19*19 |
1223*3660 |
12.5 |
5 |
30 |
19*19 |
1223*3660 |
21.5 |
6 |
30 |
38*38 |
1223*4040 |
15.1 |
7 |
38 |
19*19 |
1223*3660 |
22.8 |
8 |
38 |
38*38 |
1000*4040 |
19.5 |
9 |
38 |
38*38 |
1223*3660 |
19.5 |
10 |
40 |
40*40 |
1250*3690 |
19.3 |
11 |
50 |
50*50 |
1223*3660 |
21.5 |

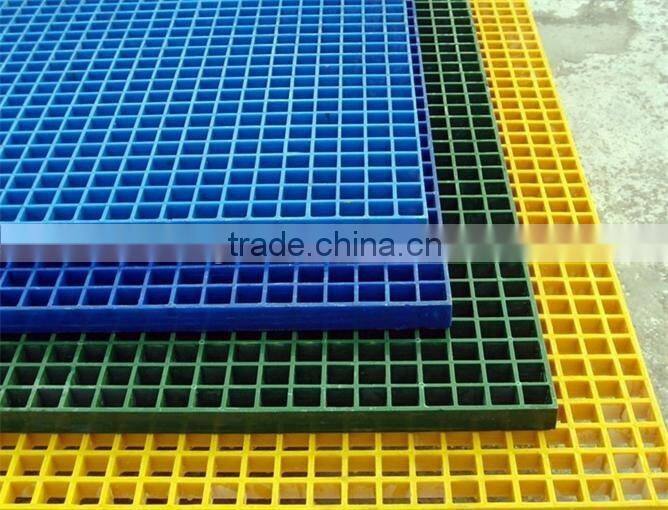

Trench Cover Fiberglass Grating Surface
Trench Cover Fiberglass Grating Advantages
1.Light weight: its specific gravity is about 1.8, its weight is only 1/4 of the steel, the aluminum 2/3;
2.High strength: its strength is ten times rigid PVC and absolute strength much higher than aluminum,reached the level of ordinary steel;
3.Anti-Corrosion: it stainless steel, no mold, no rot, no paint, the ability of a lot of gas, corrosive liquidmedium;
4.Fatigue resistance: FRP grid have some flexibility, which makes people long to feel comfortable in the above work, a working platform, reducing the tension staff legs and back, increasing the comfort of working to improve work efficiency, get the human engineering scientist recommended;
5. Good overall economic efficiency: compared with ordinary carbon steel, FRP grating low overall costs, although its one-time investment is higher than ordinary steel, because of its long life, generally usetwo years, and no maintenance, so its economic benefits vastly superior carbon steel;
7. Easy installation: use of FRP grid so that component weight greatly reduced, thus reducing the weight of the supporting structure, without the use of lifting equipment installation, both saving and convenient;
8. Security: not produced due to collisions during installation and use in spark FRP grating; particularly suitable for use in explosive environments, in addition, with non-slip surface grid prevents slipping, reduce accidents.
Trench Cover Fiberglass Grating Installation Method

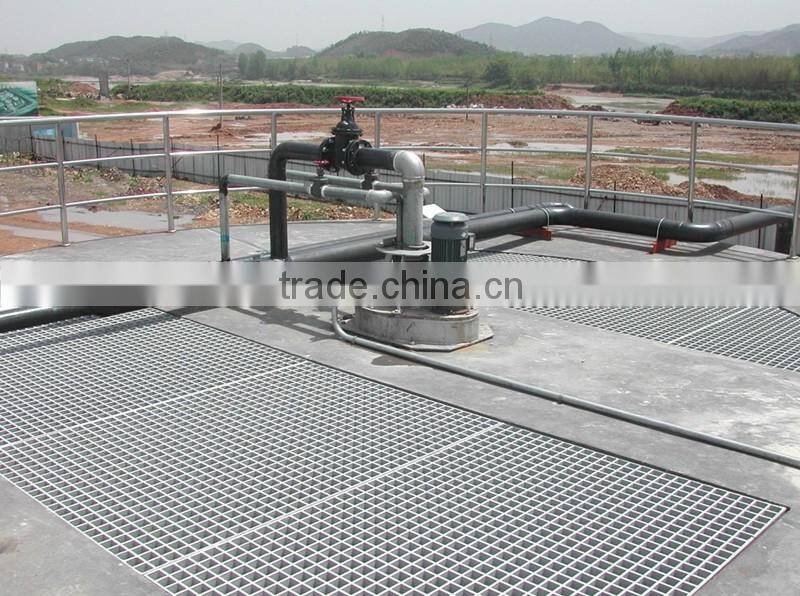

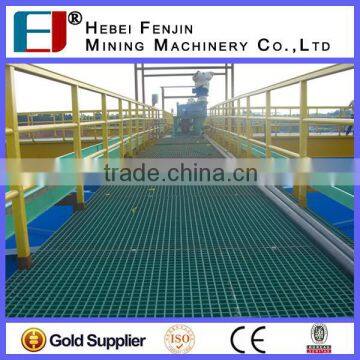

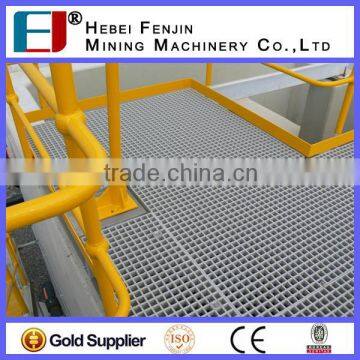

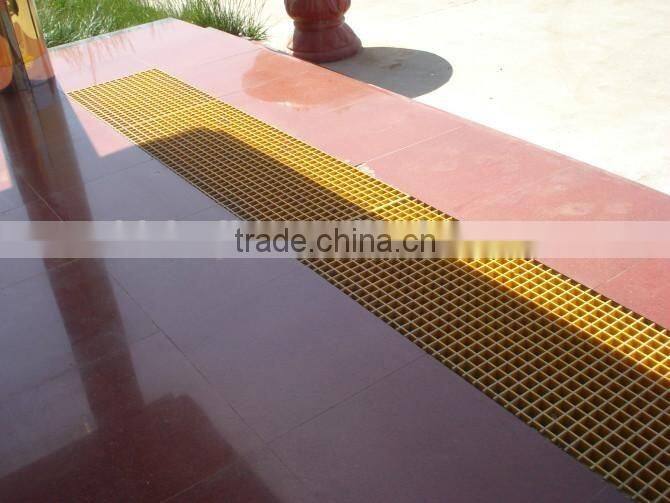

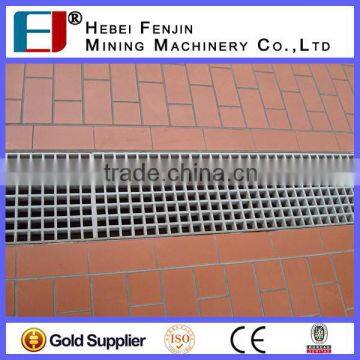

Trench Cover Fiberglass Grating Applications
---Bridge walkways
---Platforms
---Trench Covers
---Walkways
---Pedestrian Ramps
---Decks and Patios
Trench Cover Fiberglass Grating Production Line
Trench Cover Fiberglass Grating Packaging & Shipping
1 ISO Management and BV audited company
2 Various style of FRP products for you choose, like frp water tank, frp grating, frp cooling tower, frp profiles, etc
3 We offer competitive price with good quality products
4 We have the most convenient transport and prompt delivery.
5 We supply good after-sales service, we will follow up each situation, if have problems, we will find out the reason and deal with positively.
Q: 1. Can I have a sample order?
A: Yes, sample is available. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Usually 7 days or according to quantity
Q: 3. What is the minimum order quantity?
A: Our MOQ is 50 square meters
Q: 4. What is the price policy of your company?
A: The price is different according to the order quantity , the more the cheaper.
For more detailed information, you can contact us freely
Q: 5. What is the package?
A: We offer pallets, wooden case, steel frame packaging, or according to customer's demand
Q: 6. Can I visit your company?
A: Welcome, look forward to your arrival and we will pick up you from Beijing airport and lead you to visit our factory
