38*38mm Mesh Size 30mm Thickness FRP Grille/Fiber Reinforced Plastic Grating

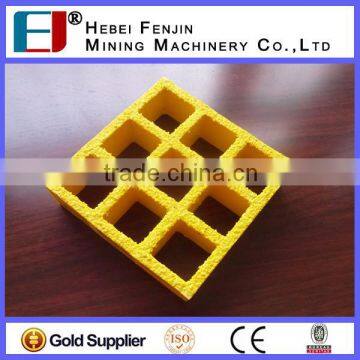

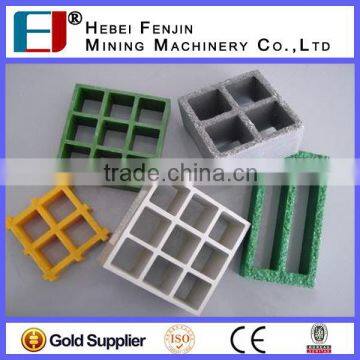

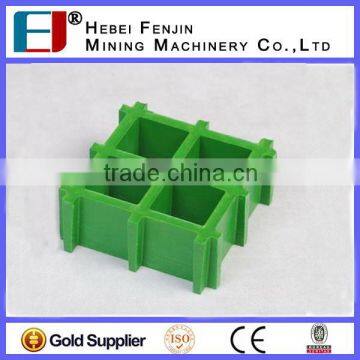

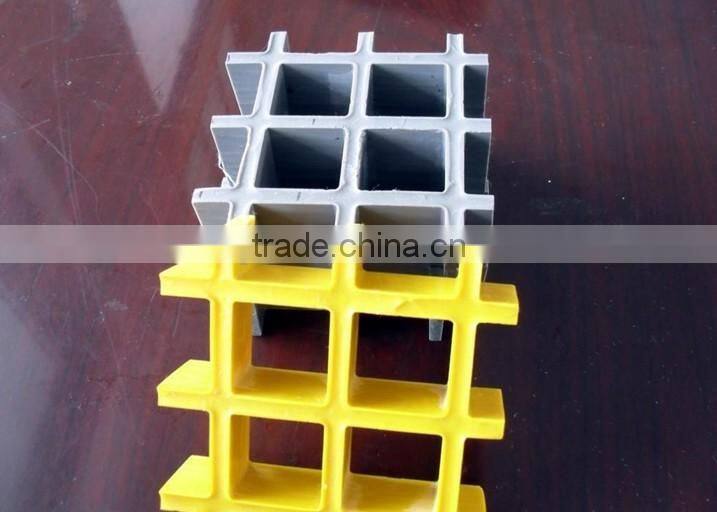

38x38mm FRP Grating Introduction
38x38mm frp grating is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in a special metal mold. It provides properties of light weight, high strength, corrosion resistance, fire resistance and anti-skid. FRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.
38x38mm FRP Grating Standard Panel
|
Thickness (mm) |
Panel size (mm) |
Mesh size (mm) |
Bar thick (mm) |
Panel Wt.per m2 |
Weight (Kg) |
|---|---|---|---|---|---|
| 25 | 1007x2007 | 40x40 | 6.5 | 12.8Kg | 25.8 |
| 1220x3660 | 38x38 | 6.5 | 13.4Kg | 60.0 | |
| 1007x4007 | 40x40 | 6.5 | 12.8Kg | 52.0 | |
| 1220x3660 | 25x100 | 6.5 | 13.8Kg | 62.0 | |
| 1220x3660 | 38x38/19x19 | 6.5 | 16.8Kg | 75.1 | |
| 30 | 1007x4007 | 40x40 | 6.5 | 14.8Kg | 60.0 |
| 1220x3660 | 38x38 | 6.5 | 14.7Kg | 65.6 | |
| 1220x3660 | 38x38/19x19 | 6.5 | 18.4Kg | 82.2 | |
| 38 | 1220x3660 | 38x38 | 6.9 | 18.7Kg | 83.5 |
| 1007x4007 | 40x40 | 6.9 | 18.8Kg | 76.0 | |
| 1220x3660 | 38.1x152.4 | 6.9 | 16.0Kg | 71.5 | |
| 1220x3660 | 38x38/19x19 | 6.9 | 23.5Kg | 105.0 | |
| 40 | 1007x3007 | 40x40 | 7.0 | 19.8Kg | 60.0 |
| 1007x4007 | 40x40 | 7.0 | 19.8Kg | 79.9 | |
| 50 | 1220x3660 | 50x50 | 8.0 | 21.3Kg | 95.1 |
38x38mm FRP Grating Advantages
38x38mm FRP Grating Installation Method
Type "M" Saddle Clips: secure molded or pultruded panels to a support using two adjacent bearing bars.
Type "C" End Panel Clips: simplified mechanical method to connect adjacent molded fibergrate panels.
Type "L" Hold Down Clips: secure molded grating panels to a support using one bearing bar
38x38mm FRP Grating Applications
---Chemical & Petrochemical Plants
---Food & Beverage Plants
---Oil & Gas, Offshore Rig & Power Plants
---Water Treatment Plants & Water Pools
---Ramp, Scaffold, Railway Footpath
---Operating Platforms & Trench Covers
---Walkways, Footbridges & Staircase
---Architecture & Construction Industry

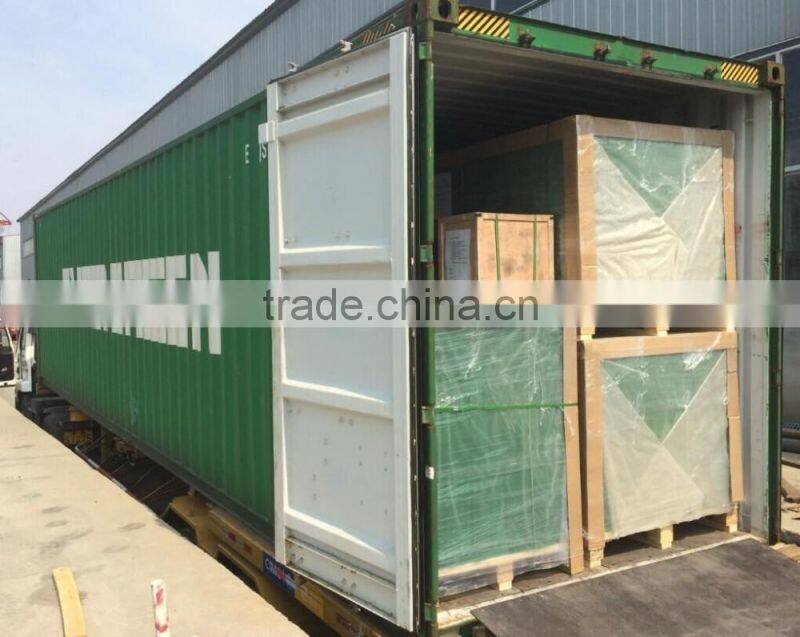

38x38mm FRP Grating Packaging & Shipping
38x38mm FRP Grating Production Line
1 ISO Management and BV audited company
2 Various style of FRP products for you choose, like frp water tank, frp grating, frp cooling tower, frp profiles, etc
3 We offer competitive price with good quality products
4 We have the most convenient transport and prompt delivery.
5 We supply good after-sales service, we will follow up each situation, if have problems, we will find out the reason and deal with positively.
Q: 1. Can I have a sample order?
A: Yes, sample is available. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Usually 7 days or according to quantity
Q: 3. What is the minimum order quantity?
A: Our MOQ is 50 square meters
Q: 4. What is the price policy of your company?
A: The price is different according to the order quantity , the more the cheaper.
For more detailed information, you can contact us freely
Q: 5. What is the package?
A: We offer pallets, wooden case, steel frame packaging, or according to customer's demand
Q: 6. Can I visit your company?
A: Welcome, look forward to your arrival and we will pick up you from Beijing airport and lead you to visit our factory
