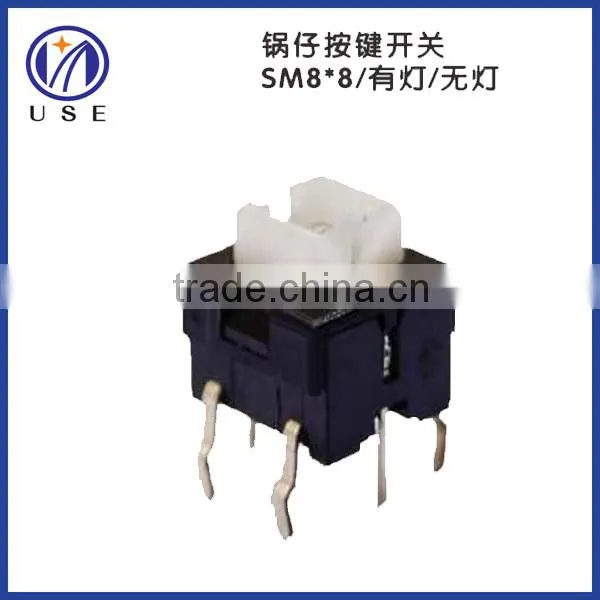

8mm touch/ tact switch with light
1. GENERAL
1-1 Scope : This specification covers the requirements for single key switch which no keytop.
(Tact switch : mechanical contact)
1-2 Operating Temperature Range :
-20℃ to 70℃ (normal humidity , normal press)
1-3 Storage Temperature Range :
-30℃ to 80℃ (normal humidity , normal press)
1-4 Test Condition
Test and measurements shall be made in the following standard conditions
Unless otherwise specified.
Normal temperature ( temperature 5 to 35℃ )
Normal humidity (relative humidity 45 to 85% )
Normal pressure (pressure 860 to 1060 m bars )
In case any question arises from the judgment made , tests shall be conducted
In the following conditions .
Temperature ( 20 ± 2℃ )
Relative humidity ( 65 ± 5% )
2. APPEARANCE , STYLE , AND DIMENSIONS
2.1 Appearance : There shall be no defects that affect the serviceability of the product.

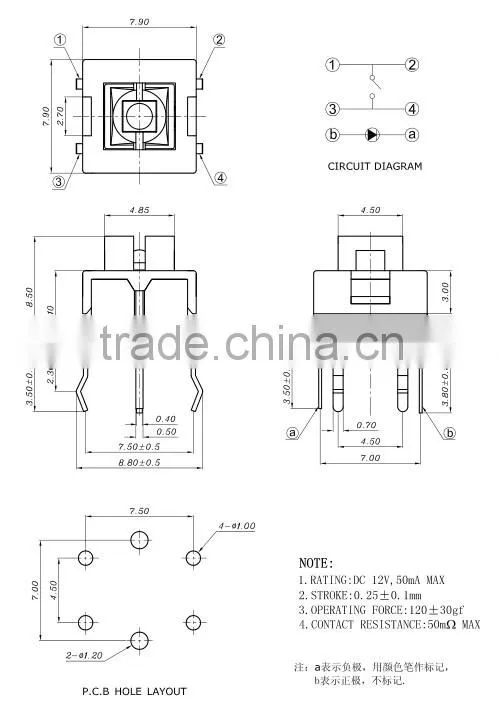

2.2 Style and dimensions : Shall conform to the assembly drawings .
3. TYPE OF ACTUATION : Tactile feed back
4. CONTACT APPANGEMENT : 1 pole 1 throws
(Detail of contact arrangement are given in the assembly
drawings .)
5. RATINGS
5.1 Switch Assembly : Maximum ratings DC 12V 50mA
1. GENERAL
1-1 Scope : This specification covers the requirements for single key switch which no keytop.
(Tact switch : mechanical contact)
1-2 Operating Temperature Range :
-20℃ to 70℃ (normal humidity , normal press)
1-3 Storage Temperature Range :
-30℃ to 80℃ (normal humidity , normal press)
1-4 Test Condition
Test and measurements shall be made in the following standard conditions
Unless otherwise specified.
Normal temperature ( temperature 5 to 35℃ )
Normal humidity (relative humidity 45 to 85% )
Normal pressure (pressure 860 to 1060 m bars )
In case any question arises from the judgment made , tests shall be conducted
In the following conditions .
Temperature ( 20 ± 2℃ )
Relative humidity ( 65 ± 5% )
2. APPEARANCE , STYLE , AND DIMENSIONS
2.1 Appearance : There shall be no defects that affect the serviceability of the product.
2.2 Style and dimensions : Shall conform to the assembly drawings .
3. TYPE OF ACTUATION : Tactile feed back
4. CONTACT APPANGEMENT : 1 pole 1 throws
(Detail of contact arrangement are given in the assembly
drawings .)
5. RATINGS
5.1 Switch Assembly : Maximum ratings DC 12V 50mA
Safe package, shipping by DHL, FedEx, UPS, etc.
1>Professinal manufacture and specilizing in rotary encoder and potentiometer for 13 years.
2> ISO9001:2008 manufactory,custom as your demand,we are sure to make a great manufacturing for you.
3>Quick and exact lead time.
4>We have QC team for every procedure and 100% satisfaction guaranteed.
5>OEM and ODM is welcome
6>Any questions and requirements ,we will reply you within 24 hours.
Dongguan Unionstar Electronic Co., Ltd was established in 2001 in Dongguan City, Guangdong Province, China. Specialized in encoders, rotary encoders, rotary encoder switches, multi-way rotary switches, tact switches, potentiometers, etc. They are widly used in loudspeckers, DVD player, car audio and vedio, GPS, radio, coffee machine, cooker, medical equipment, sport equipment, etc. In order to keep improving the quality of our products, we have been awarded the certificate of ISO9001:2008, and will offer our customers the best quality products and services.
