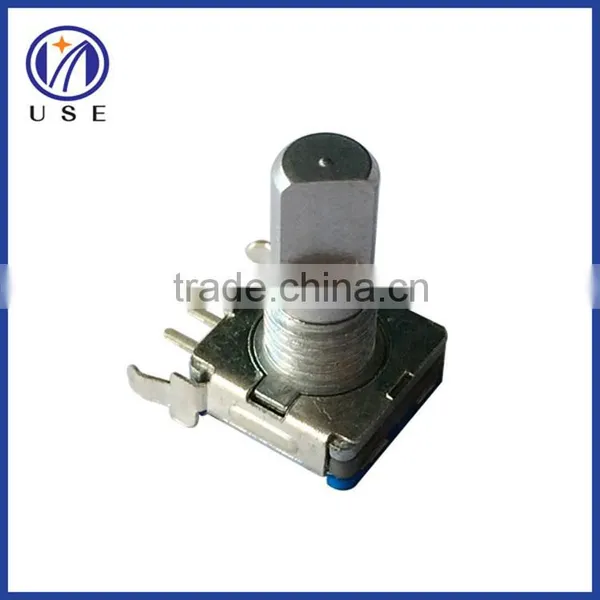

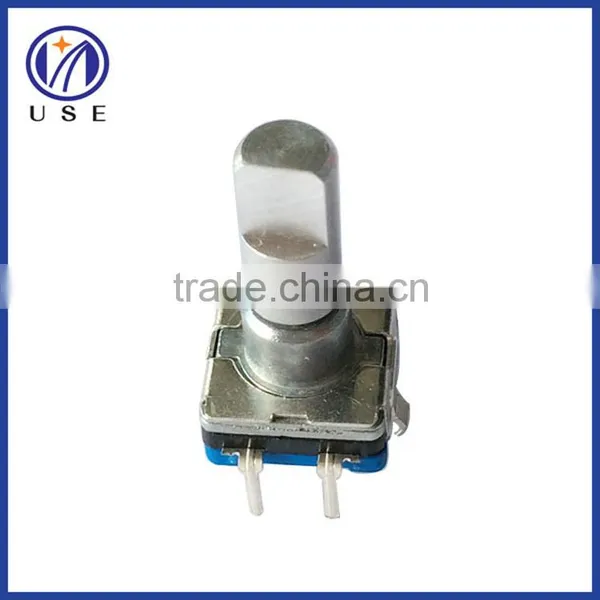

11mm rotary encoder for car DVD player switch, audio switch
11MM with switch encoder, pin type, mounting height 4.5MM, 5MM threadless sleeve, semi- circular grooved iron handle, shaft length 19.5MM, 20 pulses of 20 position,is Positive wave.
1.General
1.1 Scope
This specification applies to 12mm size low-profile rotary encoder(incremental type),for microscopic current circuits,used in electronic equipment
1.2 Standard atmospheric conditions
Unless otherwise specified,the standard range of atmospheric conditions for making measurements and test is as following limits:
Ambient temperature:15 to 35
Relative humidity:25% to 85%
Air pressure: 86kpa to 106kpa
1.3 Operating temperature range:-10 to 70
1.4 Storage temperature range: -40 to +85
2.Construction
3. Rating
Rated voltage: DC 5V
Maximum operating current (resistive load)
Each lead: 0.5mA(MAX 5mA; MIN 0.5mA)
Common lead: lmA(MAX 10mA; MIN 0.5mA)
4.Application Nots
Avoid storing the products in a place at high temperature,high humidity and in Corrosive gases.Please use this product as soon as possible with 6 months limitation.If any rimainder left after packing is opened,please store it with proper moistureprooting,gasproofing etc.
The encoder pulses count method should be designed with taking operating speed,sampling time and design of the microcomputer softwae into cosideration.
Care must be taken not to expose this product to water or dew to prevent possible problem in pluses output waveform.
(Ultra-small size precision encoders,incremental and absolute type is available. Apply to handheld walkie-talkie,a small intercom system center,car stereo,etc.)
Packaging: 250 pcs in a polyfoam, 2000 pcs in a carton
Shippment: By Air, express or by sea.
1>Professinal manufacture and specilizing in rotary encoder and potentiometer for 13 years.
2> ISO9001:2008 manufactory,custom as your demand,we are sure to make a great manufacturing for you.
3>Quick and exact lead time.
4>We have QC team for every procedure and 100% satisfaction guaranteed.
5>OEM and ODM is welcome
6>Any questions and requirements ,we will reply you within 24 hours.
