Specifications
Laser Wire-Stripping Machine:Imported Laser tube,the facula is smaller
more stable than domestic laser tube.
¶Product Introduction:
Wuhan Huahai Century Laser Co,ltd is a high-tech enterprise engaging in producing laser wire-stripping machine. At Present, CABLE processing Industry using laser wire-stripping machine is tendency.
PD-CC-WL10K/1K laser wire-stripping machine is for the current mainstream high-end wire processing products launched in the field of professional stripping. This product technology is mature, stable. ,In long-term practical application, it has widely get a recognition of our customers.This model uses a single tube dual optical design.Machine performance is stable and reliable. It can run a long time without failure,can meet for 24hours at a full lad operation.
Technical Feature:
l Using imported precision movement module,X,Y axis stroke is adjustable,product wire stripping location dimension is adjustment arbitrarily, more than a single line can be processed simultaneously.
l Imported Laser tube,the facula is smaller and more stable than domestic laser tube.
l Imported PLC controller and touch screen interface,multiple functions,easy to use.
l Mini Type desktop design,good-looking appearance,small occupied area.
l Fix anti-pollution devices and optical systems exhaust devices.
l Professional for 52AWG and lower these thin coaxial insulation and mylar foil.
l Well stripping the inner shield (foil mylar )and a variety of insulation materials(PVC,PE,QRW ,Teflon and so on),doesn’t damage the inner insulating layer,the conductor, ground,finished up to 100%.
l Completely non-mechanical contact processing.The processed material does not produce any mechanical compression or mechanical stress,good processing quality.
¶Technical Parameters
TYPE |
PD-CC-WL10K/1K |
Average Power |
30W |
Laser Wavelength |
1064nm |
Working stroke(X/Y)mm |
200/50 |
Cutting Speed |
0~100mm/s |
External Dimension(length ,width, and height)mm |
900x460x650 |
Power consumption |
1200W |
Power Supply |
220v/50HZ |
Cooling system |
Air Cooling |
¶Application Industry
Cellphone,Laptop,Camcorder,Digital Camera such as electronic industry products inner winding displacement and wire stripping,which can strip single wire, flat cable,parallel lines,multi lines and so on. Specially suitable for lower than 0.5mm small data lines.

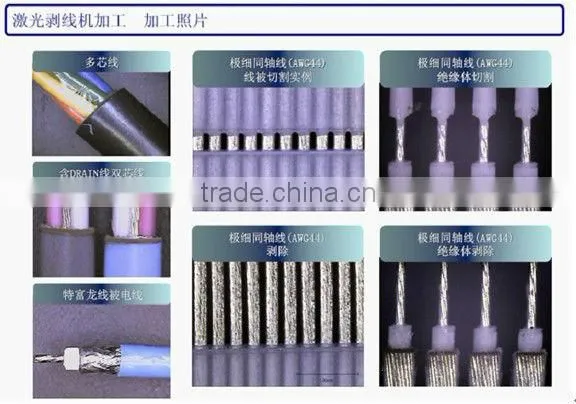

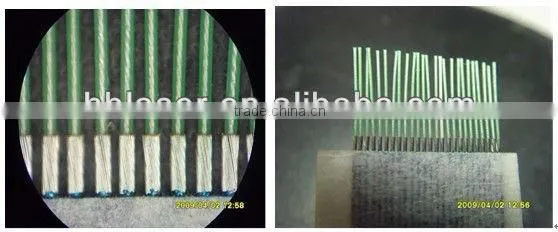

Photos under the microscope
