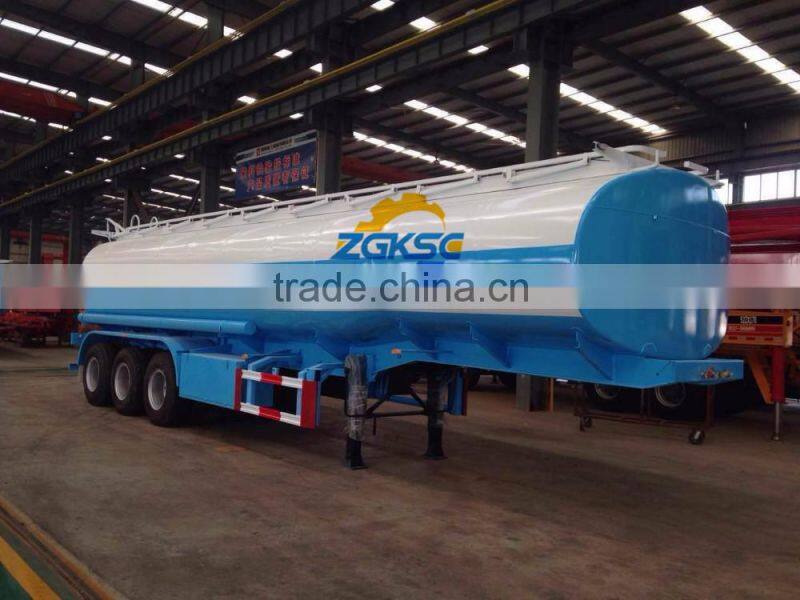

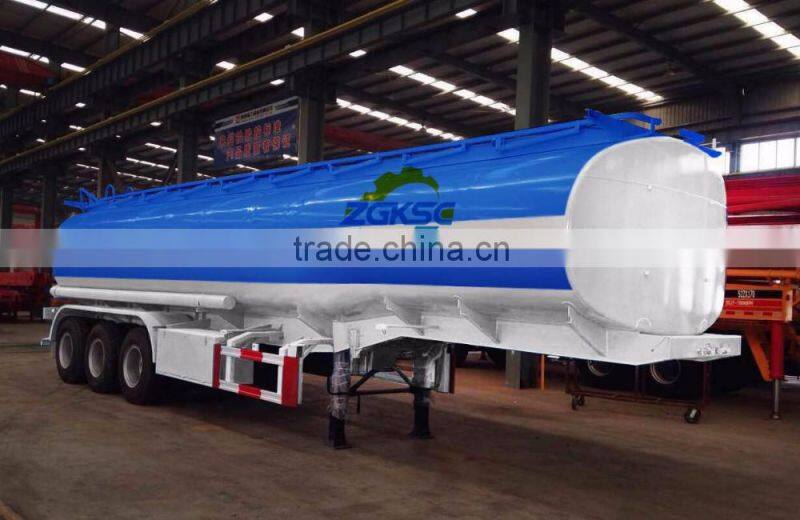

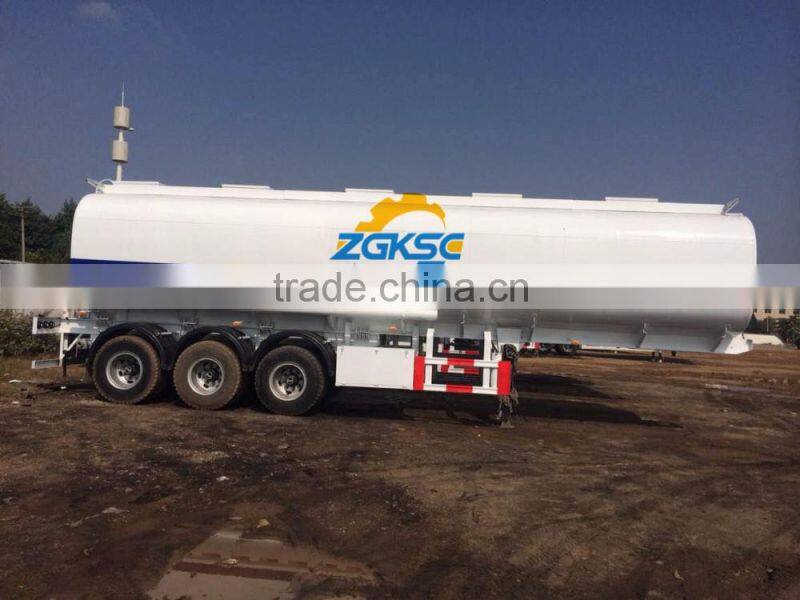

2015 Hot Sale Stainless Steel Fuel Oil Tanker Trailer

Name: 2015 Hot Sale Stainless Steel Fuel Oil Tanker Trailer
Brand: ZGKSC
SKU: 108698761
Availability: InStock

US$ 18000.00 - 25000.00 MOQ: 3 Sets

Key Specifications

Type:

Semi-Trailer

Material:

Iron

Size:

12000*2500*3700MM

Ruili City Kai Shi Cheng Tradng Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Iron

Size 12000*2500*3700MM

Max Payload 29T

Place of Origin Shandong, China

Brand Name ZGKSC

Model Number CTY9402GY33

Product Description

Trailer Model	45000L 3 Axles Oiltanker Trailer
Overall Dimension (L x W x H) (mm)	11900x2500x3900mm
Function	Transport Fuel, Oil, Diesel, etc.
Thickness (mm)	Tank body: Q235 carbon steel 4mm End plate: 6mm steel sheet
Loading Capacity (L)	45000
Axle Brand	FUWA Brand 13Ton Axle
Axle Number	Three
Compartment	2 compartments 22500/22500
Manhole cover	500mm manhole cover. 2 sets with 2 breath valve.
Suspension system	Standard Mechanical suspension Leaf Spring 90(W) mm * 13 (Thickness) mm * 10 Layer
Bottom valve quantity	2 units
Steel Spring	10/10/10 leaf spring suspension
The material of Main beam	The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm,middle plate is 8mm. Material is Q345B Steel
Tire Type and Quantity	12R22.5 12units Triangle/Double Happiness brand
Traction Pin	90mm or 50mm JOST Brand
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard
Landing Gear	Standard brand 28ton external
Brake system	Dual Line braking system
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks
air chamber	Six big double air chambers
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
