YAG 500W Sheet Metal Laser Cutting Machine
- Shenzhen/ Shanghai
- T/T Credit Card
You May Like
-
Fiber Laser Cut Sheet Metal Laser Cutting Machine for Stainless Steel Cutting
-
Laser Cutting Equipment for Metal and Nonmetal Multifunctional Laser Cutting Machine
-
Cheap Laser Engraver/Laser Engraving Cutting Machine for Acrylic Cutting
-
CO2 Laser Wood Etching/Laser Engraving Cutting Machine for Acrylic/wood/leather/rubber
-
Laser Print and Cut Machine Co2 Laser Engraving Cutting Machine Price
-
Cheap Used Co2 Laser Cutting Machine for Engraving and Cutting
Product Details
| Condition | New | Laser Type | YAG | |
| Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Cutting Thickness | 1-6mm Stainless steel | |
| Cutting Area | 1300*2500mm | Cutting Speed | 500mm/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Graphic Format Supported | AI, BMP, DXF, PLT | Place of Origin | China | |
| Brand Name | Huahai laser/OEM | Model Number | HM-500 W | |
| Certification | CE, ISO | After-sales Service Provided | Overseas service center available |
Product Description
500w 1000w YAG & Fiber Laser Cutting Machine For Metal,Carbon Steel,Stainless Steel Aluminum cutting machine
Fiber Laser 1000w metal carbon fiber laser cutting machine
H YAG 500W Sheet Metal Laser Cutting Machine
NEW YAG LASER MACHINE FOR CUTTING METAL
Quality is our culture,with us your money is safe your business is in safe.
1. Youtube vedio of laser cutting machine: http://youtu.be/TgIVZccdseQ
2. Features of laser cutting machine:
1) Higher cutting speed and low cost, operation safe and stable fuction.
2) Smooth and fine edge or surface and small distortion.
3) Imported servo motor and gearing system to guarantee precise cutting.
4)Dedicated sofware enables graphic or text to be instantly designed or processed. Flexible and easy operation.
5)Laser beams can be diversified to achieve multi-spots or ulti-beams focused on welding.
3. Applied Fields of laser cutting machine:
Laser Metal Cutting machine is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.
It can zarry on non-contact cutting on metal sheet, pipe, especially for stainless steel, sttel plate,diomond saw blades and othermetal materials, it has excellent processiong for the various high-brittle hard alloys. In the lines of hardware and metal sheet industries, laser cutting technology can be partially replace the line cutting.
Technical parameters of YAG & Fiber laser cutting machine:
Model: | HM-1000W laser cutting machine |
Laser type | Fiber Laser cutting machine |
Laser wavelength | 1064nm |
Input Power | 16KW |
Pulse Frequency | 1-300Hz work Current: 100-450A |
Pulse Width | 0.1-20ms beam divergence angle: ≤ 3 mrad |
Power instability | ≤ ± 2.5% |
Import Focus Lens focal lengths | 100mm |
Max Cutting speed | 500mm / min (6mm thick stainless steel plate) |
Cutting Size | 500*500mm 1000*1000mm 1300*2500mm |
Repeat positioning accuracy | ± 0.2mm |
Max Cutting thickness | 1-8 mm carbon steel 1-6mm stainless steel 1-2mm aluminium |
Continuous Working Time | 24 hours |
Table-driven system | Servo Motor Driven |
Terms & Conditions:
1.Payment Method: T/T in advance, L/C at sight , Western Union, Escrow
2.Price Validity: 1 month
3.Leading Time: 7-10 working days
4.Delivery Method: Compound wooden cases by Sea or Air.
Warranty and after-sale service:
1.12 months guarantee for whole machine free of charge
2.7*24 hours technical support by e-mail
3.Calling or door-to-door service,professional training to your workers
4.Use friendly English software, user manual and detailed Videos/CD
5.Priority to become our agent in your city,we offer you our factory price

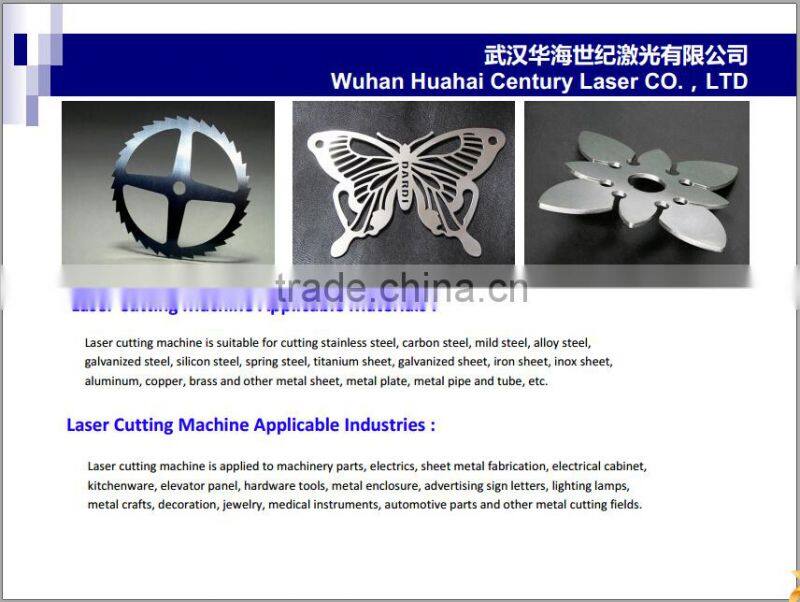

Samples by Huahai laser cutting machine:
