Hot Sale 500W 650W 1000W laser metal cutting machine

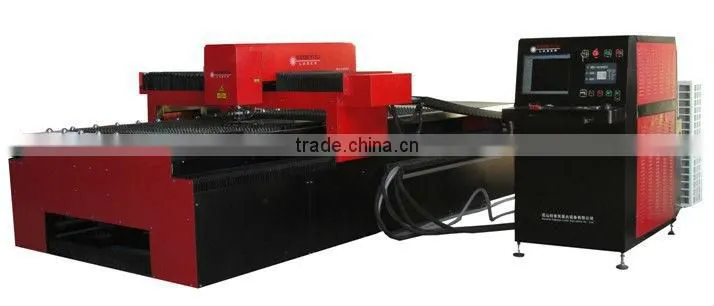

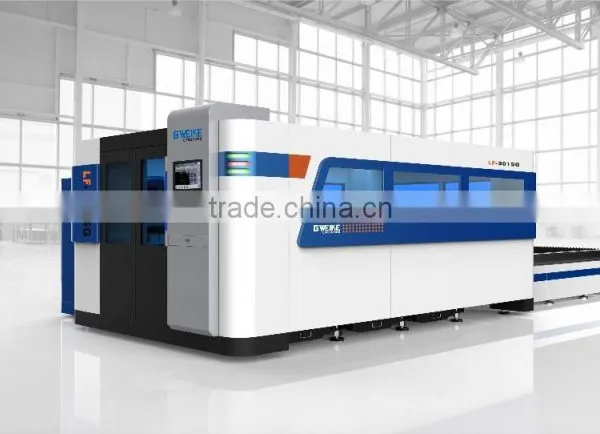

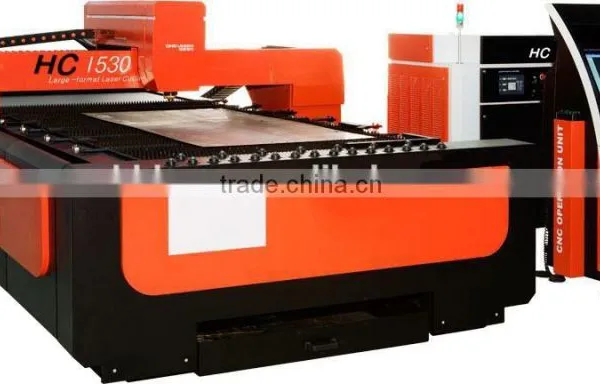

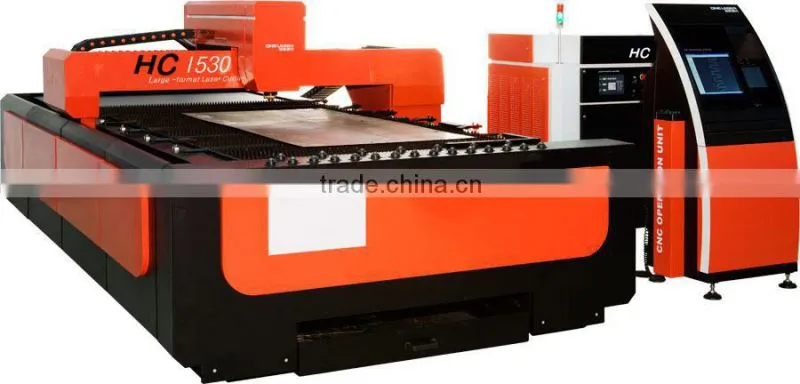

Huahai laser 500w 1000w Stainless steel Aluminum Carbon Steel
Galvanized Plate Fiber Laser Cutting Machine For Metal
600*400mm 1000*600mm 1300*900mm 1400*1000mm 1500*3000mm Marking Area Optional
Machine Applied Fields:

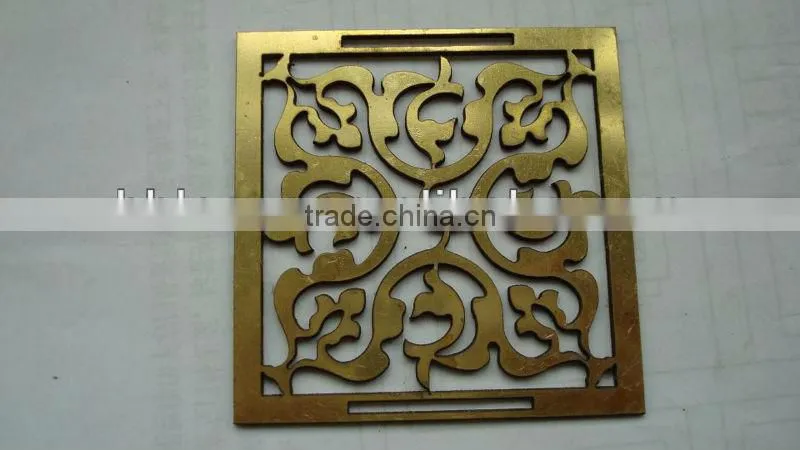

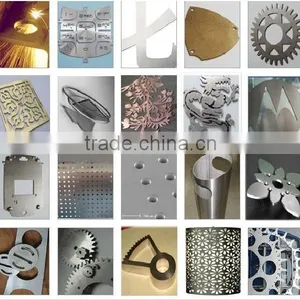

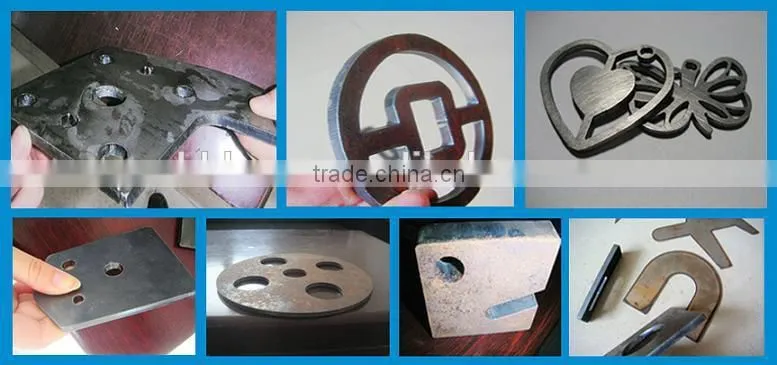

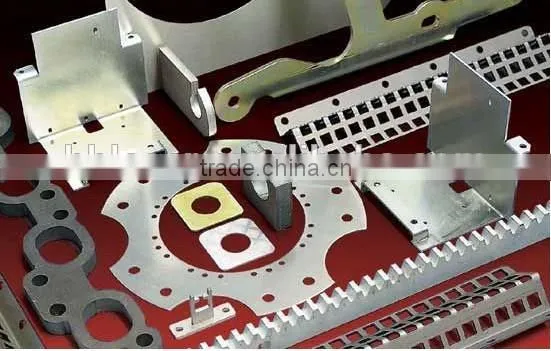

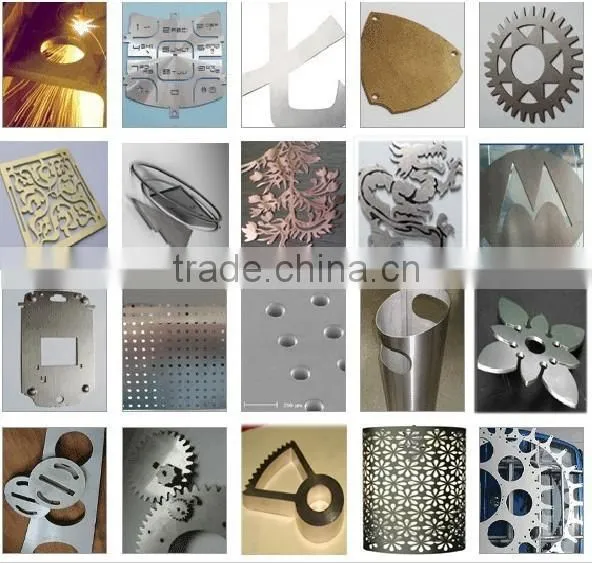

Laser Metal Cutting machine is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry. It can carry on non-contact cutting on metal sheet, pipe, especially for stainless steel, steel plate, diamond saw blades and other metal materials, it has excellent processing for the various high-brittle hard alloys. In the lines of hardware and metal sheet industries, laser cutting technology can be partially replace the line cutting.
Product Features:
The laser of HB-500W laser cutting machine adopts the current most advanced laser technology manufacturers from Germany,the UK imports dedicated laser cavity,it have the merits of effect cooling and high electro-optical conversion efficiency.In structure,the machine have a great improvement—the entire optical system adopts an enclosed struature,it has functions of optical previewing and focus instructing with a more aesthetic appearance and more convenient operation.The machine is equipped with the latest external water cooling system with very low running noise and high accuracy temperature regulator,which provide a reliable guarantee for a long time running.
Technical Parameter:
Model: |
HC-500F HC-1000F |
Laser type: |
fiber laser |
Laser wavelength |
1064nm |
Input Power |
16KW |
Pulse Frequency |
1-300Hz work Current: 100-450A |
Pulse Width |
0.1-20ms beam divergence angle: ≤ 3 mrad |
Power instability |
≤ ± 2.5% |
Import Focus Lens focal lengths |
100mm |
Max Cutting speed |
500mm / min (6mm thick stainless steel plate) |
Cutting Size |
500*500mm 1000*1000mm 1300*2500mm |
Repeat positioning accuracy |
± 0.2mm |
|
Max Cutting thickness |
1-8 mm carbon steel 1-6mm stainless steel 1-2mm aluminium |
Continuous Working Time |
24 hours |
Table-driven system |
Servo Motor Driven |
Cutting software Interface:
The cutting software can support many formats, such as dxf.,plt.,dsb.,bmp.,png.,ico., cur., tif., tga., pcx., wmf., emf., jbg., pnm., ska., ras.,etc.
Laser Auto focus Servo cutting head:
Our solid laser cutting machine uses USA technology auto focusing cutting head. Cutting head laser nozzle locking ring touch the metal sheet materials surface, cutting head move up and down, and it can achieve same focal cutting. The cutting head has high sensitivity, stable running and good reliability.When cutting metal sheet.
Main configuration:
S/N |
PARTS |
CONFIGURATION |
QTY |
1 |
2D Cutter Mainframe |
capacitor Auto following cutting head |
1 set |
imported servo motor |
2 sets |
||
imported ball screw |
1 set |
||
imported guide rail |
2 sets |
||
basement subassembly |
1 set |
||
Gantry type subassembly |
1 set |
||
650W laser source |
1 set |
||
2 |
Laser Power |
500W 650W |
1 pc |
3 |
Laser Chiller |
5P, 7P |
1 pc |
4 |
Computer control panel |
Computer main box |
1 pc |
17" LED monitor |
1 pc |
||
panel cabinet |
1 pc |
||
Movement control card |
1 set |
||
Control panel |
1 set |
||
5 |
Net Saw-teeth Worktable |
Mainframe |
1 pc |
Scrap box |
2 pcs |

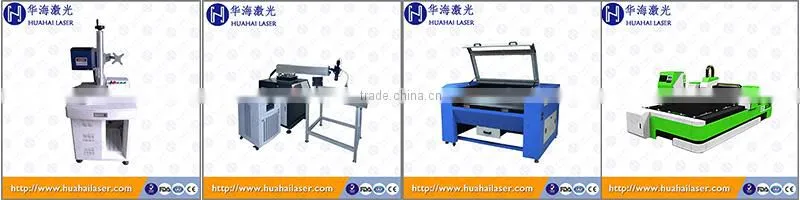

Related Laser Machine -
Fiber laser marking machine / CO2 laser marking machine
Laser cutting machine / Laser welding machine
f Fiber Laser Marking Machine
| |||
|
Desktop Fiber Laser Marking Machine Mini portable fiber laser machine Co2 laser marking machine Fiber Laser Marking Machine for Metal and Non Metal |
Channel letter laser welding machine Laser welding machine for Advertising Industry |
Laser engraving machine Co2 laser cutting machine 1325 1390 laser cutting machine Wood acrylic laser cutting machine
|
Fiber Laser cutting machine YAG -laser cutting machine |
Video on YouTube
| Marking on metal/stainless steel | /watch?v=bH6HhjWCSTM |
| Marking on bird ring | /watch?v=pArcRjDMmLw&feature=youtu.be |
| Marking on ear tag | /watch?v=-KZ2FXHxjIU&feature=youtu.be |
| Bar code marking | /watch?v=60aGwcq2YrM |
| QR code marking | /watch?v=17DBl_JWDa4 |
| Enclose type machine working | /watch?v=O3zIe5tl-2I&feature=youtu.be |
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,
make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
- Delivery and Shipping
1.The delivery lead time would be 5-7 working days after recieving the payment.
2.As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.
Before quotation, would you please let me know some items following?
1.What materials do you want to engrave on by our laser engraving machine?
2.What max. size of your workpiece ?
Then, more details with good price will be sent . Also more industry solution will be supplied.
Please send your inquiry details in the below and click "Send" to check the price for 500W 650W laser cutting machine !
