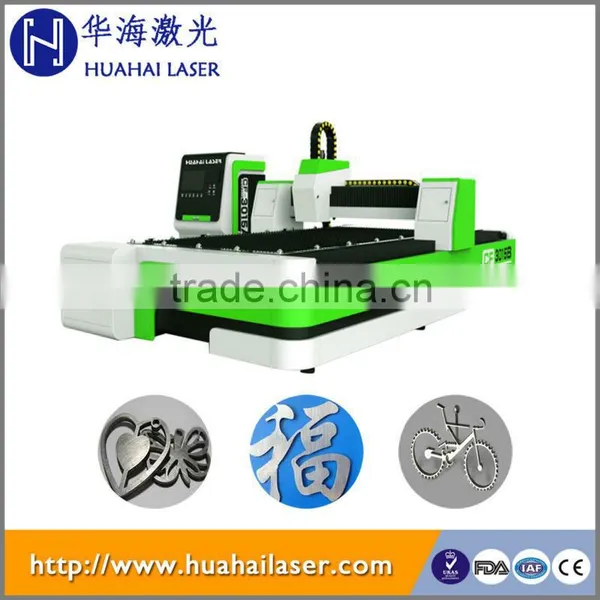

Metal laser cutting machine Germany IPG 1000Watt stainless steel fiber laser cutting machine for sale
Fiber Laser 1000w metal carbon fiber laser cutting machine
(Cutting area:1300*2500mm,3000*1500mm and so on)
Quality is our culture,with us your money is safe your business is in safe.
Features of metal laser cutting machines
- The medium-power laser cutting machine with the highest precision in China, it can cut small metal bike design with size of half a coin and good cut 6mm mild steel,120 holes can be cut within one minute.
- 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, to make sure 20 years usage without deformation.
- Using laser electrical cabinet integration design, cover small area , save space, minimalist design.
- Scrap car symmetrical design, both sides can clean up the waste; Put machine to the romm has no left and right requirements; Pneumatic lifter device to prevent the material from scratching.
- Specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel and other kinds of thin metal sheets.1000W can cut 3mm aluminum and 2mm copper.
The fiber &yag laser cutting machine technical parameters
80% of the parts are imported, mainly from USA, Germany and Japan.
| Product name | 500w 1000w YAG & Fiber Laser Cutting Machine For Metal,Carbon Steel,Stainless Steel Aluminum cutting machine |
| Working table(mm) | 1500*3000 |
| Laser power(W) | 500 |
| Weight(kg) | 4500 |
| Talbe load(kg) | 500 |
| Machine body size(mm) | 4600*2450*1700 |
| Max.Acceleration Speed | 1G |
| Transmitting System | Imported ball screw |
| Max running speed | 50m/min |
| Positioning Accuracy | 0.05mm |
| Working Power Supply | AC220V±10% 50HZ |
| X/Y PositionaI Accuracy | ±0.05mm |
| Running Temperature | 0°C-40°C |
| Max Acceleration | 1G |
| Formats | BMP,DXF,PLT,DST,CDR,GPEG |
| Applied Materials | Thin mild steel, stainless steel and other kinds of metallic sheets(non-ferrous metal not suggested) |
Applied Fields of laser cutting machine:
Laser Metal Cutting machine is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.
It can zarry on non-contact cutting on metal sheet, pipe, especially for stainless steel, sttel plate,diomond saw blades and othermetal materials, it has excellent processiong for the various high-brittle hard alloys. In the lines of hardware and metal sheet industries, laser cutting technology can be partially replace the line cutting.
Warranty and after-sale service:
- 12 months guarantee for whole machine free of charge
- 7*24 hours technical support by e-mail
- Calling or door-to-door service,professional training to your workers
- Use friendly English software, user manual and detailed Videos/CD
- Priority to become our agent in your city,we offer you our factory price
Production processing:
- Our raw materials are under strict quality control.
- After the worker finished the production, our QC will check the overall quality. If not pass our standard will rework.
- Passed the quality standard we will installing the machine and check the quality against then make sure each part is good.
- Then we will cleaning the machines and packaging it with anti-collision package edge, splint wooden box packaging (with steel wire reinforcement), packing.
1.How soon can you send the machine after I placing the order?
The commom time is within 10 days.
2. Can you arrange the shipment for me?
We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.
3. How do I know that I have all the goods I ordered before the shipment?
Pictures will be sent to our clients for confirmation before the shipment.
4. How can I get Machine's spare parts, such as laser tube?
There are two methods. Spare Parts ordered together with the machine, this is the safest way to transport the laser tube. The other way is you can inform us when you need to replace the consumables,we will send them to you within 24 working hours.
5.Which parts of the machine are als
The wearing parts of machine are laser tube, lens and reflectors.
6. Does your laser run from a laptop or Desktop PC?
Both ok, as long as your operating system is windows 2000, windows 7 or XP or vista, etc.
7. Does your laser work from printer in CorelDraw?
Our laser cutter can work in CorelDraw, Photoshop directly.
It is connected to PC by using a USB cable.
8. What files is the software compatible with?
JPEG,DWG, BMP, PLT, DST, DXF,CDR,AI, etc.
9. What's the difference between the different laser tubes?
Usually, the power of the tube is decided by two parameters:
1.the length of the tube, the longer the tube is, the more powerful.
2. the diameter of the tube, the bigger the tube is, the more powerful.
10. HOW TO OPERATE
1). Firstly, it’s really easy to operate.
2). Video will be sent to you. After you watch videos you can install this kind of machine by yourself.
3). Software! We use CorelDraw 9 or 12 to draw pattern, if you know how to use one of them, it would be great! If you did not know! Welcome to our class, we will show you how to draw it!
4). Hardware! Our machine is steady! It will work after 3 steps:
a. Install laser tube
b. Install water chiller
c. Power on
Wuhan Huahai Century Laser Co.,Ltd was founded in 2000.For 15 years,Huahai laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc.
With all Huahai staff persistence and hard working,Huahai laser has developed to a large-scale international manufacturing company.More accuracy,more automatically and higher quality products with intimate after-
sales service enables Huahai be the leader of laser industry.Suitable services for customers,2-year warranty products,standard scientific management make Huahai earn the best reputation and word-wide trusted customers.
For 15years,Huahai laser machines cover all Chinese market and also very popular in America,West Europe,South Asian,East Asian etc. More than 80 countries. Huahai lasers will try our best to serve for you suitable laser solutions. Welcome you to join Huahai family,share top laser products and services together with word-wide customers.
