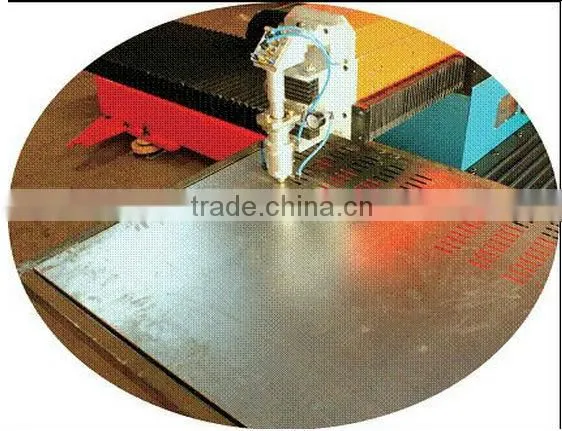

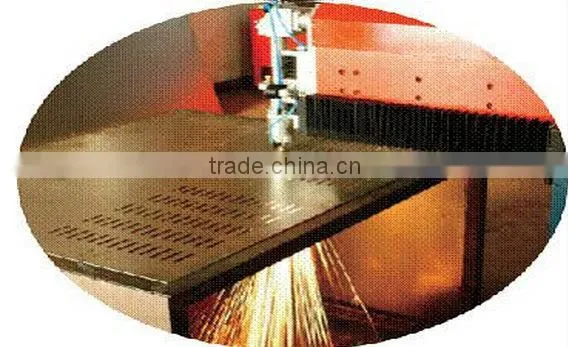

500w YAG Laser machine manufacturer metal laser cutting machine 1mm gold laser cutting machine for sale
(Cutting area:1300*2500mm,3000*1500mm and so on)
Quality is our culture,with us your money is safe your business is in safe.
1. Youtube vedio of laser cutting machine: http://youtu.be/TgIVZccdseQ
Features of metal laser cutting machines
- The medium-power laser cutting machine with the highest precision in China, it can cut small metal bike design with size of half a coin and good cut 6mm mild steel,120 holes can be cut within one minute.
- 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, to make sure 20 years usage without deformation.
- Using laser electrical cabinet integration design, cover small area , save space, minimalist design.
- Scrap car symmetrical design, both sides can clean up the waste; Put machine to the romm has no left and right requirements; Pneumatic lifter device to prevent the material from scratching.
- Specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel and other kinds of thin metal sheets.1000W can cut 3mm aluminum and 2mm copper.
The fiber &yag laser cutting machine technical parameters
80% of the parts are imported, mainly from USA, Germany and Japan.
| Product name | 500w 1000w YAG Laser Cutting Machine For Metal,Carbon Steel,Stainless Steel Aluminum cutting machine |
| Working table(mm) | 1500*3000 |
| Laser power(W) | 500 |
| Weight(kg) | 4500 |
| Talbe load(kg) | 500 |
| Machine body size(mm) | 4600*2450*1700 |
| Max.Acceleration Speed | 1G |
| Transmitting System | Imported ball screw |
| Max running speed | 50m/min |
| Positioning Accuracy | 0.05mm |
| Working Power Supply | AC220V±10% 50HZ |
| X/Y PositionaI Accuracy | ±0.05mm |
| Running Temperature | 0°C-40°C |
| Max Acceleration | 1G |
| Formats | BMP,DXF,PLT,DST,CDR,GPEG |
| Applied Materials | Thin mild steel, stainless steel and other kinds of metallic sheets(non-ferrous metal not suggested) |
Applied Fields of laser cutting machine:
Laser Metal Cutting machine is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.
It can zarry on non-contact cutting on metal sheet, pipe, especially for stainless steel, sttel plate,diomond saw blades and othermetal materials, it has excellent processiong for the various high-brittle hard alloys. In the lines of hardware and metal sheet industries, laser cutting technology can be partially replace the line cutting.
