Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > 200W Laser Welding Machine Cheap

200W Laser Welding Machine Cheap

Name: 200W Laser Welding Machine Cheap
Brand: Huahai Laser
SKU: 108697769

200W Laser Welding Machine Cheap thumbnail-1

200W Laser Welding Machine Cheap photo-1

US$ 5,500 - 6,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Hubei, China

Brand Name:

Huahai Laser

Model Number:

WY-200HZ

Contact Supplier Request Quote Chat Now

Wuhan Huahai Century Laser Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hubei, China

Brand Name Huahai Laser

Model Number WY-200HZ

Certification FDA&CE

Specifications

1. Metal Letters Laser Welding Machine
2. Metal profile except aluminum
3. Low noise,no pollution
4. Pulsed Nd:YA
5. CE

Application:
Applied for the welding of various metal letters, LED illuminated letters, customized metal signage, and exterior billboards.

Features:

red light fast positioning, CCD display, microscope optional
Adjustable working table allows welding from small size to big size of work piece
Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope
Slight distortion and affect by heating.
Capable of partial heating process.
Able to deal with complex, profiled, or tiny letters.
Low noise and no pollution.
Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position
New metal processing technology brings higher quality of end products.

Technical Parameters:

Model No.	WY-200HZ
Machinery Part	Optical system moves 800mm distance and 90° rotate
Bench Stroke	Working area 750*1000
Bearing of bench	≤200KG
Power supply	220V±10%/50/60Hz or 380V±10%/50/60Hz
Laser type	Pulsed Nd:YAG (xenon lamp)
Adjustment range of light spot	0.1~0.3mm
Size of light spot	0.2~3.0mm
Laser wavelength	1064nm
Pulse width	≤15ms
Max laser power	200W
Pulse frequency	≤15Hz
Laser output	150mm
Laser cooling	Water cooling
Observation system	CCD( microscope for option)

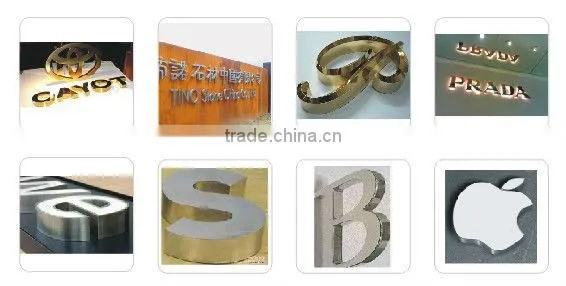

Sample pictures:

Details directions:

a. By turning a knob, laser cavity can move backward and forward freely for the convenience of big size letters welding

b. Laser cavity can move left and right easily for more space when welding big letters

c.The adjustment of parameter setting is very easy, up to 10 sets of parameters can be memorized for your option

Prospect of AD metal letters/signage welding industry:

With the booming of global advertising industry, metal letters has been more and more popular because of its colorfulness, attractiveness, heating-proof, frozen-proof, no deformation, no fadedness (8-10 years color preservation),corrosion proof, rain-proof, and spontaneous combustion proof and some other good features. AD metal letters are made of stainless steel, aluminum, copper or other metal sheet being cut, polished, hemmed, and welded. The core feature of AD metal letters is being rustproof, with long life span and dimensional looks. It’s widely used in LED illuminated billboard, exterior/interior signs, branding, door plate and etc.

Regular combination and fixing of metal letters are done via glue, rivets or soldering, but all of them have big defects. Metal letters combined by glue always get loose with time goes by, especially at outdoors. Fixing by rivets sounds good, but not good-looking. Soldering is never a green way of fixing metal letters because of the poisoning gas produced when processing.

However, laser welding technology makes two metal sheets become one only by a few melting spots. From any aspect, laser welding is the best solution and the greenest.
