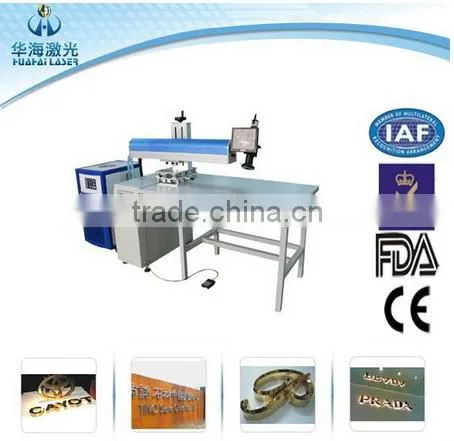

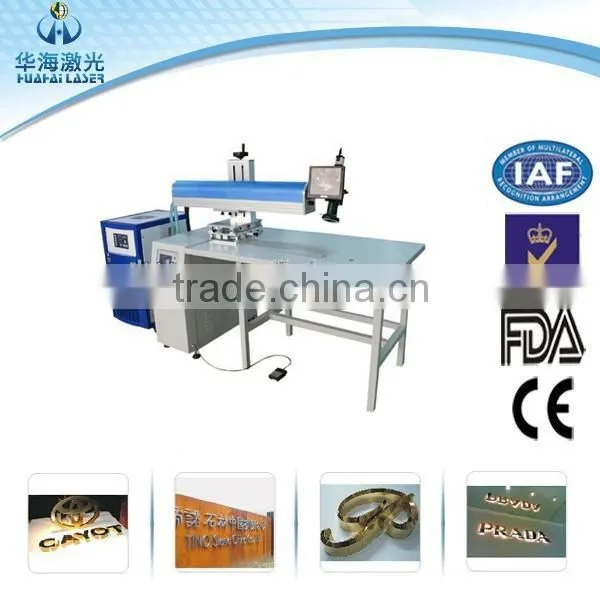

Channel letter portable laser welding machine with label
Introduction:
Channel letter laser welding machine is the application of high energy pulse laser welding .By laser power supply of xenon lamp pulse discharge, forming a certain frequency and pulse width of light waves by the condensing cavity radiation to Nd3 + : YAG crystal, crystal shine after resonant sent 1064 nm laser pulse, then through beam expander, reflection, focus after welding.
Application:
Applied for the welding of various metal letters, LED illuminated letters, customized metal signage, and exterior billboards.
Features:
- red light fast positioning, CCD display, microscope optional
- Adjustable working table allows welding from small size to big size of work piece
- Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope
- Slight distortion and affect by heating.
- Capable of partial heating process.
- Able to deal with complex, profiled, or tiny letters.
- Low noise and no pollution.
- Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position
- New metal processing technology brings higher quality of end products.
Model No. |
WY-200HZ |
Machinery Part |
Optical system moves 800mm distance and 90° rotate |
Bench Stroke |
Working area 750*1000 |
Bearing of bench |
≤200KG |
Power supply |
220V±10%/50/60Hz or 380V±10%/50/60Hz |
Laser type |
Pulsed Nd:YAG (xenon lamp) |
Adjustment range of light spot |
0.1~0.3mm |
Size of light spot |
0.2~3.0mm |
Laser wavelength |
1064nm |
Pulse width |
≤15ms |
Max laser power |
200W |
Pulse frequency |
≤15Hz |
Laser output |
150mm |
Laser cooling |
Water cooling |
Observation system |
CCD( microscope for option) |
Sample pictures:
Details directions:
a. By turning a knob, laser cavity can move backward and forward freely for the convenience of big size letters welding
b. Laser cavity can move left and right easily for more space when welding big letters
c.The adjustment of parameter setting is very easy, up to 10 sets of parameters can be memorized for your option
