100W 150W co2 laser lgp marking dots marking machine,co2 dynamic laser marking machine
Dynamic co2 LGP laser Marking Machine for Advertising Industry
Laser marking engraving machine,laser welding machine,fiber & YAG Laser cutting machine provided!
Quality is our culture,with us your money 150w Large format Co2 laser marking machine is safe your business is in safe.
HIGH SPEED, HIGH PRECISION, HIGH POWER, LARGE MARKING AREA!
Brief Introduction of the acrylic co2 laser marking machine:
In normal galvanometer marking system, the focus lens is behind focus. When the laser goes through focus lens to focus, it will emit directly to the material. So the working area is decided by the area of focus lens.
In dynamic marking system, there is a spacial dynamic lens. The laser will go out through dynamic focus which is the front focus. The working area can be adjusted by the dynamic focus from small to large.
Equipment Performance of acrylic co2 laser marking machine:
It adopts Coherent or Rofin CO2 laser source from America with stable laser output, high quality laser beam, long service time and high precision. Compared with normal marking system, it has higher speed and better beam facula. It works so best in leather cutting and marking industry.
Application Field of acrylic co2 laser marking machine:
Material: Non-metal materials such as leather, cloth, wood, acrylic, ABS, paper, acrylic etc.
Field: Glass industry, package industry, sign industry, leather products industry, wood industry especially for LGP Engraving,Dotting,LGP LED panel lighting / LED ceiling / TV monitor / Laptop monitor LED Backlight Panels etc.
Samples of acrylic co2 laser marking machine:
Marking Leathers

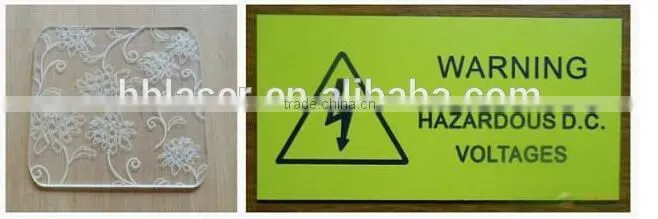

Marking ABS&Acrylic

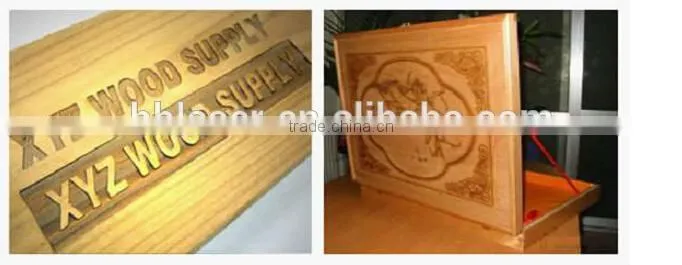

Marking Wood

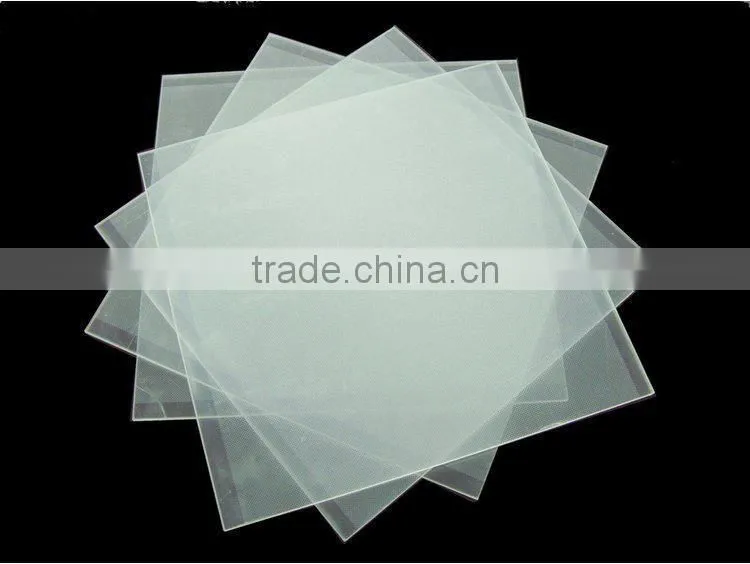

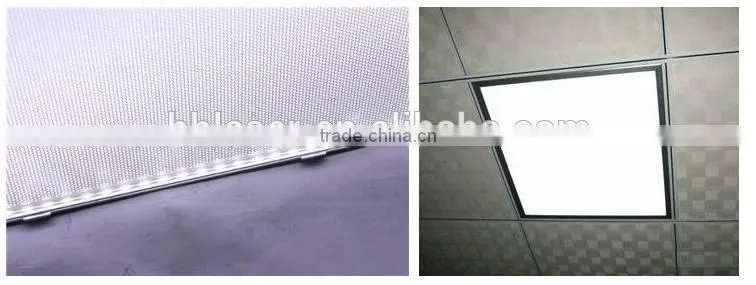

Marking Light Guide Plate
Technical Parameters of dynamic acrylic co2 laser marking machine:
Model |
HM100LGP |
HM150LGP |
Laser Wavelength |
10.64μm |
|
Laser Power |
100W |
150W |
Max.Marking Area |
600*600mm or 800*1200mm |
|
Marking Speed |
≤8000mm/s |
|
Repetition Precision |
0.01mm |
|
Laser Frequency |
20kHz~200kHz |
|
Min.Letter Size |
0.03mm |
|
Power Consumption |
≤3kW |
|
Laser Source |
Coherent Laser Tube or Rofin Laser Tube |
|
File Formats |
PLT, DXP, BMP, JPG etc |
|
Output Compatibility |
AutoCAD, Photoshop, CorelDRAW etc |
|
Power Supply |
AC220V/25A/50Hz |
|
Cooling Way |
Circulation of Water Cooling |
|
Model |
HM275LGP |
|
Laser Wavelength |
10.64μm |
|
Laser Power |
275W |
|
Max.Marking Area |
Max 1300x1300mm |
|
Marking Speed |
≤7000mm/s |
|
Repetition Precision |
0.01mm |
|
Software Support |
WIN XP/ WIN 7 |
|
Software Character |
Compatible with all LGP Drawing Software and file formats and Automatic Optimizatio |
|
Automatic Generation of Dotting Design | ||
Automatic Gradual Changes with Dots sizes and distances | ||
Integrated Fuction of Dottong Design, Vector Drawing, Marking, Scribing and Cutting | ||
Support Different Light Input sides and Styles | ||
Support Informal LGP Design and Dotting Works | ||
Laser Frequency |
20kHz~200kHz |
|
Min.Letter Size |
0.3mm |
|
Power Consumption |
≤3kW |
|
Laser Source |
Coherent Laser Tube or Rofin Laser Tube |
|
File Formats |
PLT, DXP, BMP, JPG etc |
|
Output Compatibility |
AutoCAD, Photoshop, CorelDRAW etc |
|
Power Supply |
AC220V/25A/50Hz |
|
Cooling Way |
Circulation of Water Cooling |
|
Dimension |
Machine Cabinet |
2600*1500*1850mm |
Industrial Chiller |
505*625*900mm |
|

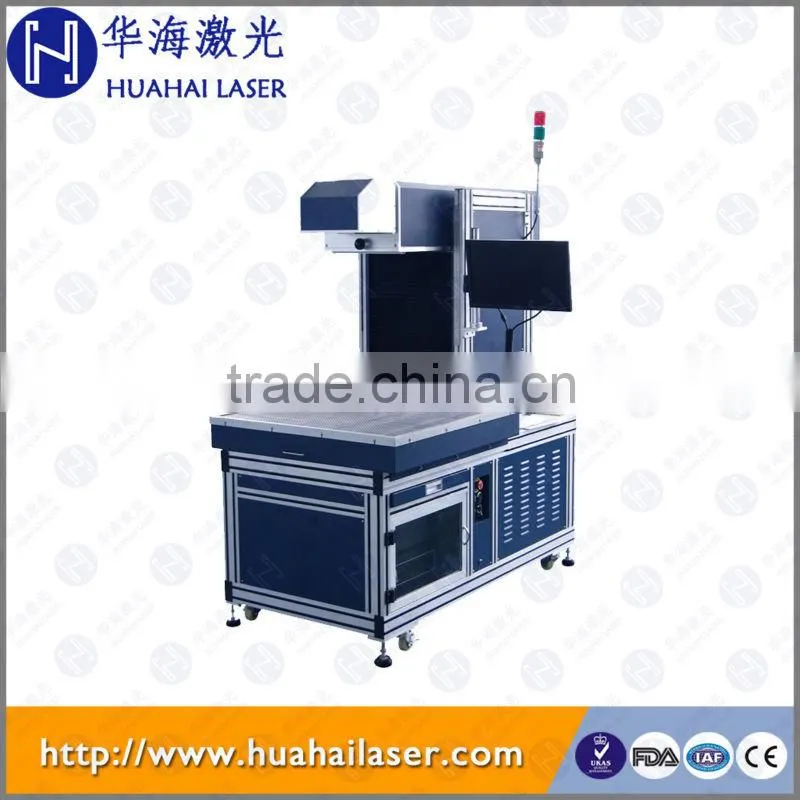

Machine photo of co2 laser marking machine:

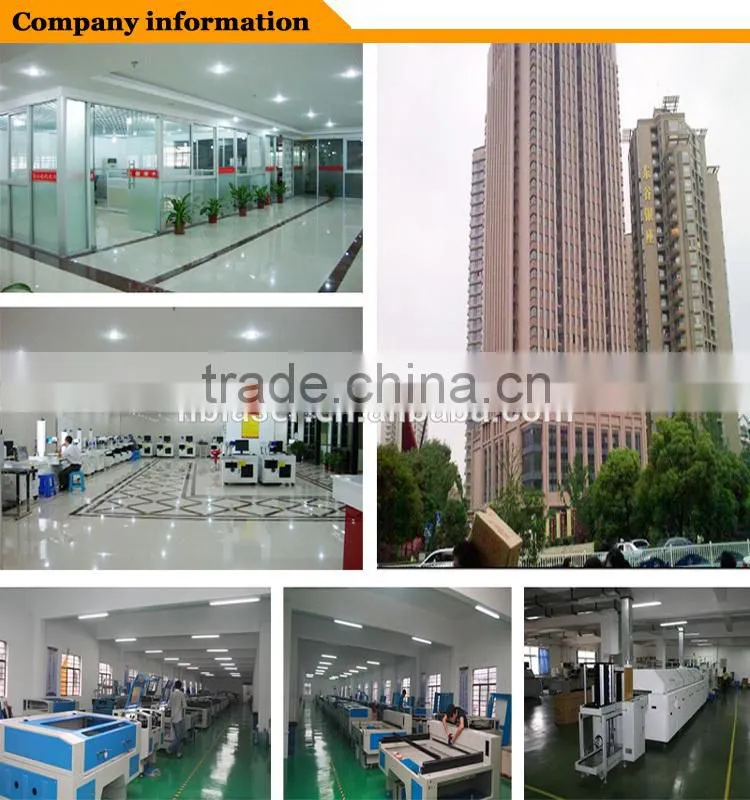

Comapny Show of Huahai Century Laser:
