Mirror Glass Marking with CO2 Laser Marking Machine
Application Materials:
Non metal Material such as
Craft gifts, furniture, leather garments, advertising signs, model making, food packaging, electronic components, pharmaceutical packaging, medicine packaging, textile, rubber plate, wood, bamboo products, acrylic plate, plastic, organic glass, tile, marble, jade, crystal, shell,etc, and all kinds of nonmetallic materials.
CO2 laser marking machine for non metalFeatures:
1. laser power is controlled by the software and it is adjustable, it applies to cut and mark nonmetal materials on big area.
2. Adopt imported CO2 RF laser tube which has excellent performance and long service span (20k hours).
3. Adopt imported American high-speed galvanometer system which has high speed, high precision and stable performance.
4. Adopt imported optics lens, low loss, excellent focalization performance.
5. The marking software is compatible with CorelDraw, AutoCAD, Photoshop etc. a variety of software output files. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font. Support automated coding, serial number, batch number, date, bar code and two-dimensional code marking.
Technical Parameter:
Laser power: 10w 30w 60w 100w
Model |
HM10C |
HM30C |
Laser Power |
10W |
30W |
Laser Wavelength |
10.64um |
10.64um |
Standard Marking Area |
110×110mm |
110×110mm |
Optional Marking Area |
70×70mm/175×175mm |
70×70mm/175×175mm |
Marking Speed |
0-7000mm/s |
0-7000mm/s |
Marking Depth |
0.01-0.5mm |
0.01-0.5mm |
Repeatability |
0.005mm |
0.005mm |
Min linear width |
0.01mm |
0.01mm |
Cooling method |
Air cooling system |
Air cooling system |
Working power |
220V/50Hz/15 |
220V/50Hz/15 |

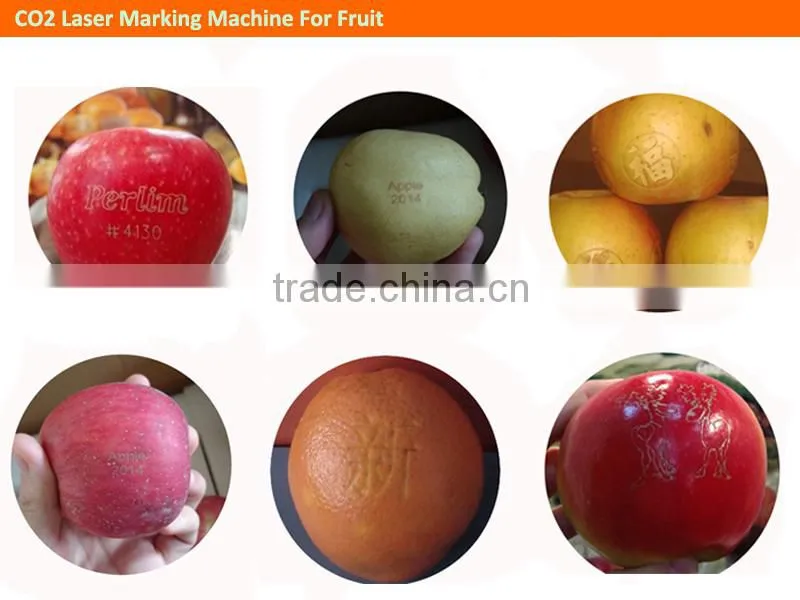

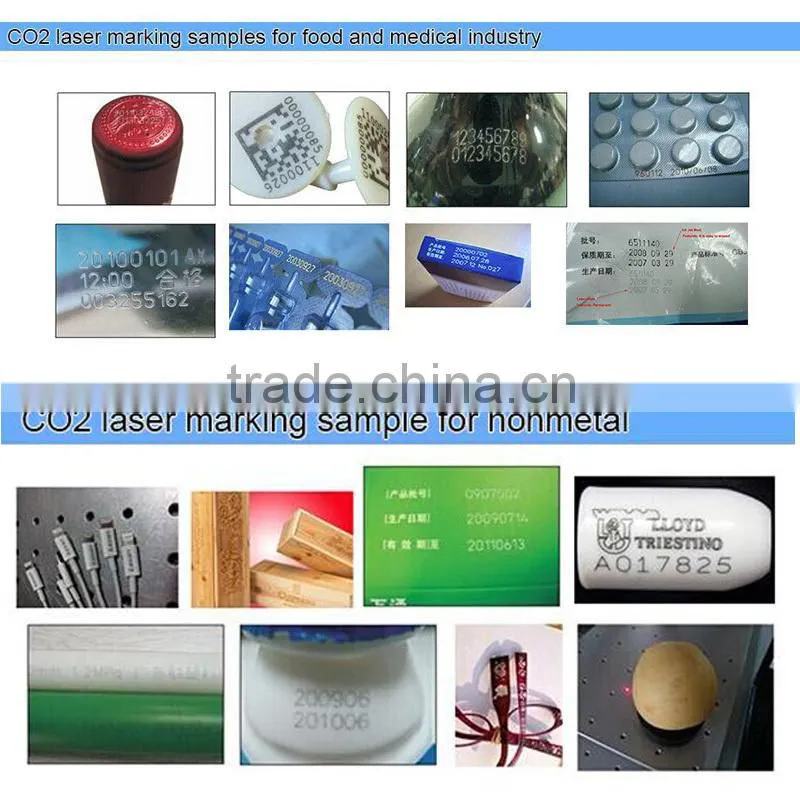

Samples:
