Jiu Road Rotary Automated Car Parking System
- 100 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Type: | Parking Lift | Height (mm): | 5200mm | Width (mm): | 6500mm |
Place of Origin: | Shandong, China | Brand Name: | Jiu Road | Model Number: | PCX(5-layer) |
Warranty: | 1 Years |
Product Description

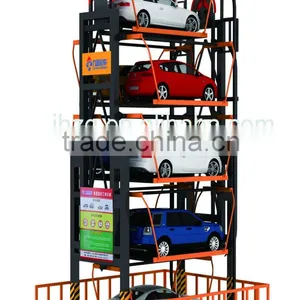

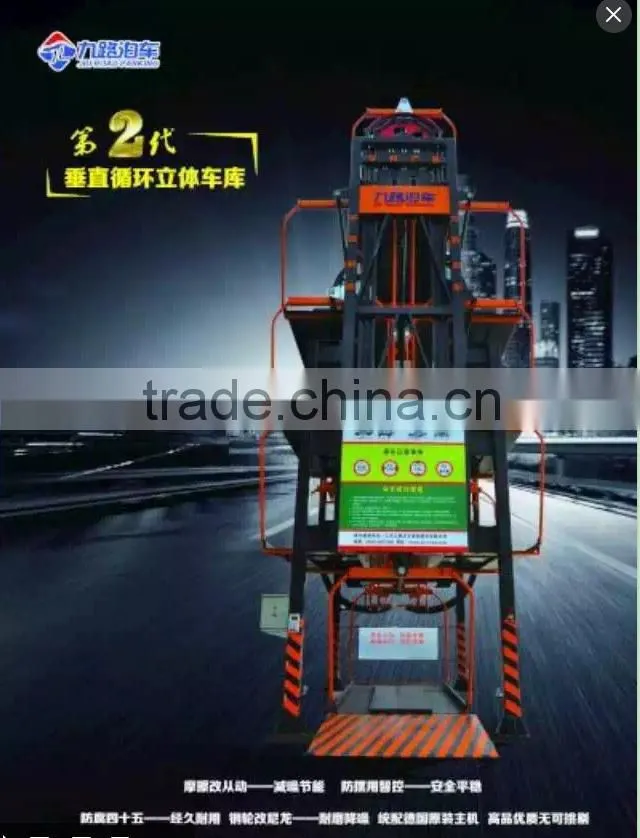

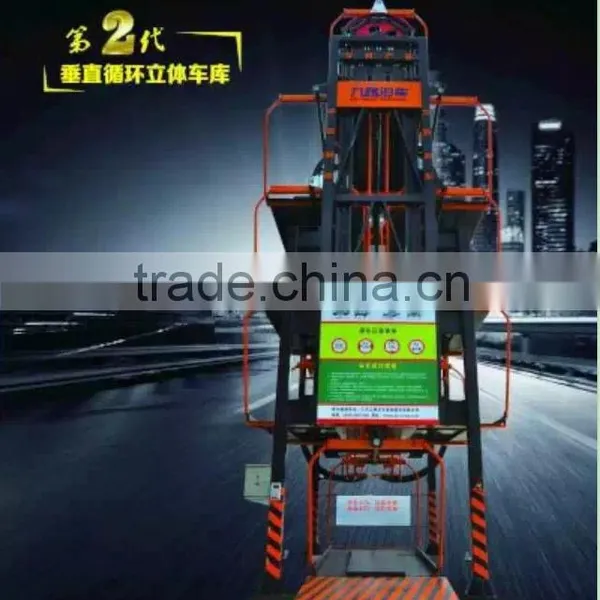

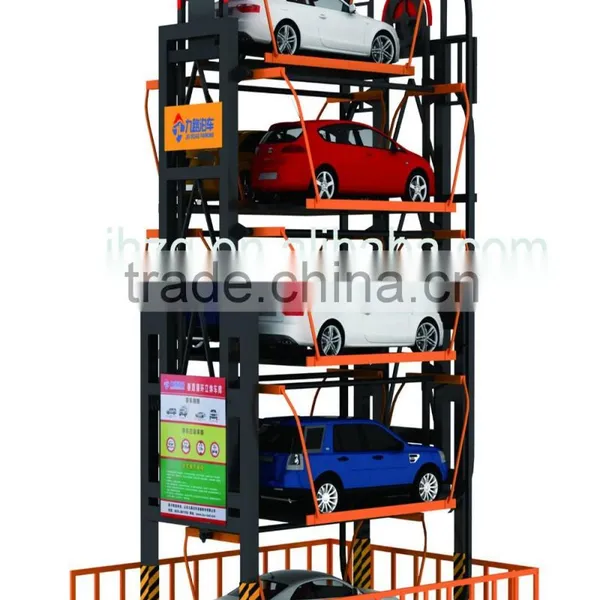

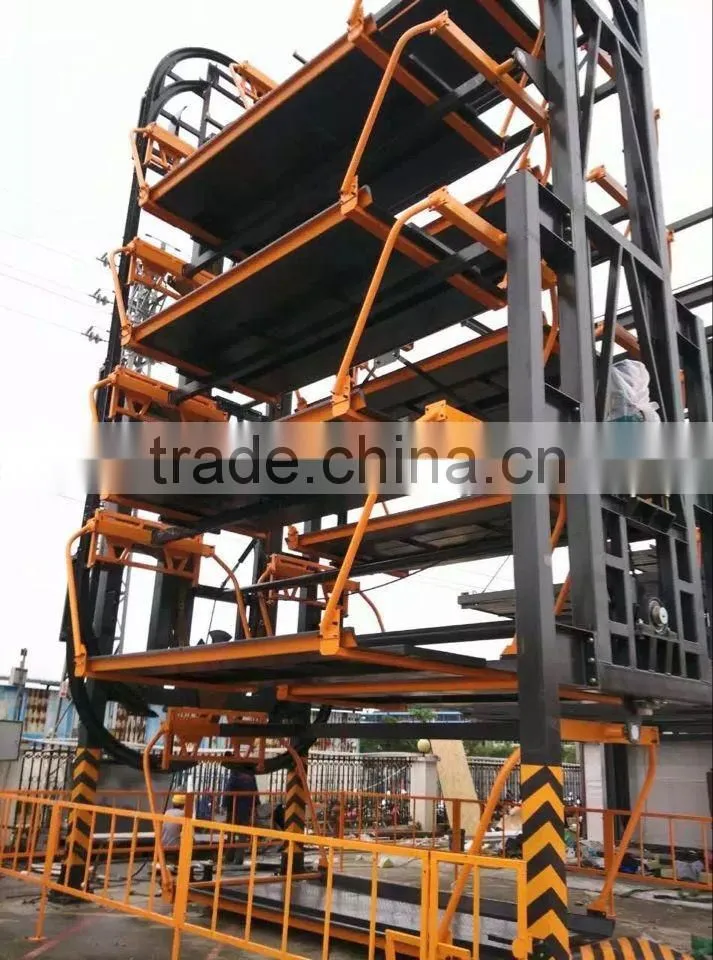

Jiu Road Rotary Automated Car Parking System
Features and advantage:
- Parking area can be extended 7 times, with a parking capacity of 14 cars at a small area for only 2 cars.
- It is an appropriate parking solution for small or medium sized buildings.
- Space required to installation can be saved with minimal footprint.
- Installation can be done normally within three days.
- After installation, unit can be operated with the least trouble.
- No attendant operator is required.
- An optional facade can be provided with an aesthetical exterior of unit.
- Low electrical power is consumed.
- Unit can be reinstalled in a new location, if necessary.
- Extremely low noise with an easy operating system allows unit to be installed adjacent to occupied buildings.
Operating Principle
The rotary parking system consists of one automated mechanical system, which rotates at an angle of being perpendicular to the ground. It is driven by the motor+chain+chain wheel and runs in a rotating way. When someone wants to park or retrieve car, the needed parking pallet will be rotated to the ground level. Then the car can be parked or retrieved directly.
This Jiu Road Rotary Automated Car Parking System is designed to permit up to a maximum of 14 cars to be parked easily and safely, on the surface area required to park 2 cars.
Our carousel design enables you to park either 8 /10/12/14/ vehicles in the space of only 2. There is no need for a parking attendant, just insert the key and press your parking space number and the pallet will rotate either clockwise or counter clockwise. It will automatically sense which way to rotate by space number.
It is simple to operate with the Driver parking and leaving the vehicle in the system at ground level. Once the driver leaves the incorporated safety zone the vehicle is automatically parked by the system rotating to lift the parked car away from the bottom central position. This leaves an empty parking space available at ground level, for the next car to be parked on.
Technical Parameters:
Capacity per unit | From 8 to 14 cars(/8/10/12/14) in a space 5.5M X 6.5M | ||||
Type and Operation Method of Parking Device | Vertical rotation type | ||||
Spec. of Vehicles to be Accommodated | length | width | height | weight | |
| 5200mm | 1850mm | 1600mm/2100mm | 1880kg/2300kg | |
Spec. of Drive Part | Drive Motor | SEW 7.5kw or 9.2kw × 4P & D.C brake | |||
Rotating Speed | 4-6/min | ||||
Rotating Type | Vertical rotation by chain and sprocket | ||||
Spec. of Electric Control Part | Operation Control Type | PLC type (basic) | |||
Control Method | Push button (basic) and IC card | ||||
Power Source | Optional | ||||
Safety devices | 1. emergency stop system 2. limiting device 3. Photoelectric detection device for over size car 4. Photoelectric detection device for people 5. Photoelectric self-lock system 6. Anti-fall system 7. Fence |
Company Information

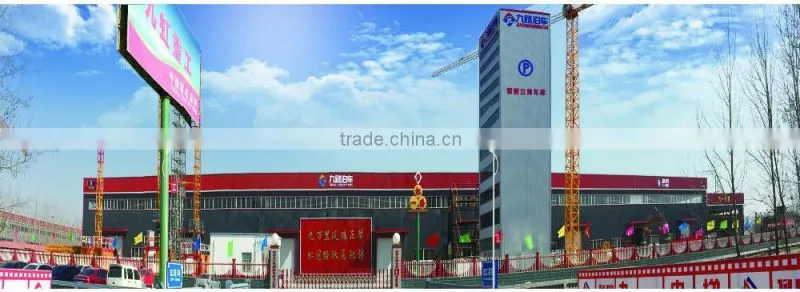

Workshop

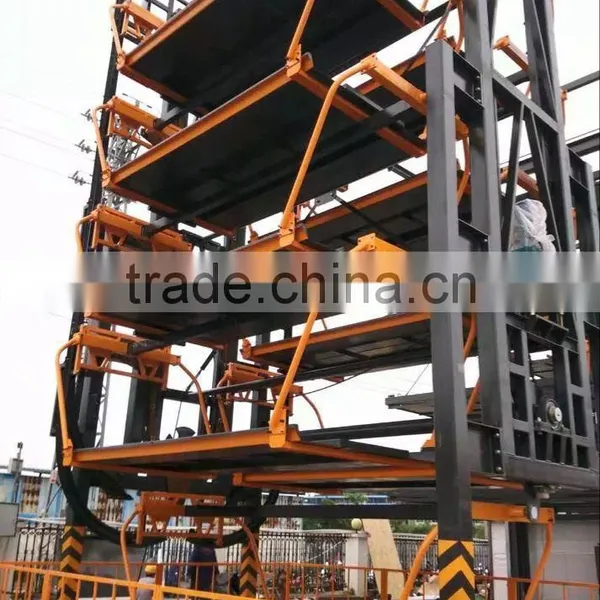

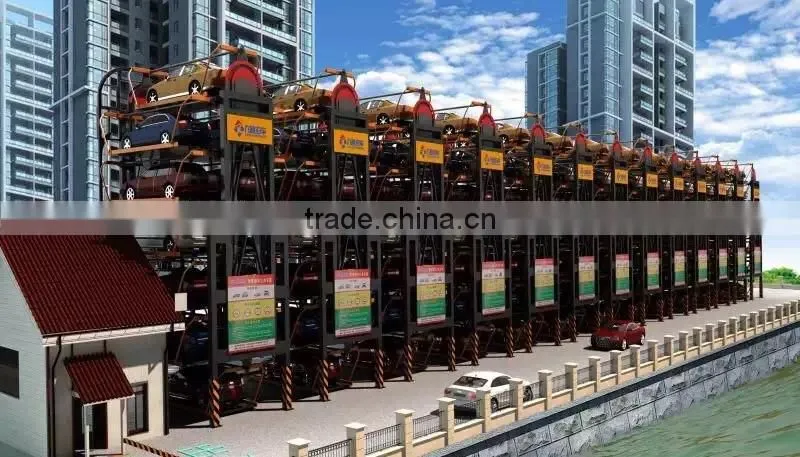

Project case installation:
Customer visit:

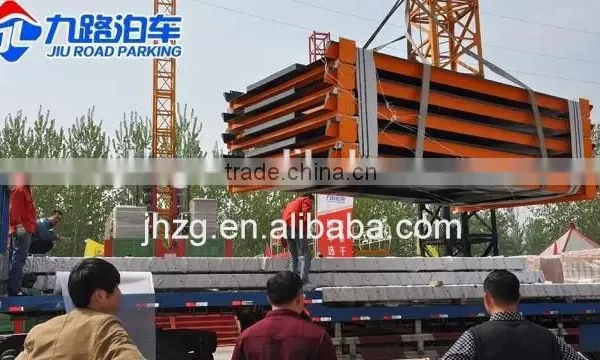

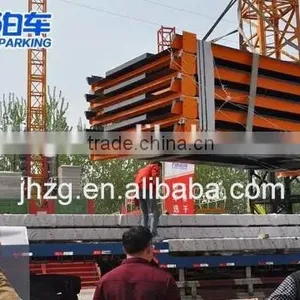

Shipment
Shandong Jiulu Parking Equipment CO.,LTD
Registered capital of RMB 50 million.Work shop space covering9600 square meters. Company has more than 500 staffs, senior engineer 8 persons, engineer 23 persons. With professional advanced manufacturing machine: NC Gantry Milling machine, CNC machining, Robot welding machine,Plasma cutting machine,advanced testing equipment,shot blasting machine, wave plate molding machining, Automatic spray line, car frame testing machine, finished products testing machine, full set of machinery.
Jiulu parking mechanical cubic parking equipment integrated research and development, design, manufacture, installation and after-sale service.
Parking equipment Main products:
Vertical Rotary automated parking system
