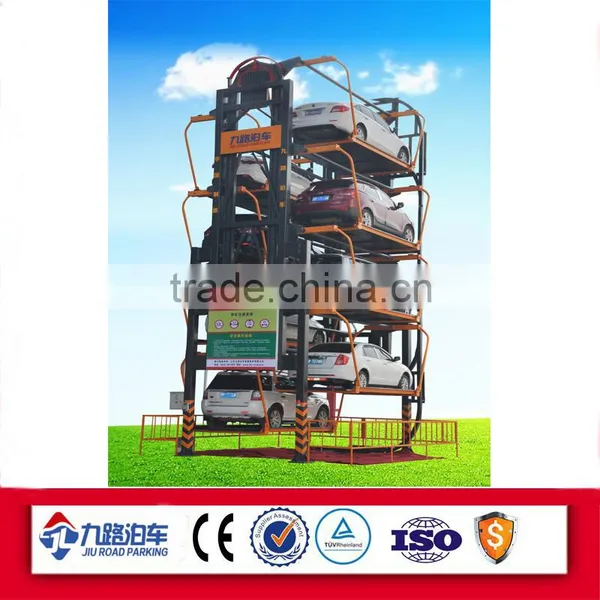

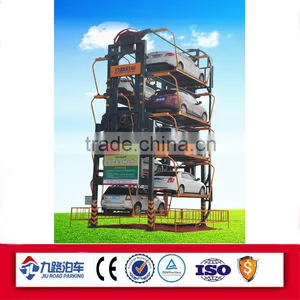

Vertical parking garage
Features and advantage:
1. Within the space for 2 cars, it will be able to park up to 16 cars, It’s the most ideal parking solution for the squeezed space.
2. Easy to install in left-over or small area
3. Fast and easy installation because of the adoption of building block design concept.
4. Easy to relocation and reinstall.
5. low maintenance cost.
6. Fully automated operation.
7. Extremely lowest noise in the mechanical parking industry.
8. Low electrical power consumption.
9. Stable running, Car plate come to the groud without swing
10.Manufactured to ISO 9001: 2000 standards.
Operating Principle
The rotary parking system consists of one automated mechanical system, which rotates at an angle of being perpendicular to the ground. It is driven by the motor+chain+chain wheel and runs in a rotating way. When someone wants to park or retrieve car, the needed parking pallet will be rotated to the ground level. Then the car can be parked or retrieved directly.
Technical Parameters:
No. |
Name |
Instruction |
|
1 |
Vehicle Size |
Length(mm) |
5000 |
Width(mm) |
1850 |
||
Height(mm) |
1550 |
||
2 |
Vehicle Weight(Kg) |
1850 |
|
3 |
Max number |
8/10/12/14/16 |
|
4 |
Driven Mode |
Motor+Chain |
|
5 |
Operation Mode |
Manual button or IC card |
|
6 |
Power Supply |
AC380v/220v 50Hz |
|
Workshop

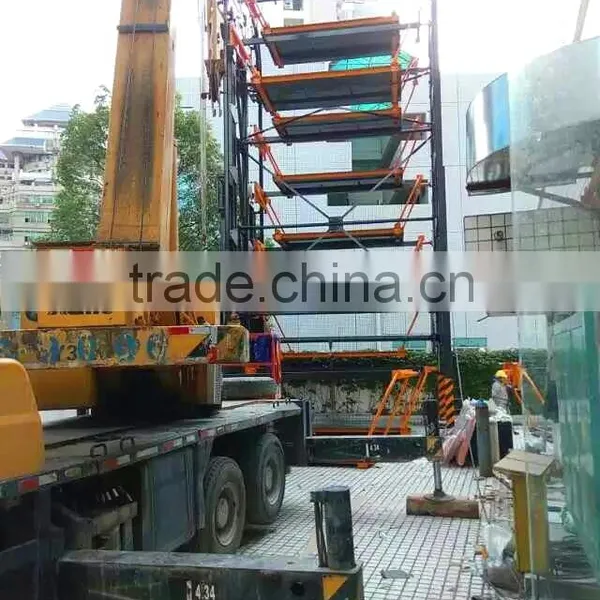

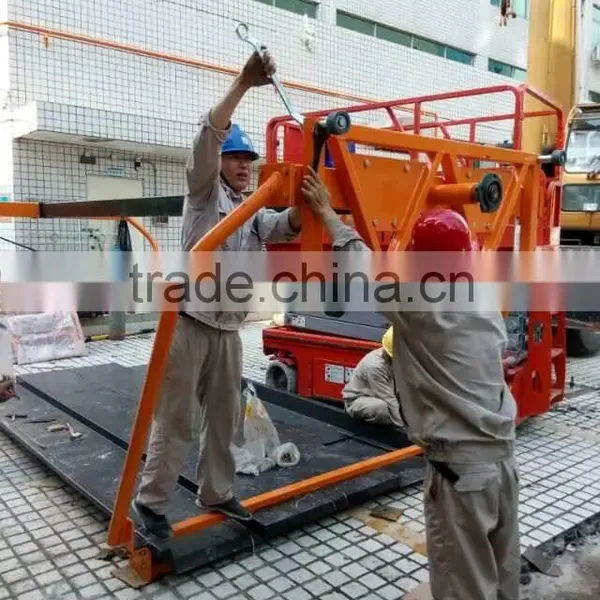

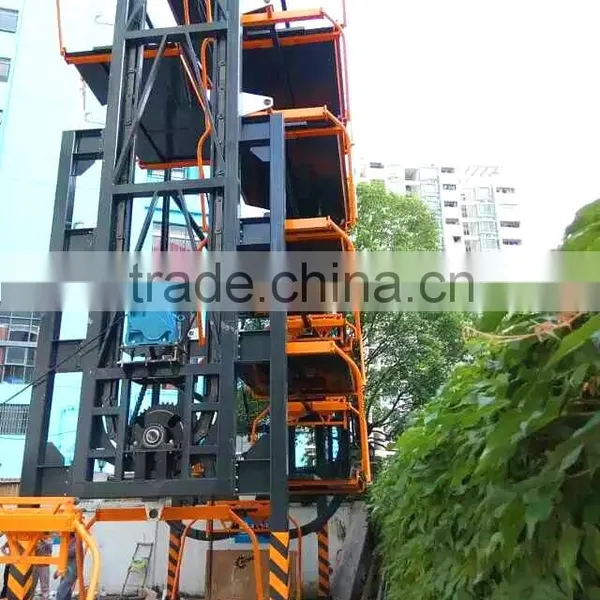

Project case installation:
Customer Visit:

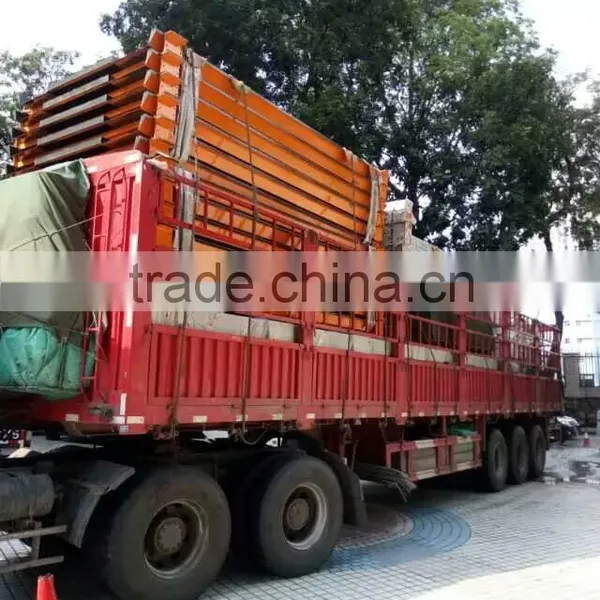

Shipment
Shandong Jiulu Parking Equipment CO.,LTD
Registered capital of RMB50 million.Work shop space covering 9600 square meters. Company has more than 500 staffs, senior engineer 8 persons, engineer 23 persons. With professional advanced manufacturing machine: NC Gantry Milling machine, CNC machining, Robot welding machine,Plasma cutting machine,advanced testing equipment,shot blasting machine, wave plate molding machining, Automatic spray line, car frame testing machine, finished products testing machine, full set of machinery.
Jiulu parking mechanical cubic parking equipment integrated research and development, design, manufacture, installation and after-sale service.
Parking equipment Main products:
Vertical Rotary automated parking system, vertical lift parking lift(Tower parking system)
Lift-sliding parking system,simple lifting parking device,Car elevator,Plane moving stacker and other parking facilities.
We insist on market-oriented, technology support, advanced performance and reliable quality products, provide first-class after-sales service, supply customers a full range of parking management system,supporting warehouse and parking equipment, intelligent storage-related products,service and technical support.
"Patriotic, dedicated, honesty, and trustworthy" is the purpose of the Jiulu. Shandong Jiulu parking equipment Co., LTD., look forward to working with you and win-win "Parking choose Jiulu,Convenient to every parker .”
For further information needed, please feel free to contact me as the following information:
