HVMF High Flow Quick Open Of Multiple Bag Hepa Filter /
bag filter housing /stainless steel multi-cartridge filter housing / bag filter housing factory
Quick open of multiple bag vessel, newly design. The vessel opens time less than 30 seconds. It is quick, safe, simple, and efficient. It is suitable for high flow rate, changing filter bags frequently, or very short time for replacing filter bags.

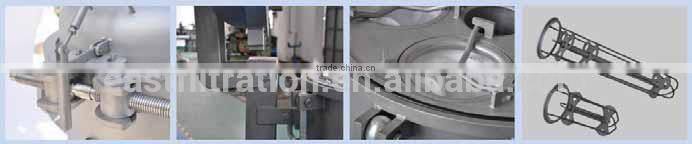

- Hoop quick open and the spring lift the top cover.
- The top cover can be open quickly, safely, simply. Easy to change thefilter bags and cost effective.
- Each filter bag has the locking device and Ensure the sealing well.
- ASME Designs standard.
- Multiple bag filter is from 3 bags to 12 bags.
Filter Type | Size | No. of Filter Bag | Theoretical Flow Rate | Max. Operating Pressure | Max. Operating Temperature | Filter Area | Inlet/Outlet |
HTMF-02-B-2-10-065G | #02 | 2 | 80 m³ /hour | 10.0bar | 120℃ | 1.0 m2 | 3” - 4” |
HTMF-03-B-2-10-080G | #02 | 3 | 120 m³ /hour | 10.0bar | 120℃ | 1.5 m2 | 3” - 4” |
HTMF-04-B-2-10-100G | #02 | 4 | 160 m³ /hour | 10.0bar | 120℃ | 2.0 m2 | 3” - 6” |
HTMF-05-B-2-10-125G | #02 | 5 | 200 m³ /hour | 10.0bar | 120℃ | 2.5 m2 | 4” - 6” |
HTMF-06-B-2-10-150G | #02 | 6 | 240 m³ /hour | 10.0bar | 120℃ | 3.0 m2 | 4” - 6” |
HTMF-08-B-2-10-200G | #02 | 8 | 320 m³ /hour | 10.0bar | 120℃ | 4.0 m2 | 6” - 8” |
HTMF-10-B-2-10-250G | #02 | 10 | 400 m³ /hour | 10.0bar | 120℃ | 5.0 m2 | 8” - 10” |
HTMF-12-B-2-10-300G | #02 | 12 | 480 m³ /hour | 10.0bar | 120℃ | 6.0 m2 | 8” - 10” |
·Chemical
·Pharmaceutical
·Food & Beverage
·Paint
·Automotive Coating
·Oil Refinery
·Marine
·Water Treatment
