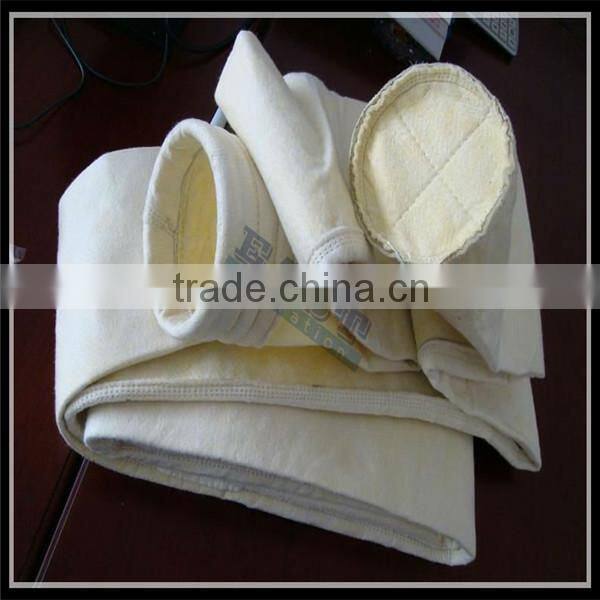

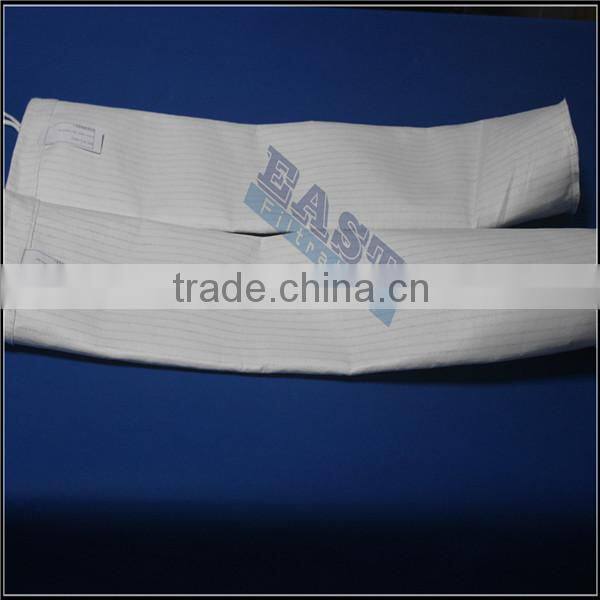

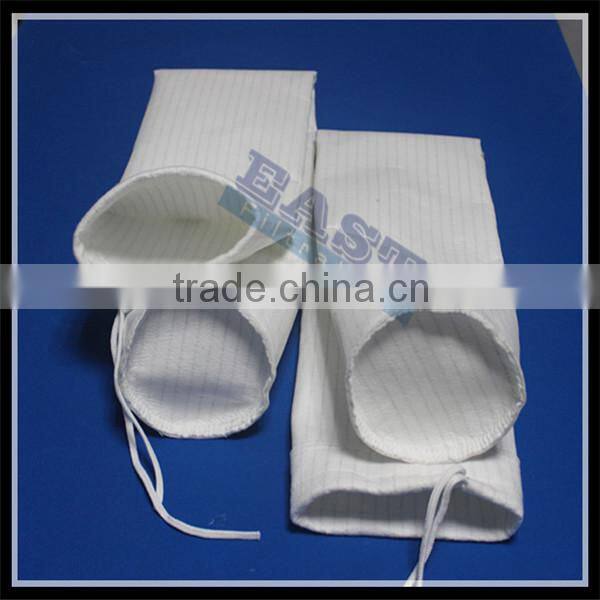

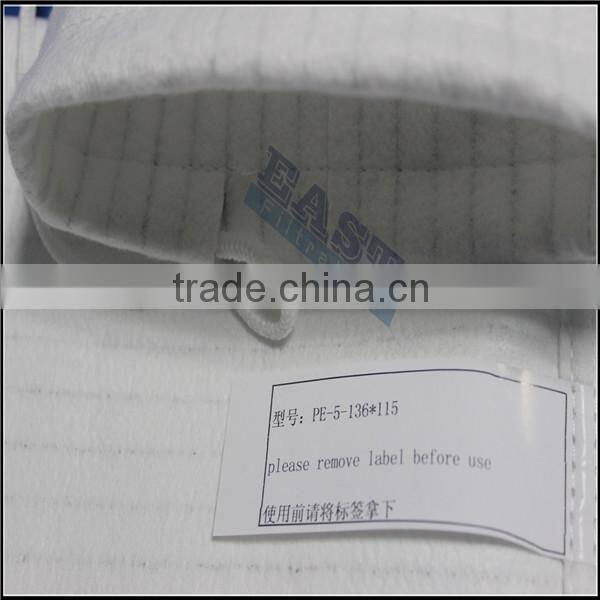

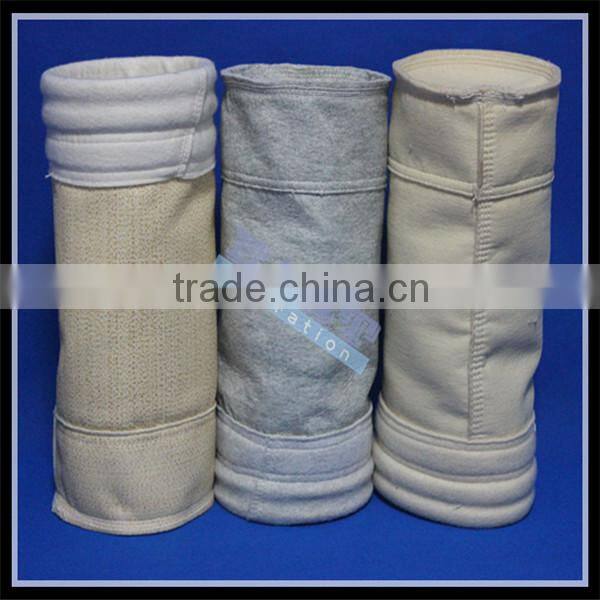

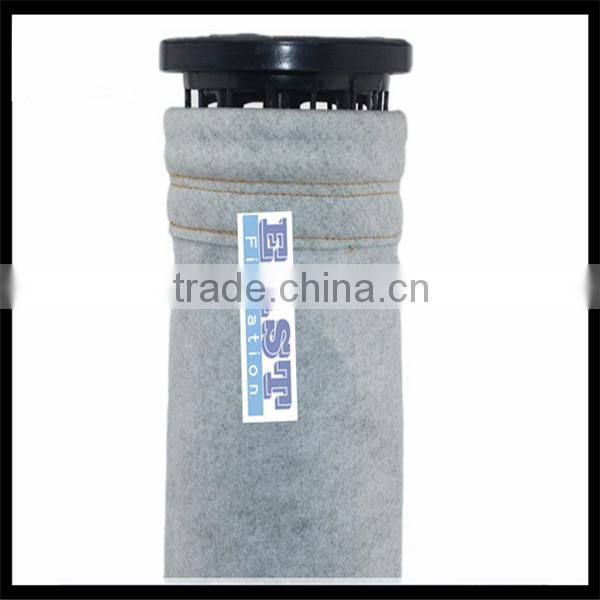

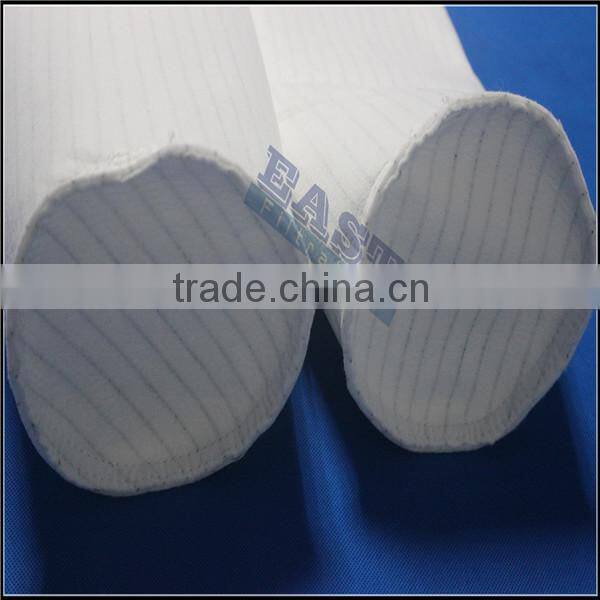

Industrial Mill For Flour Dust Filter Bag
- 300000 Piece / Pieces per Month
- Shanghai port
Product Details
Place of Origin: | Shanghai, China | Brand Name: | EAST | Model Number: | PP-PE (01-05) |
Type: | Pocket Filter | Usage: | Dust Filter | Material Of Bag: | Other, PP,PE,PO,NMO,PEM,PES |
Product Description
Industrial Mill For Flour Dust Filter Bag Manufacturer
Polyester needled felt non-woven filter media using acupuncture techniques, and by the heat-setting and other treatment methods are made widely used industrial catch dust, dust control and so on. Polyester needled felt has good air permeability and after heat treatment, surface smooth, it is not easy deformation, easy cleaning.
The technical data of Polyester needled felt
Article Name | Polyester needled felt | |
Ingredients | Fiber | 100%PET |
Scrim | 100%PET | |
Weight | g/m2 | 500 |
Thickness | mm | 1.7 |
Density | g/m³ | 0.29 |
Permeability | L/dm2.min | 130 |
Tensile breaking strength(N/5cm) | Warp | ≥1200 |
Weft | ≥1500 | |
Elongation @200N/5cm | Warp | ≤5 |
Weft | ≤5 | |
Maximum shrink of 90 mins | Temperature(°C) | 150 |
% | ≤1 | |
Service Temperature(°C) | Continuous | 130 |
Instant | 150 | |
Finishing | Heat setting, Singeing, calendaring |
Type | Dia | length | Max flow M3/Hr | Filter area M2 | Volume (L) | ||
inch | mm | inch | mm | ||||
1# | 7 | 177.8 | 17 | 431.8 | 20 | 0.25 | 8 |
2# | 7 | 177.8 | 32 | 812.8 | 40 | 0.50 | 17 |
3# | 4 | 101.6 | 9 | 228.6 | 6 | 0.09 | 1.3 |
4# | 4 | 101.6 | 15 | 355 | 12 | 0.16 | 2.5 |
5# | 6 | 152.4 | 20 | 508 | 18 | 0.20 | 3.8 |
1.Paints & lacquer industry
2.Waste water treatment
3.Pharmaceutical industry
4.Food industry
5.Chemical industry
6.Beer, wine & spirit industry
7.Adhesive.
