Manufacture Standard Mast Section for QTZ series tower crane
With Hydraulic Self-raising Mechanism,
Variable-frequency Slewing Mechanism,
Safety Monitoring System (Black Box)
With Operation Data Display Screen
With Famous Jiangte Motors
With Various Safety Devices
Shandong Jiuhong Heavy Industries Co.,Ltd.Which is the largest Construction Machinery Manufacturer Company in the North of China for 15 years with CE ISO GOST approved .Main Products include,Suspended Platform,Construction Elevator,Tower Crane,Building Hoist,Material Hoist,Concrete Spreader and all Parts for the above machines.
In the field of construction machinery,JIUHONG brand products have entered the international market,exported to West Europe,Americas, Eastern Europe,the Middle East,South east,South east Asia etc.
Our company covers an area of 72,000 square metres, with a total investmenmt of 50,000,000 yuan.
We can establish and improve the products of QTZ40 QTZ50 QTZ60 QTZ63. And each technical performance of the products achieves the leading level at home and abroad with good quality and best delivery time.
Shandong Jiuhong Company-Shandong Jiuhong Heavy Industries CO.,LTD
Internal Office and Strong Team to Gurrantee the Quality
We can Manufacture products of QTZ40 QTZ60 QTZ50 QTZ63
Specifications
Tower Crane QTZ40 QTZ50 QTZ60 QTZ63
1.CE, GOST, ISO Certificates
2.Top Brand in China
3.more than 15 years manufacture history
4.Export to more than 20 countries
QTZ series of tower cranes range from QTZ40 to QTZ63 (Max Load from 1t to 6t). With working radius varying from 40m to 150m, QTZ tower cranes are famous for their large operating ranges, varied working methods and wide uses.
Equipped with all necessary safety devices, these cranes show a good speed-control capacity, high work efficiency and satisfactory operating stability.
QTZ tower cranes can be widely used on the construction of high-rise buildings, industrial buildings, as well as cooling tower.
Our products are with high price-quality ratio and competitive price for you to choose.
| Product Type | Basic height(m) | Maximum height (m) | Jib Length(m) | Radius changing speed(m/min) | Maximum Working amplitude (m) | Maximum rated torque (KN.m) | Rated Lifting Moment:(T) | Main Specifications Steel String (mm) | Festiveal Standard Specifications (mm) |
| QTZ40(4808) | 30 | 120 | 48 | 34/22 | 3-48 | 400 | 4 | ∠160×160×12 | 1500×1500×2200 |
| QTZ40(4810) | 30 | 120 | 48 | 34/22 | 3-48 | 400 | 4 | ∠160×160×12 | 1500×1500×2200 |
| QTZ50(5008) | 30 | 120 | 50 | 34/22 | 3-50 | 400 | 4 | ∠160×160×12 | 1500×1500×2200 |
| QTZ63(5010) | 30 | 120 | 50 | 34/22 | 3-50 | 575 | 5 | ∠160×160×14 | 1600×1600×2500 |
| QTZ63(5013) | 40 | 151 | 50 | 44/22 | 3-50 | 630 | 6 | ∠160×160×16 | 1600×1600×2500 |
| QTZ63(5610) | 40 | 151 | 56 | 44/22 | 3-56 | 630 | 6 | <135×135×12 | 1800×1800×2500 |
Main Techinical Parameters of QTZ Series Tower Crane
5610Tower Crane Loading Capacity and Mechanism Characteristics

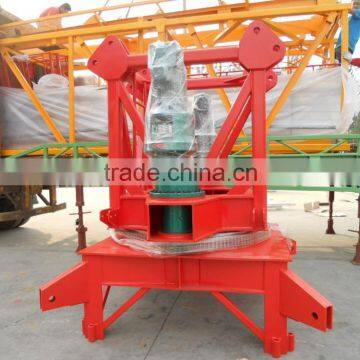

Pay Attention to Details: Parts of Tower Crane and production equipment
Workshop,Advance Manufacturing Machine,Panasonic Welding Robot

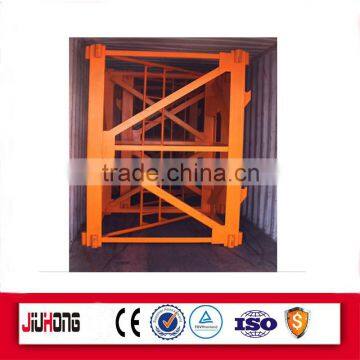

PACKAGING DELIVERY AND LOADING INTO CONTAINER
We have one year guarantee
Good after sale service
Engineer available to service machinery overseas
National certificates
Welcome to inquriy if you need
As we know that most your tower crane buying from China,as we are the largest tower crane manufacture in the north of china for many years,we can supply tower crane with best price for you.Why not contact us and let us talk the possibility to be work together?
Waiting for your call and email.
Contact:+86 13287547286
