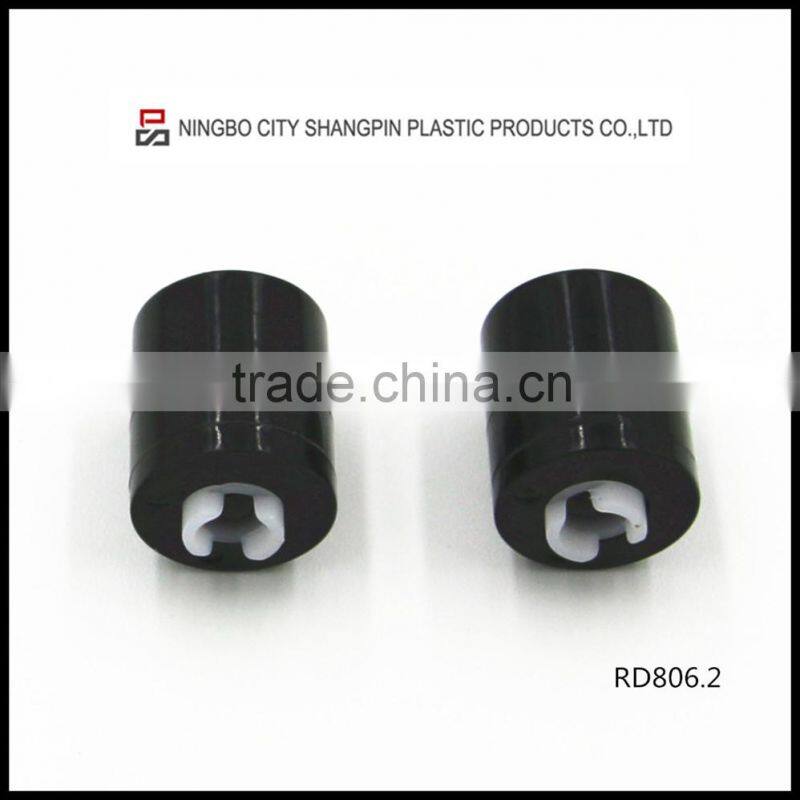

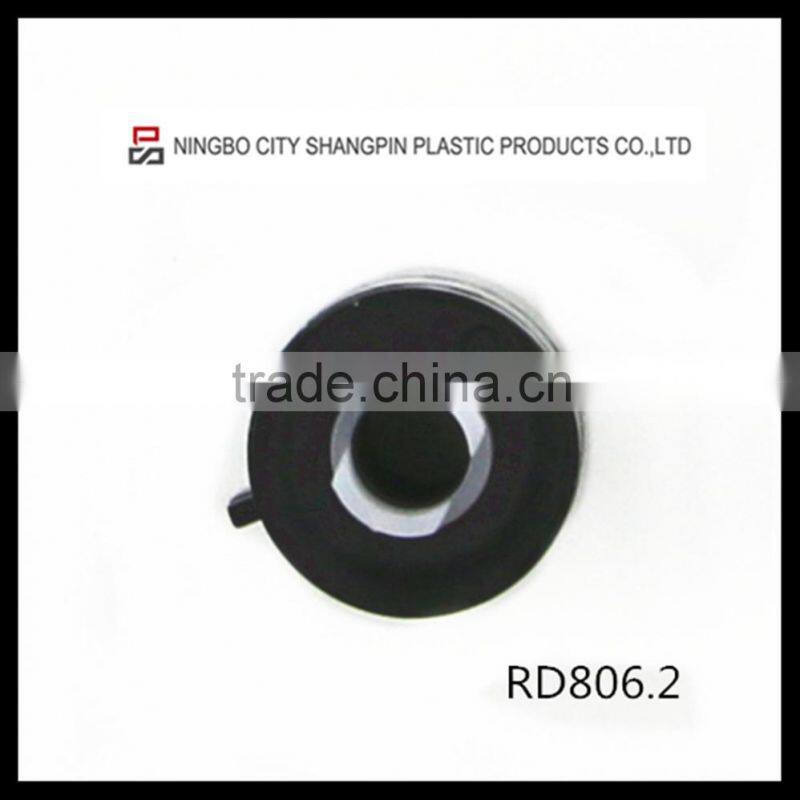

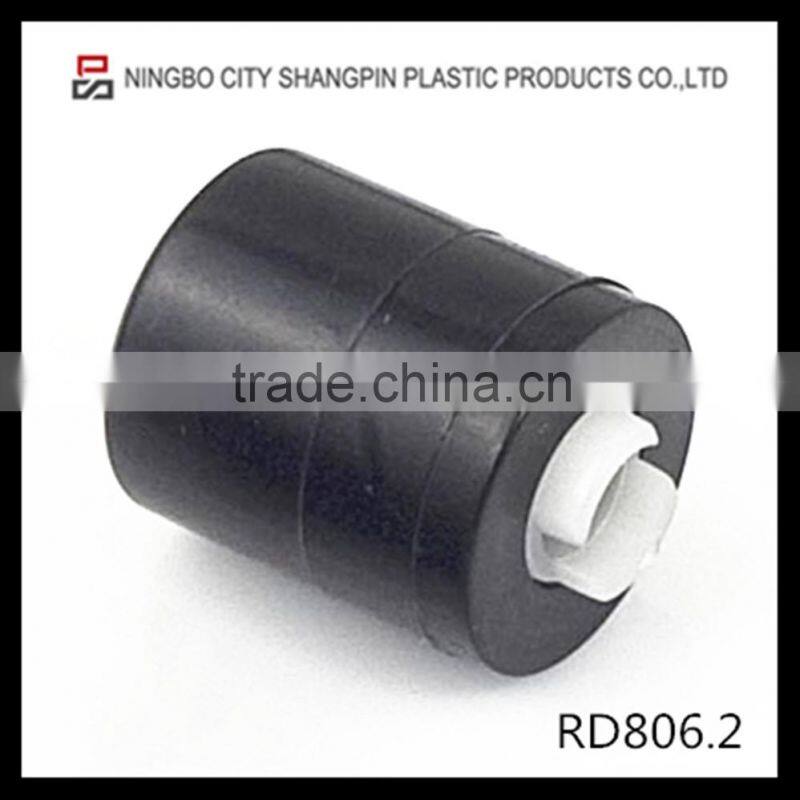

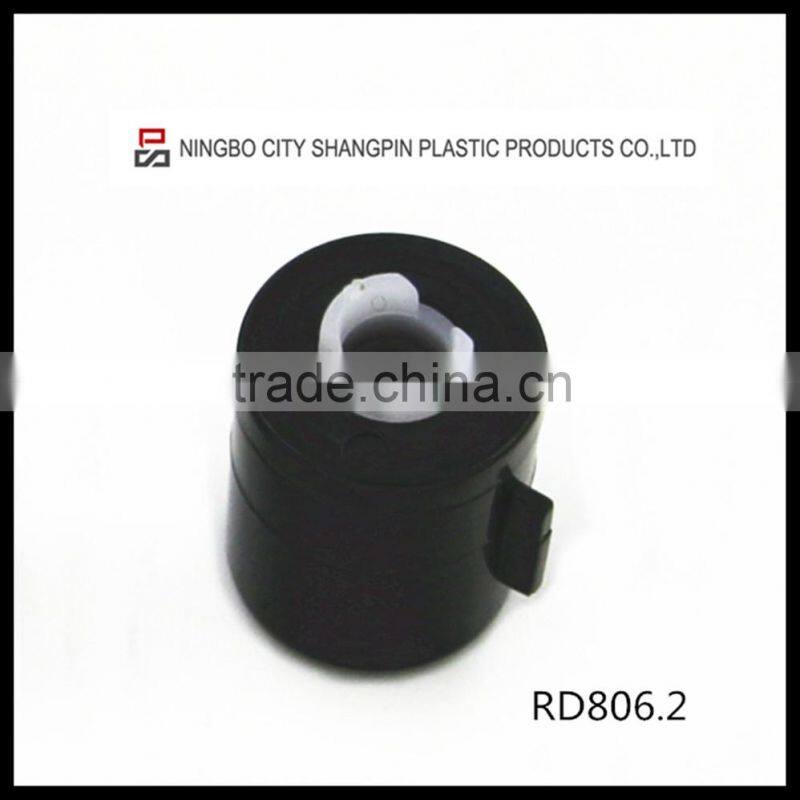

Rotary Damper Revolve Buffer Revolving Buffer Rotate Buffer With Competitive Price

  rotary damper revolve buffer  revolving buffer rotate buffer  with competitive price

rotary damper soft close dampers with competitive price

Damper  and  main effect

Our damper is a mechanical device designed to dissipate kinetic energy. It let machine reduce the noise and more satey for operator.When applied to other products such as toilet seat lid ,washer cover Upspring type floor socket,and ect. It will make cover slowly down so do not reduce noise and damage to products themselvies.Most importantly it will improve the service life of products and create perfect experience for customers.

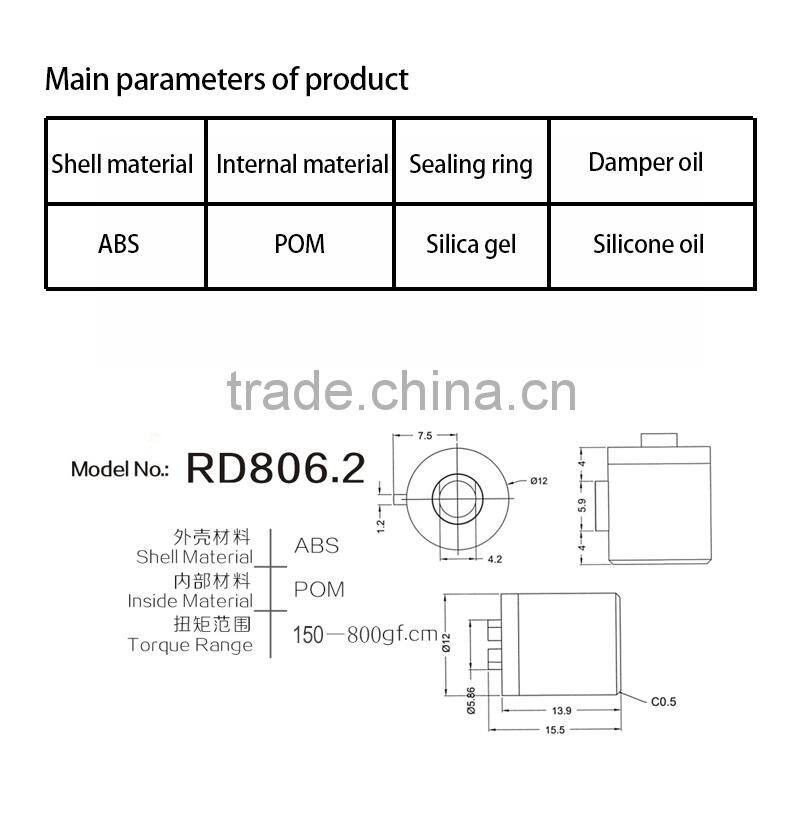

  Product structure:

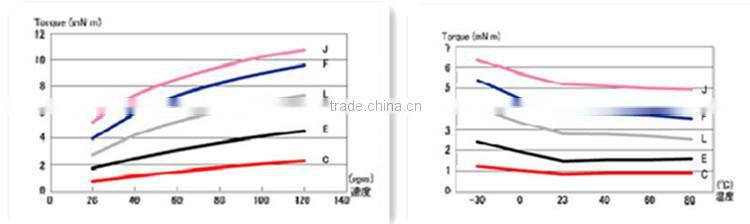

Temperature Characteristics:

Resistance of the damper will change according to the ambient temperature. The temperature could affect the sealing damping oil fluidity. If the temperature is higher, the fluidity will be higher, and the resistance is lower, the fluidity will be lower. The suitable temperature range is -40° C to 110° C.

Torque rotary characteristics:

Temperature Characteristics:

Test equipment:

Application:

Widely applied in all kinds of chairs, auto/ vehicle CD,mirrors,vehicle ashtray, garbage can, toilet cover, furniture drawer,cabinet, sound,cup holder, handle, card box,overhead sunglasses holderclothes holder,handle, fuel tank cap, storage compartment, roller blind,small-to-midsize boxes, flexible and slidable products.Create smooth movement andamping in application,effectively reduce noise and highly upgrade product

Function:

Bidirectional, by utilize the principle of fluid resistance to reduce the speed of moving parts and create a smooth and soft movement; it can be applied in different gear and torque device. Torque will be different at different temperature and rotation speed. Customers can mount the damper either bilaterally or with various clips according to specific need.

Condition of parameter setting:

 1. nominal  torque is measured  value under temperature of 20℃, humidity of  80 ℃,rotation speed of test rack motor of

     30r/m  after damper rotates for 50 cycles;

 vide  customized torque by changing  viscosity  of damper.

 3. the maximum operating temperature scope of damper:  -20º ~60º

 COMPANY INFORMATION:

 Shangpin devotes itself to the contribution in terms of mankind's mute technology and future, and will make our products

closer to the nature.  The rotary damper/closer series and related ancillary products manufactured by us  are widely applied

to industries as the household appliance, car interior, medical equipment,  household furniture, the seats for cinema and car,

toilet lid, bath assembly, industrial  equipment, piano musical  instrument  and  etc.

Shangpin integrates with mannufacturing  and marketing of products, and we're honored that we can provide our customers

with the overall solution so as to improve the customer satisfaction experience.

Shangpin will  always adhere to the "quality first , innovation in-hand" concept, and wishes to persistently  make contributions

to a better nature .

Requirements to usage and storage:

1. avoid the storage under extreme high or low temperature, and damp or sun exposure. Relatively  stable environment temperature and humidity should be kept.

2. avoid contact with corrosive chemicals such as acid,alkali and salt.

3. usage of such product under extreme high or low temperature , or vacuum or other exterme conditions should be banned; otherwise , the product failure or personal injury accident  may be caused;

4. usage of product under excessive force or excessive angle should be banned to aviod the likely product failure or personal injury accident and so on.

5.usage of such single product as shutdown device should be banned to avoid the likely product damage or personal injury

accident, and the product should be used together with upporting components.
