Rotary Stainless Steel Damper Round Revolve Buffer Revolving Buffer Soft Closing Rotary Damper

rotary stainless steel damper revolve buffer  revolving buffer

rotary stainless steel damper

Our damper is a mechanical device designed to dissipate kinetic energy. It let machine reduce the noise and more satey for operator.When applied to other products such as toilet seat lid ,washer cover Upspring type floor socket,and ect. It will make cover slowly down so do not reduce noise and damage to products themselvies.Most importantly it will improve the service life of products and create perfect experience for customers.

Our rotary dampers apply to Auto Sound clamshell, sitting WC pan clamshell, hospital bed and other electronic clamshell products. It reduces the nioses during the using process of the above products, advances the products level, and express the products humanity concept.

Temperature Characteristics:

Resistance of the damper will change according to the ambient temperature. The temperature could affect the sealing damping oil fluidity. If the temperature is higher, the fluidity will be higher, and the resistance is lower, the fluidity will be lower. The suitable temperature range is -40° C to 110° C.

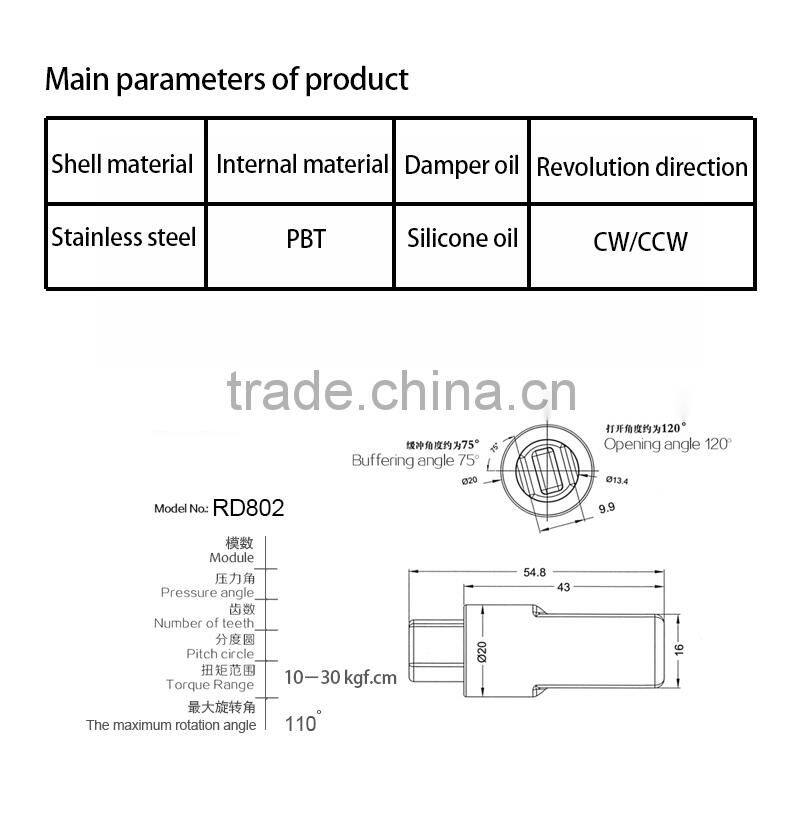

Torque rotary characteristics:

 temperature characteristics:

 Applications:

Our dampers are widely used in various appliance, such as double door refrigerator,washer cover, kettle cover, coffeemarker,toilet seat lid ,upspring type floor socket,cabinet door and car interior series like glasses case,roller blind and  handrail and ect.

Test equipment:

condition of parameter setting:

1. nominal  torque is measured  value under temperature of 20℃, humidity of  80 ℃,rotation speed of test rack motor of

    30r/m  after damper rotates for 50 cycles;

vide  customized torque by changing  viscosity  of damper.

3. the maximum operating temperature scope of damper:  -20º ~60º

COMPANY INFORMATION:

Shangpin devotes itself to the contribution in terms of mankind's mute technology and future, and will make our products

closer to the nature.  The rotary damper/closer series and related ancillary products manufactured by us  are widely applied

to industries as the household appliance, car interior, medical equipment,  household furniture, the seats for cinema and car,

toilet lid, bath assembly, industrial  equipment, piano musical  instrument  and  etc.

Shangpin integrates with mannufacturing  and marketing of products, and we're honored that we can provide our customers

with the overall solution so as to improve the customer satisfaction experience.

Shangpin will  always adhere to the "quality first , innovation in-hand" concept, and wishes to persistently  make contributions

to a better nature .

Requirements to usage and storage:

1. avoid the storage under extreme high or low temperature, and damp or sun exposure. Relatively  stable environment temperature and humidity should be kept.

2. avoid contact with corrosive chemicals such as acid,alkali and salt.

3. usage of such product under extreme high or low temperature , or vacuum or other exterme conditions should be banned; otherwise , the product failure or personal injury accident  may be caused;

4. usage of product under excessive force or excessive angle should be banned to aviod the likely product failure or personal injury accident and so on.

5.usage of such single product as shutdown device should be banned to avoid the likely product damage or personal injury

accident, and the product should be used together with upporting components.
