35/100/200kg Dual Plane Vertical Balancing Machine
Production Description
Single/Dual Plane Balancing

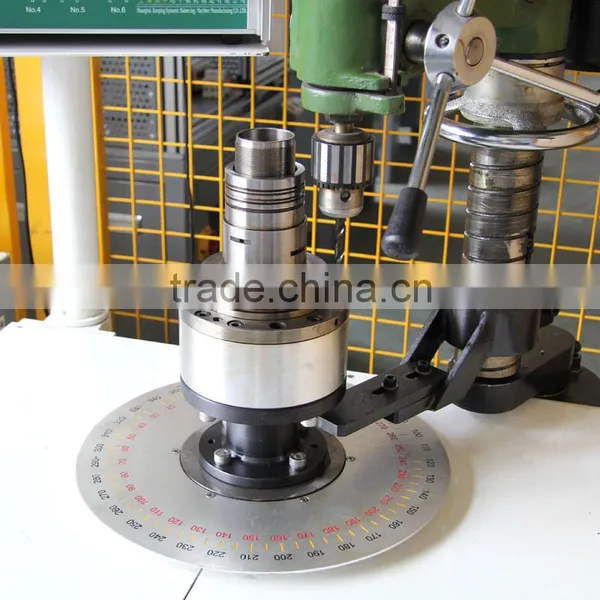

Pneumatic Clamp.Easy to load and unload
Specially Measuring System
Variable-Frequency Motor.Stepless Speed Regulation
JP-580 measuring System, Powerful function
Range of Application

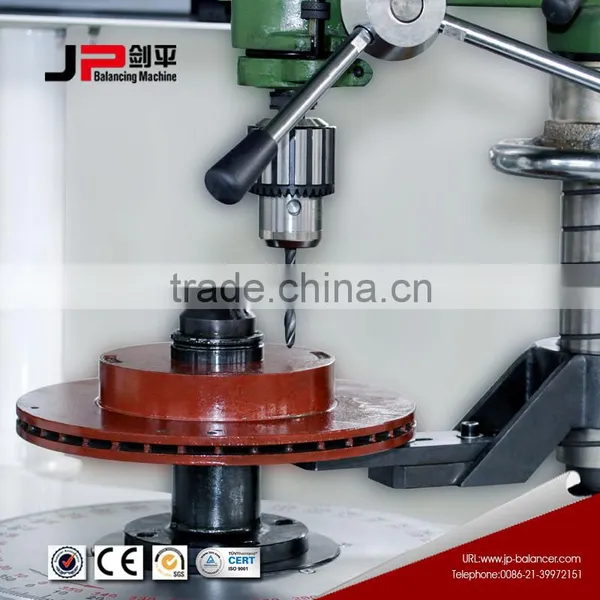

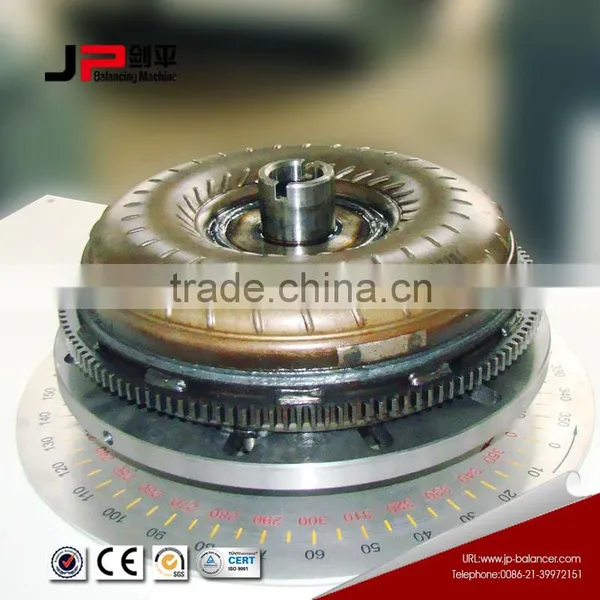

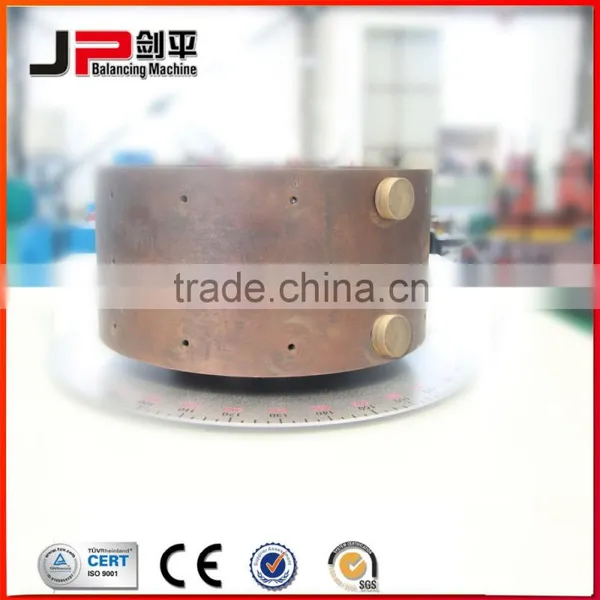

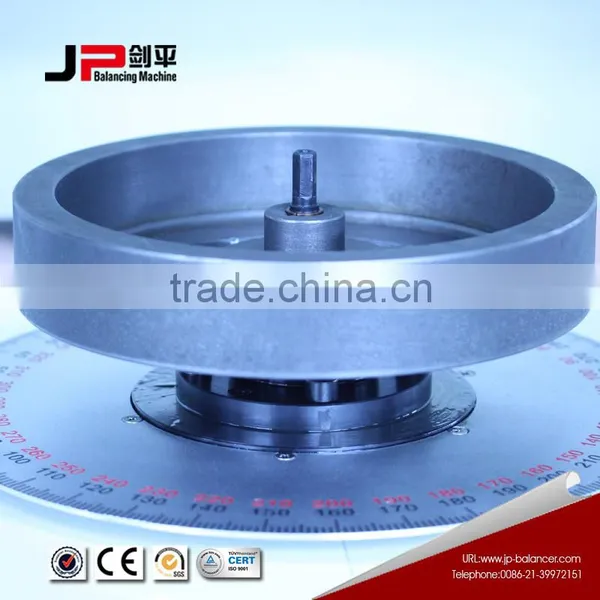

This machine is suitable for centrifugal fans, brake discs, brake drums, saw, water pump impeller, flywheel, grinding wheel, saw blades and other disc-shaped workpieces single / double plane balance testing
Special Features
Dual Plane Vertical Pneumatic Spindle Balancing Machines adopted pneumatic clamp.specially measuring system.equipped with special clamp.it can achieve pneumatic hold and realx of clamp.Easy to load and unload.with high precision and efficiency.especially suitable for mass production of workpieces

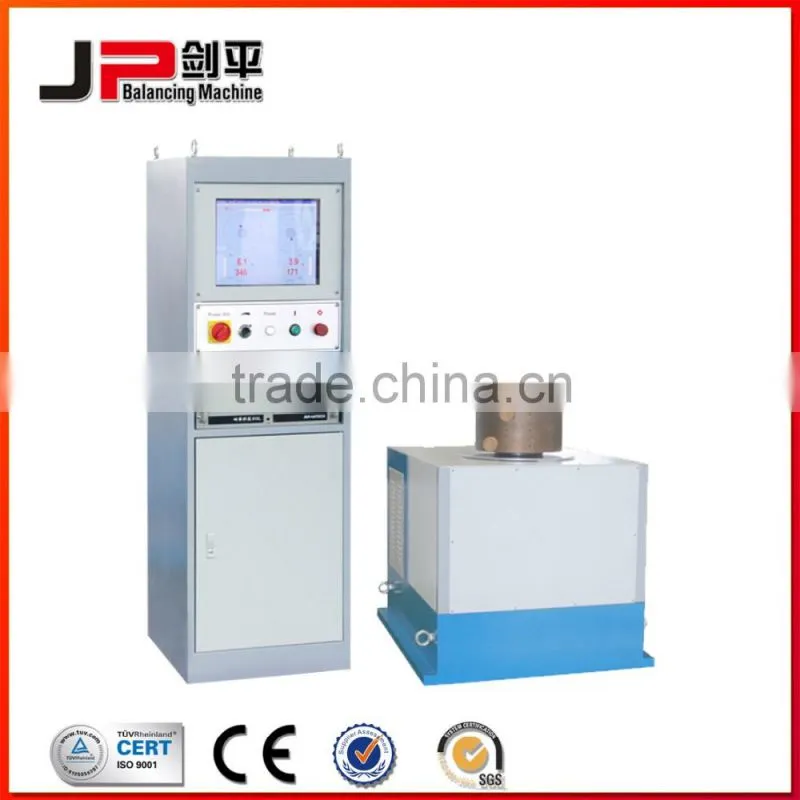

Dual-Plane Vertical Balancing Machines
Electrical Measuring System (Option)
Production Parameters
| Technical data at a glance | PHLS-35Q | PHLS-100Q | PHLS-200Q |
| Max Mass of Workpiece (kg) | 35 | 100 | 200 |
| Max Diameter of Workpiece (mm) | Φ800 | Φ600 | Φ600 |
| Height of workpiece(mm) | 200 | 300 | 300 |
| Spindle speed(r/min) | ~500 | ~500 | ~500 |
| Motor power(kw) | 1.53) | 33) | 33) |
| Min Achievable Residual Unbalance Amount (emar) | 4g · mm/kg | 4g · mm/kg | 4g · mm/kg |
2) Without hood
Factory Outlook
Certificates
Material inspection
Production Process-Measuring system
easuring system
Production Process-Mechanical parts
Workshop debugging
Delivery inspection
Package and transport
