Help CenterBlower Fan Motor Balancing Machine
Related Products
-
Dynamic Balancing Machine for FanUS$ 1,000 - 20,000MOQ: 1 Set -
Universal Joint Drive Balancing MachineUS$ 100 - 100,000MOQ: 1 Set
-
Balancing Machine in Test EquipmentUS$ 100 - 100,000MOQ: 1 Set
-
Balancing Machine for Centrifuge FanUS$ 1,000 - 20,000MOQ: 1 Set
-
Turbine Rotor Balancing MachineUS$ 1,000 - 20,000MOQ: 1 Set
Production Description
• The durable and reliable sensor possesses high sensitivity
• The permanent calibration brings high accuracy

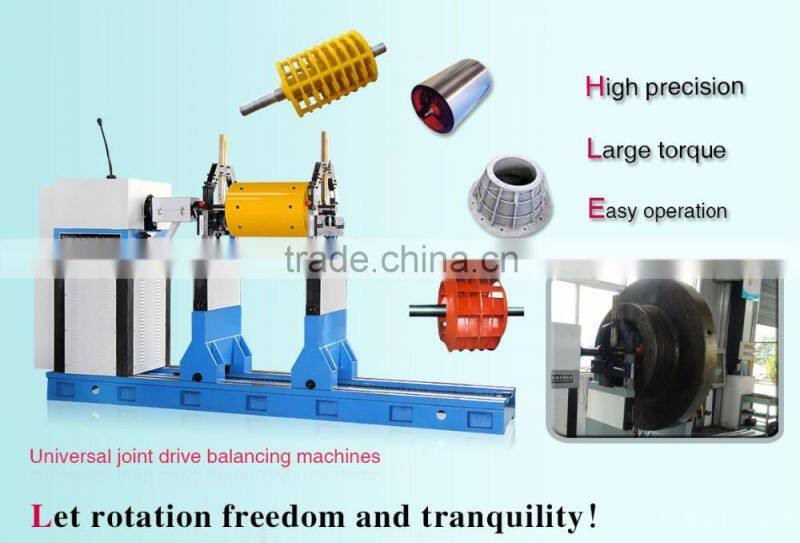

• Driven by universal coupling,transmit the power steadily
• Applicable to rotors which can't be driven by belt or need large power
• Advanced electrical measuring system and friendly man-machine interface
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.
Production Parameters
Technical data at a glance |
PHW-5000 |
|
Mass Scope of Workpiece (kg) |
5000 |
|
Max Diameter of Workpiece (mm) |
2400 |
|
Distance Between Two Support Bearings (mm) |
Min:320 |
|
Journal Diameter Scope of Workpiece (mm) |
40-380 |
|
|
Max Distance between Driving Flange and Right Bearing Support (mm) |
2500 |
|
Rotation Speed of the Main Axis (r/min) |
195,336,561,916,13741) |
|
Motor Power (kw) |
15 |
|
Torque of Universal Joint Shaft (N·m) |
1250 |
|
Min Achievable Residual Unbalance Amount (emar) |
1g· mm/kg |
2) Frequency conversion
After Sale Service
| Professional engineer and application specialists respond to your requests efficiently | |
| Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer | |
| Follow up the case, record the entire process. Solution will be provide with 24 hours | |
| Meanwhile,the problem complaint will be reported to QC department | |
| QC will find defect from which department ,who is in charge to identify responsibility | |
| Collecting and record customer respond,suggestion,requirement |
About Us
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co.,Ltd. is a professional manufacturer of dynamic balancing machine,which is high-tech technology enterprises of Optical-electro-mechanical Integration ,
There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine
Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
Factory Outlook
Certificates
Material inspection
Production Process-Measuring system
easuring system
Production Process-Mechanical parts
Workshop debugging
Delivery inspection
Package and transport
