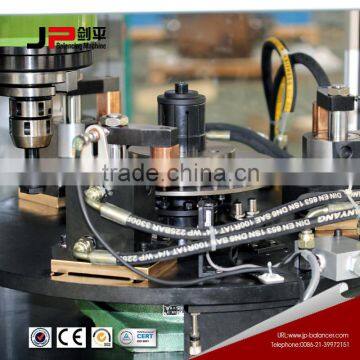

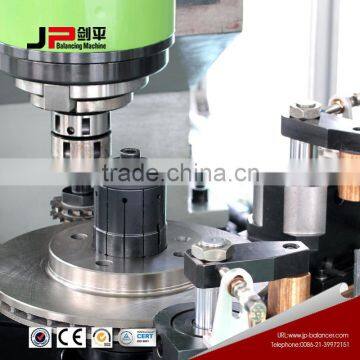

Brake Drum Automatic Balancing Correction Machines in hot sale
Production Description
1.Manual loading and unloading
2.15-inch touch screen
3.Advanced balancing measuring software
4.Automatic measure,automatic milling and correction,automatic retest
5.Rigidity structure design,with a longer use life
Range of Application
Two-Station Automatic Balancing Correction Machine is designed specially for rotors’balance measurement and correction.which use end face to remove weight,It can connect rotor production line to achieve automatic production
Production Parameters
Data Rotors | |
| Max Mass of Workpiece(kg) | 35 |
| Max Diameter of Workpiece (mm) | 450 |
| Balancing Unit Parameter | |
| Spindle Speed (r/min) | 800 |
Motor Power(kw) | 1.5 |
| Min Achievable Residual Unbalance Amount (emar) | 5g· mm/kg |
| Unbalance Correction | |
Maximum Milling Depth(mm) | Depending on rotor |
| Maximum Milling Width(mm) | Depending on rotor |
| Cutting Speed(r/min) | 900 |
| Cutting Spindle Motor Power(kw) | 2.2 |
| Maximum Milling Angle(degree) | 0-90 |
| Milling Cutter Range(mm) | 60-125 |
| Machine Parameter | |
| Power(kw) | 6 |
| Weight(ton) | 1.5 |
| Dimensions(mm) | 900*1600*1800 |

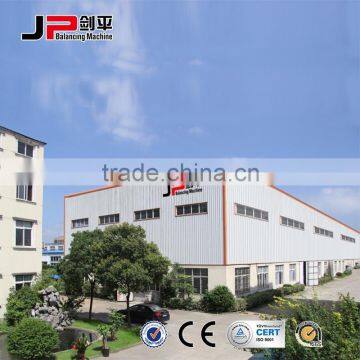

Factory Outlook
Certificates
Material inspection
Production Process-Measuring system
Production Process-Mechanical parts
Workshop debugging
Delivery inspection
Package and transport
