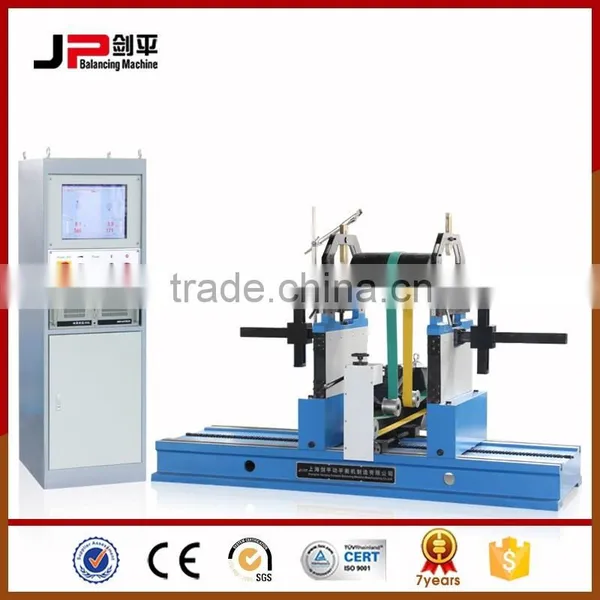

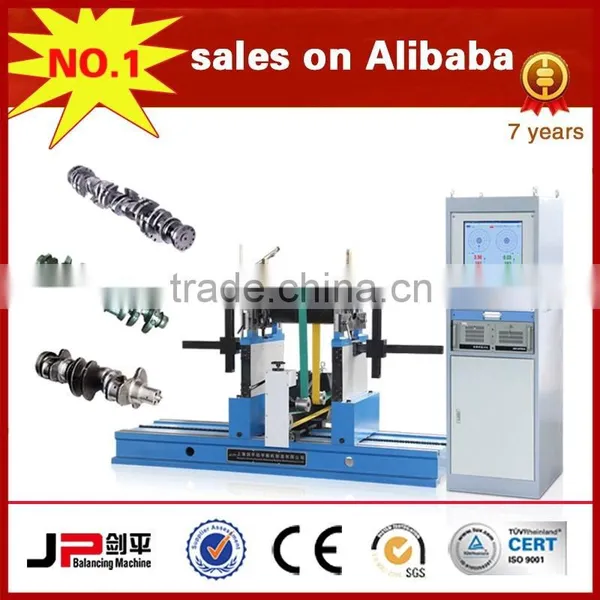

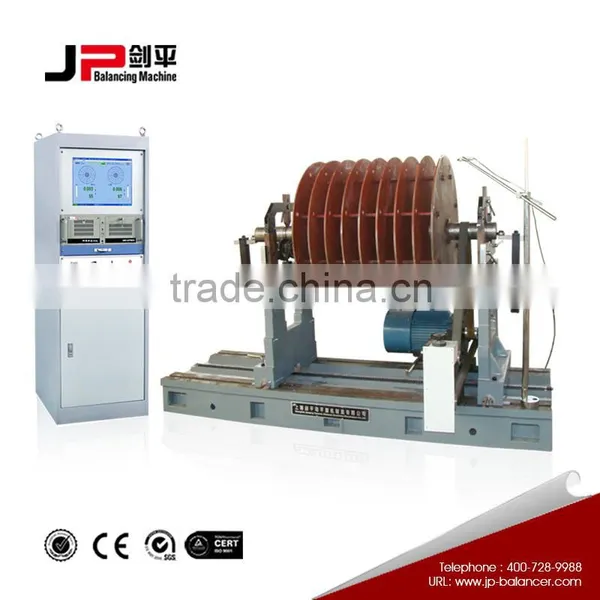

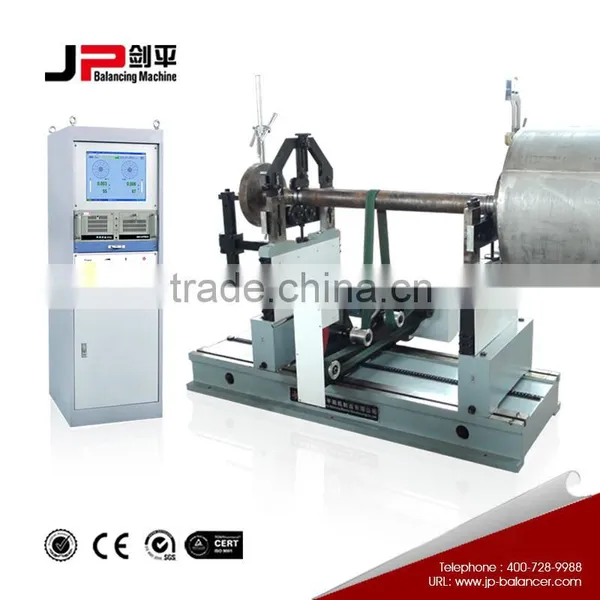

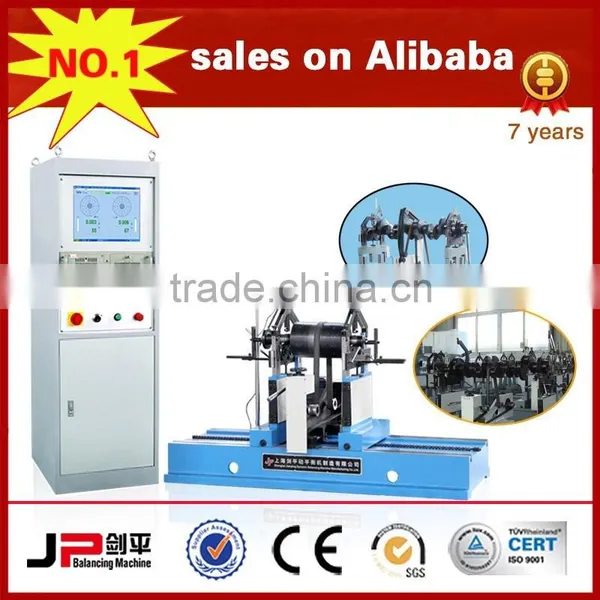

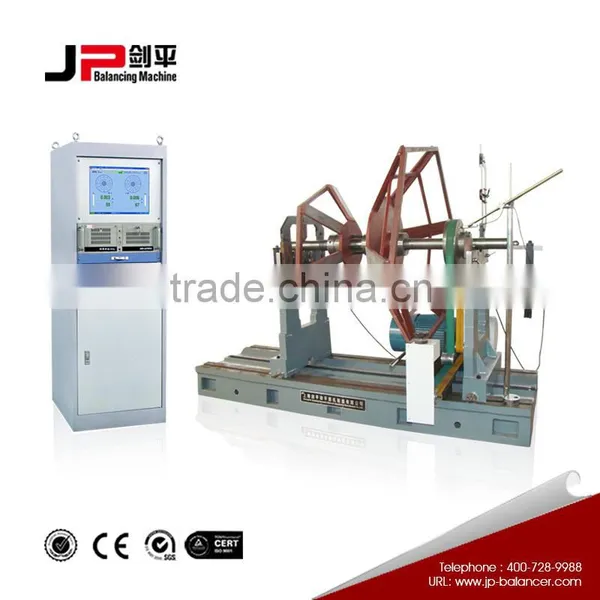

belt drive Balancing Machine for propeller ,crankshaft etc

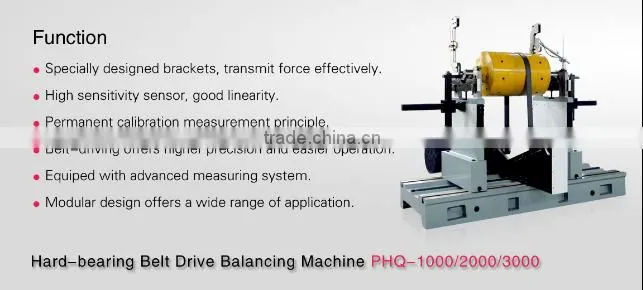

Production Description
• Specially designed brackets transmit mechanical force with low vibration damping and high rigidity
• Durable and reliable sensor possesses good linearity
• Permanent calibration brings high accuracy with a permission of large initial unbalance amount
• Belt-driving offers higher precision and easier operation
• Advanced electrical measuring system and friendly man-machine interface
• Modular design offers a wide range of application
Range of Application

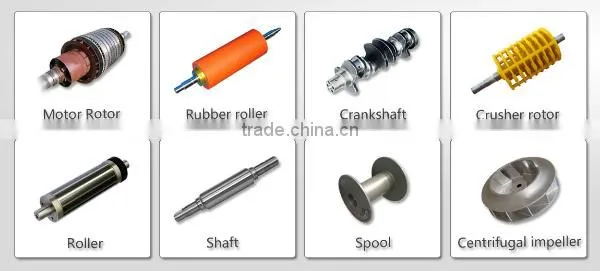

This balancing machine is widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency
Production Parameters sheet
Specification |
Parameters |
Max Mass of Workpiece (kg) |
2000 |
Maximum Diameter of Rotor(mm) |
Ø1800 |
Distance between Two Support Bearings (mm) |
160-2280 |
Journal Diameter Scope of Workpiece (mm) |
StandardØ25~120 Can increase toØ120~240 |
Diameter Scope of Driving Belt (mm) |
Ø800 |
Rotating Speed when the Diameter of Operating Transmission is 100mm (r/min) |
684,986 + Stepless speed regulation |
Motor Power (kw) |
5.5(AC frequency) |
the bed length |
2500 |
Min Achievable Residual Unbalance Amount (emar) |
Min 0.5g· mm/kg |

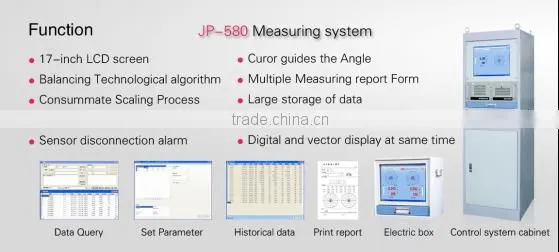

The JP-580 computer controllers description as follows :

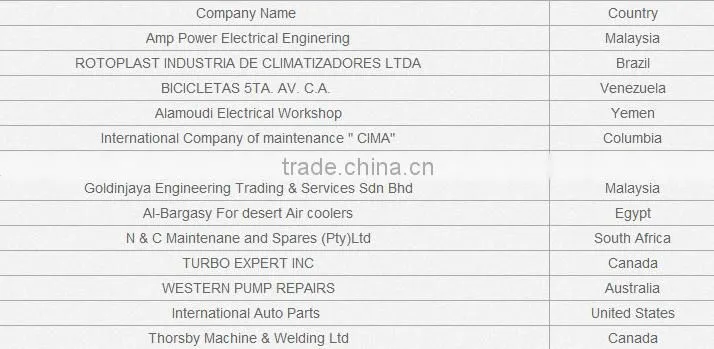

coperation customer
