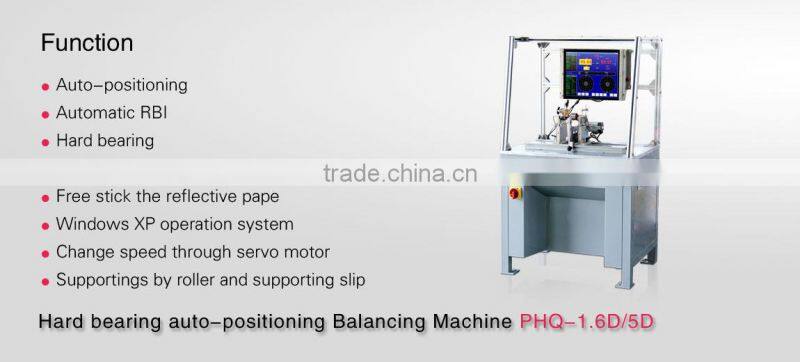

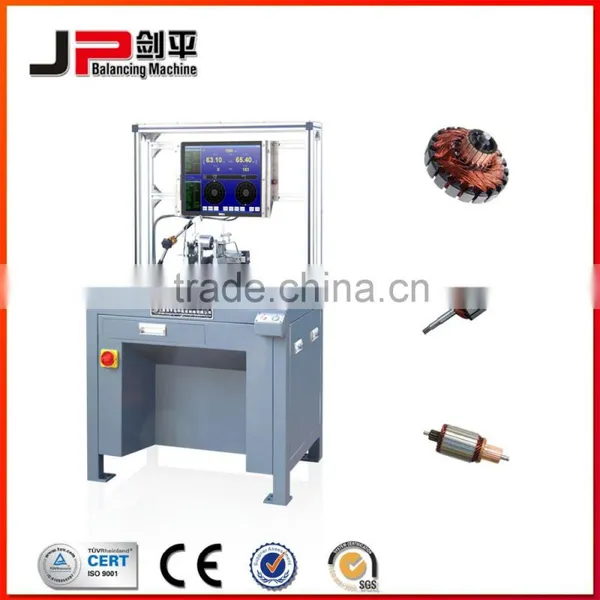

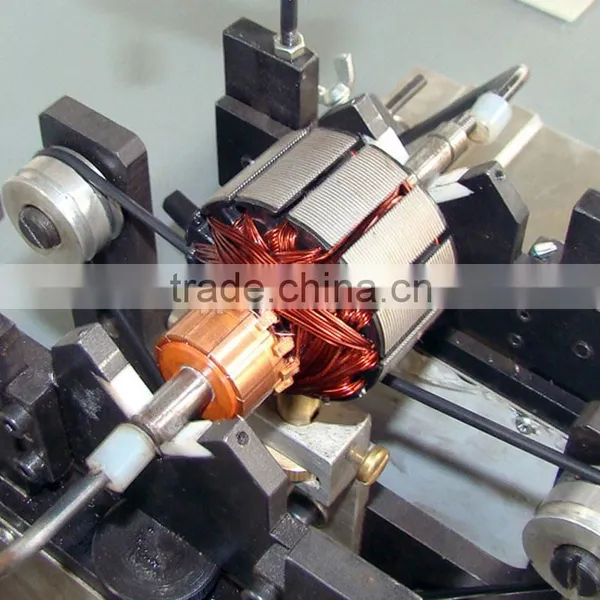

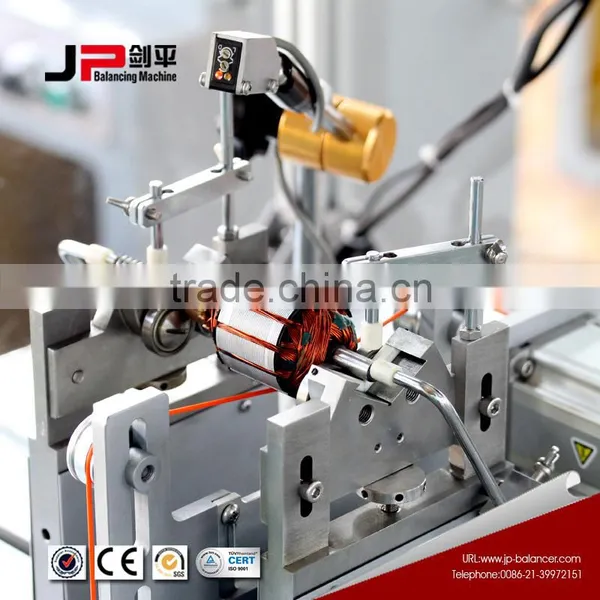

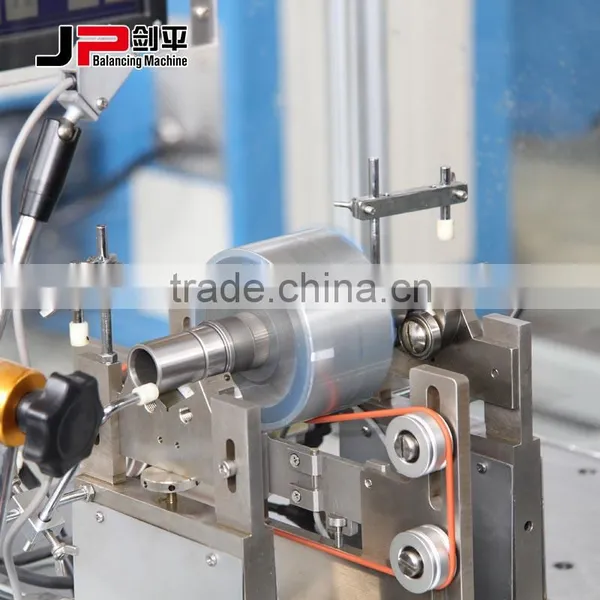

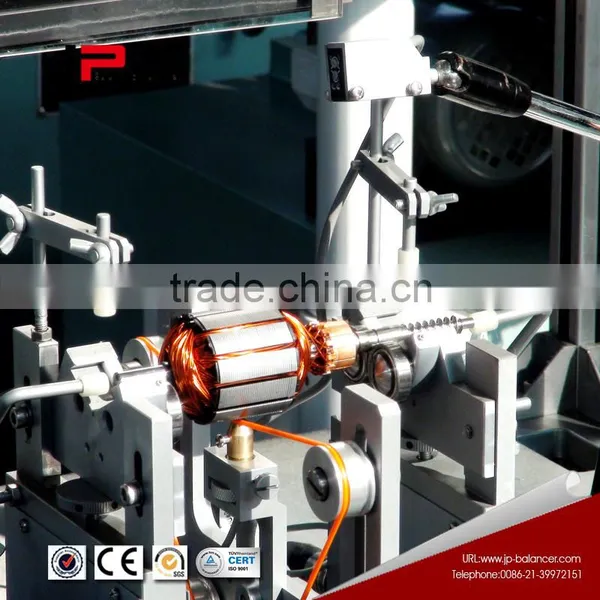

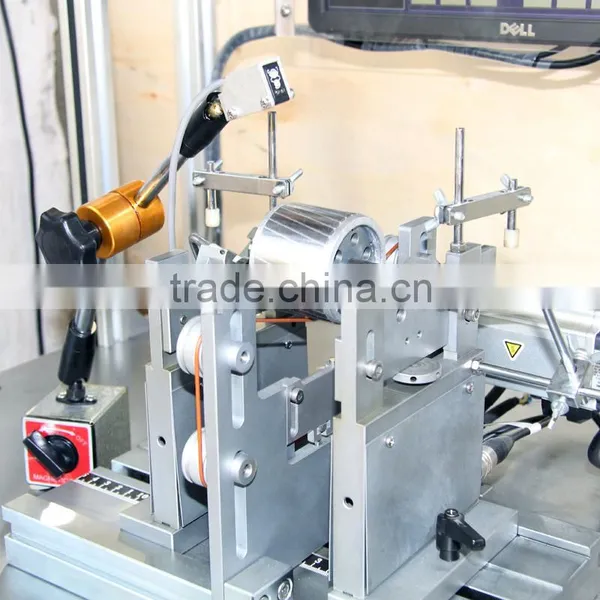

1.6/5kg Auto-positioning balancing machine
Production Description
• Specially designed brackets,employ high wearing-resistance suporting chip
• Durable and reliable sensor possesses good linearity

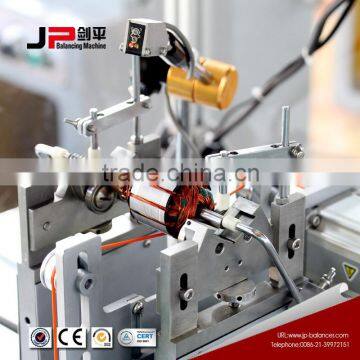

• Upcut belt-driving ensures measurement of high precision and convenient installation and uninstallation of rotors
• Servo drive,stepless acceleration and deceleration,auto-positioning of the unbalance location
• Advanced electrical measuring system and friendly man-machine interface
• Powerful statistical reporting capabilities
Range of Application

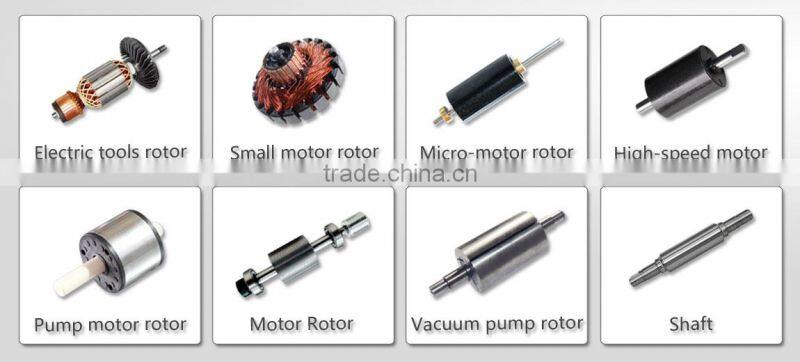

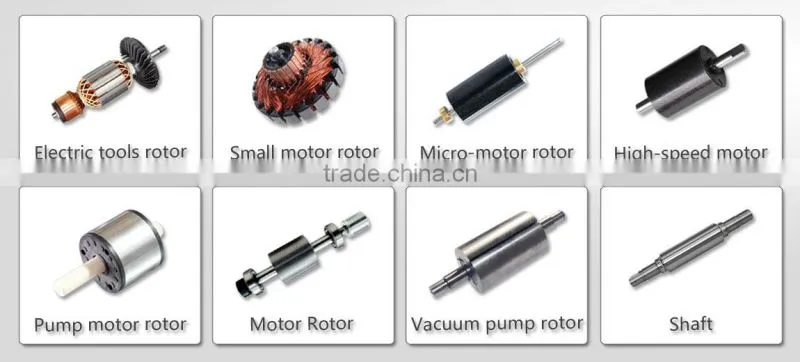

Auto-positioning balancing machine is widely used in various types of micro-rotor balance correction, With its high sensitivity, variety of flexible automatic positioning, convenient operation, It is highly praised and appreciated by consuming public
Special Features
It is Windows Operating system ,Servo motor control ,Windows operating system,Large-screen LCD,Automatic positioning function,Free stickers reflective markers,1000 kinds rotor data storage,Powerful statistical analysis features,Flexible positioning,USB Data Export
Production Parameters
| Technical data at a glance | PHQ-1.6D/5D | PHQ-16D |
| Maximum weight of workpiece(kg) | 1.6/5 | 16 |
| Maximum diameter of workpiece(mm) | 260 | 260 |
| The distance between two bearing pedestals (mm) | 40-300 | 40-500 |
| Journal diameter on roller carriages(mm) | 3-30 | 3-30 |
| Belt driving diameter(mm) | 20-85 | 20-200 |
| Rotation speed when the diameter of operating transmission is 100mm(r/min) | ~1410( Stepless speed regulation) | ~1410( Stepless speed regulation) |
Motor power (kw) | 0.4(servo motor ) | 0.4(servo motor ) |
Minimum achievable residual unbalance (emar) | <=0.3g.mm/kg | <=0.5g.mm/kg |
After Sale Service
| Professional engineer and application specialists respond to your requests efficiently | |
| Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer | |
| Follow up the case, record the entire process. Solution will be provide with 24 hours | |
| Meanwhile,the problem complaint will be reported to QC department | |
| QC will find defect from which department ,who is in charge to identify responsibility | |
| Collecting and record customer respond,suggestion,requirement |
About Us
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co.,Ltd. is a professional manufacturer of dynamic balancing machine,which is high-tech technology enterprises of Optical-electro-mechanical Integration ,
There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine
Warranty period
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.

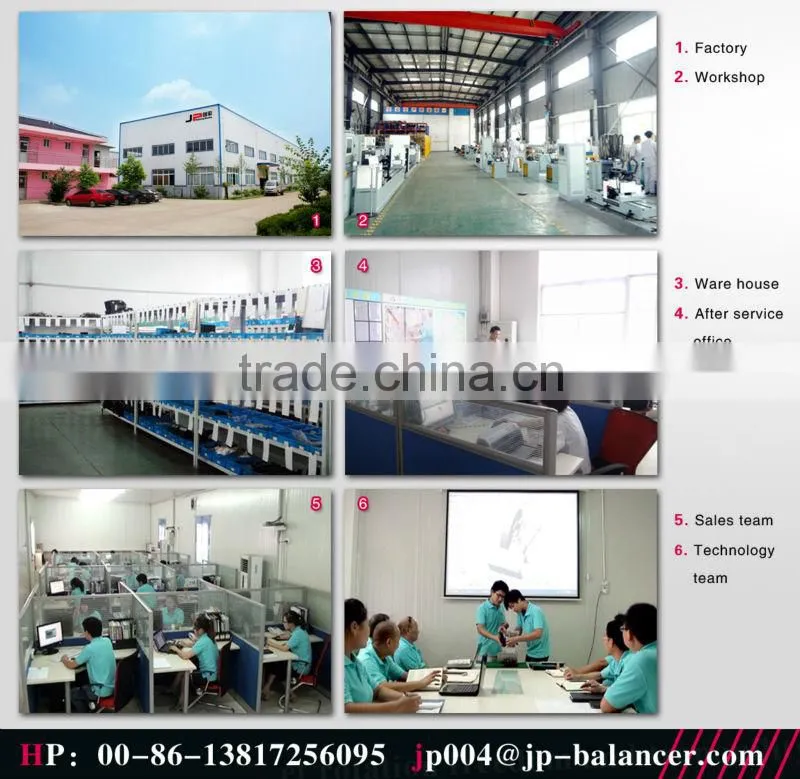

Factory Outlook
Certificates

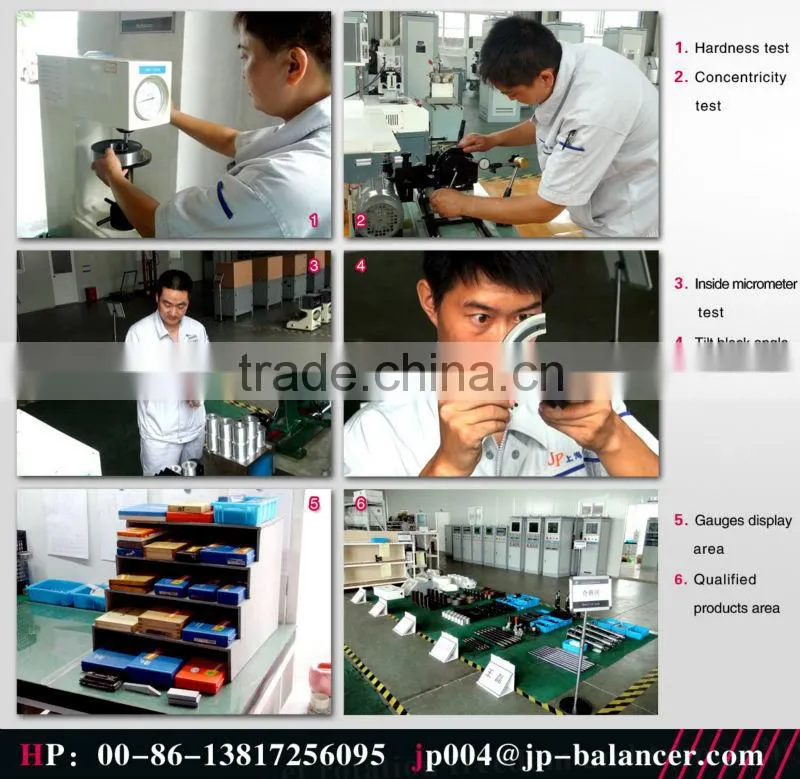

Material inspection

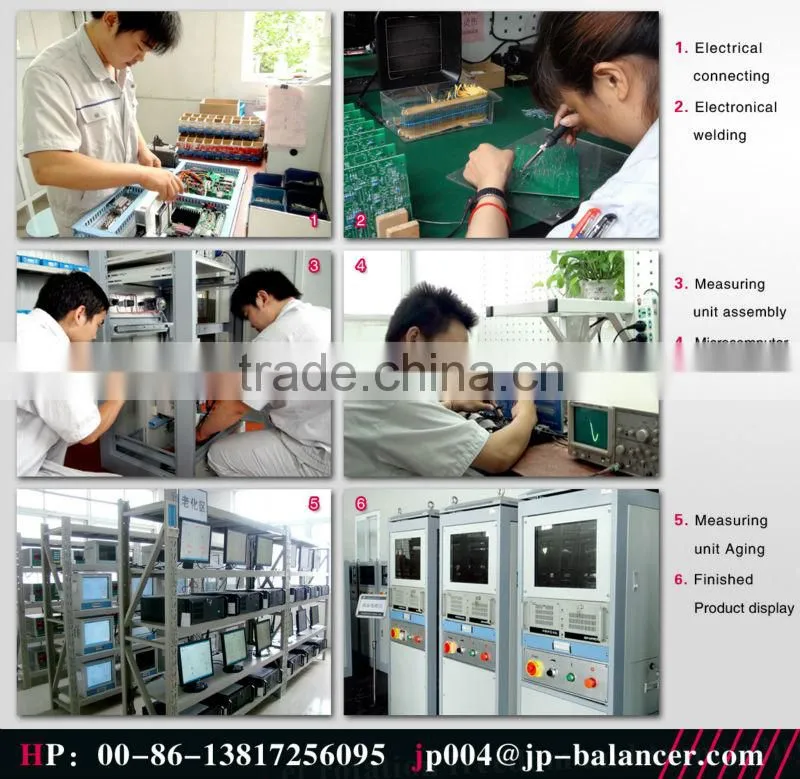

Production Process-Measuring system
easuring system

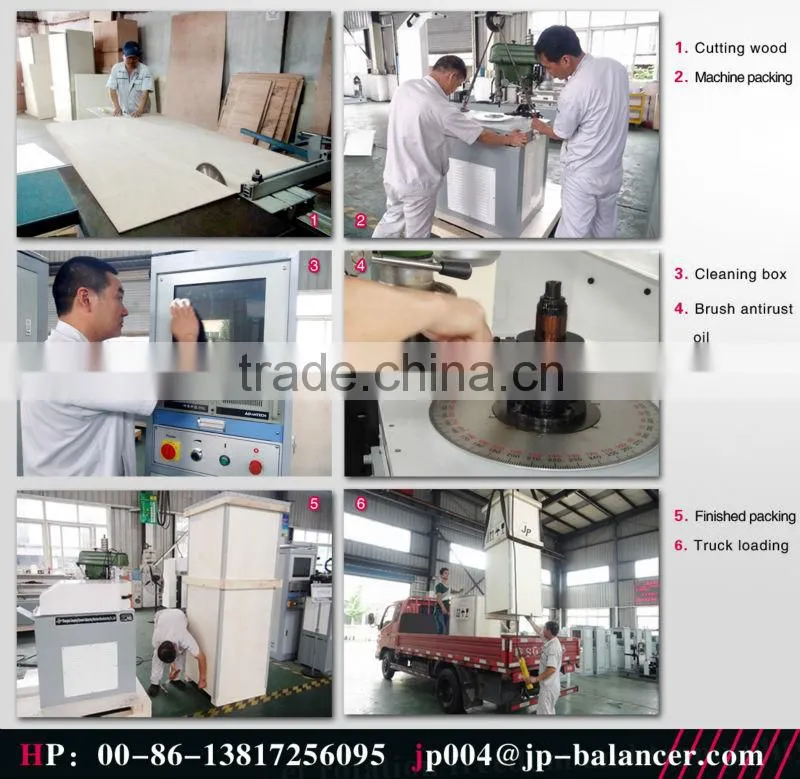

Package and transport
