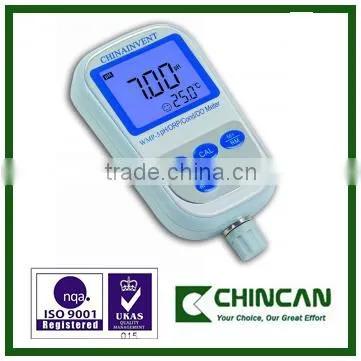

High Quality WMP-5 Portable 5-parameters Water Quality Detector
Summary
As a high cost performance portable water quality analyzer, it can test PH, ORP, Conductivity, TDS, Salinity, Resistivity, DO and Temperature etc. It is the perfect combination of electronic technique, sensor technique and software design, and apply to use at factories, power plant, water treatment and environment etc especially use at outdoors and at site.
Key Features
1,Wide application
Multi-parameter meter, equipped with pH electrode, ORP electrode, Conductivity electrode, DO electrode.
2. Powerful function
² Built-in microprocessor chip
² Automatic calibration
² Automatic temperature compensation
² Data storage
² Function setting
² Automatic self-diagnose
² Auto power off
² Low voltage indication
3. Reliable performance
² Adopt the techniques of digital filter and slip to improve the response speed and accuracy.
² Circuit board use SMT chip technology to improve the reliability of the product processing.
² After inserting the electrode, the device will automatically recognize the electrode—it’s easy to use
² Simple electrode replacement; conforming to waterproof and dustproof IP57 grade
4. Advanced measurement techniques
² The pH measuring mode of pure water and pure water adding ammonia can be set up; the meter not only has general slope compensation, but also has nonlinear temperature compensation to pH—It improves measurement accuracy greatly. It is especially suitable for the fields of electric power, petrochemical, etc.
² Adopt advanced automatic frequency conversion and voltage regulation technology to expand the measuring range of conductivity electrode which constant K is 1 to 10 times. It can meet measuring accuracy requirement in the range of 0 to 100 mS/cm by applying one-point calibration only, which is the unique one–point calibration function for this meter.
² Automatically selecting conductivity measuring range; the meter could carry out non-linear temperature compensation on pure and highly pure water less than 10uS/cm, which greatly improves the measuring accuracy. It is especially suitable for the fields of electric power, microelectronics and medicine.
² Equip the meter with new type of DO electrode with temperature and salinity sensor to make the DO measurement mode possess the functions of automatic temperature compensation, automatic salinity compensation, and manual barometric compensation. It’s easy to use and more accurate to measure.
5. Humanized structure design
² Large LCD screen: blue and backlit
² Handheld body, small and portable
² Specialized carry case
Technical Specifications
PH
Measuring Range |
(-2.00 to 19.99)pH |
Resolution |
0.1/0.01 pH |
Accuracy |
Meter: ±0.01 pH,Overall:±0.02 pH |
Input Current |
≤2×10-12 A |
Input Impedance |
≥1×1012 Ω |
Stability |
±0.01 pH/3h |
|
Temp. Compensation range |
(0 to 100)℃(Auto) |
ORP (mV)
Measuring Range |
-1999mV to 0 to 1999mV |
Resolution |
1mV |
Accuracy |
Meter:±0.1% FS,Overall:±15mV |
Conductivity
Measuring Range |
Conductivity: (0.00 to 19.99)μS/cm (20.0 to 199.9)μS/cm (200 to 1999)μS/cm (2.00 to 19.99) mS/cm (20.0 to 199.9) mS/cm TDS: (0 to 100)g/L Salinity: (0 to 100) ppt Resistivity: (0 to 100) MΩ·cm |
Resolution |
0.01/0.1/1μS/cm 0.01/0.1 mS/cm |
Accuracy |
Meter:±1.0% FS,Overall:±1.5%FS |
|
Temp. Compensation range
|
(0 to 50)℃(Auto) |
Electrode Constant |
0.1 / 1 / 10 cm-1 |
Datum temperature |
25℃,20℃ and 18℃ |
Dissolved Oxygen
Measuring Range |
(0 to 40.00)mg/L(ppm) (0 to 200.0)% |
Resolution |
0.1/0.01 mg/L(ppm) 1/0.1 % |
Accuracy |
Meter:±0.10 mg/L,Overall:±0.40 mg/L |
Response time |
≤30 s(25℃, 90% Response) |
Residual current |
≤0.1 mg/L |
Temp. compensation Range |
(0 to 45)℃(Auto) |
|
Salt Compensation Range |
(0 to 45)ppt(Auto) |
Pressure Compensation Range |
(66 to 200)kPa(Manual) |
Automatic calibration |
Air saturated by water;Water saturated by air |
Electrode Type |
Polarographic |
Other technical parameters
Data logger |
400 groups |
Storage content |
Series number, measuring value measuring unit and temperature, |
Power |
Two AA batteries (1.5V×2) |
Size and weight |
(360 x 270x 76) mm/1.7kg |
Quality and safety certification |
ISO9001:2000, CE and CMC |
Working Condition
Environment temperature |
5 to 35 ℃(0.01 grade) |
Environmental humidity |
≤85% |
IP rating |
IP57 Dustproof and waterproof |

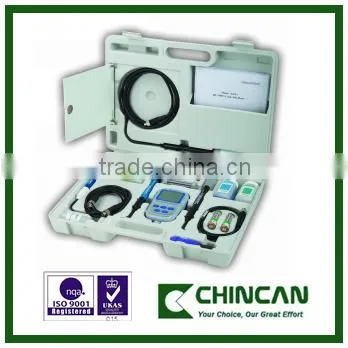

Ordering Information
1×pH/ORP/Conductivity/DO meter
1×pH/ATC three-in-one combination electrode
1×ORP combination electrode
1×Conductivity electrode
1×DO electrode
1×pH standard buffer solution (pH4.00, pH7.00 and pH10.01/50mL)
1×1413μS/cm conductivity standard solution (50mL)
3×DO503 membrane cap (DO electrode use)
1×DO502 DO electrode inner solution (30mL)
2×Cathode polishing paper
1×Screw driver
2×Spare AA batteries
1×Operation manual
1×Carrying case
As one part of Chincan Sales Group, each factory has technical support staffs available offering repair and maintenance of the products exported by Chincan. We promise that all of our products will be easily accessible to technical support and manufacturer's representatives who are always ready and able to assist when needed.
Q: What after-sales service can be provided by CHINCAN ?
A: The after-sales service of CHINCAN is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users
can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’
experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would
like to provide spare parts for free.
Q: How to solve the disputes between CHINCAN and customers during the after-sales maintenance?
A: We will be customer oriented,and make concessions in some principles , we will properly handle the disputes to maximize
customer's satisfaction.
Normally all CHINCAN products are supplied with a warranty of 12 Months from the date of shipment. This warranty is entirely dependent on the following conditions:
1.The following circumstance don't belong to the warranty policy which is Man-made damages caused by improper operations.
2.The instruments must be operated in accordance with our operating guidelines; serviced and maintained on a regular basis
in accordance with the terms specified in the relevant user manual.
3. Only approved spare parts should be used in the instruments which bought from CHINCAN and these should be changed on
a regular basis as specified in the relevant user manual. Details of the approved spare parts and accessories for each
instrument are shown in the user manual or alternatively this information can be obtained from CHINCAN.
