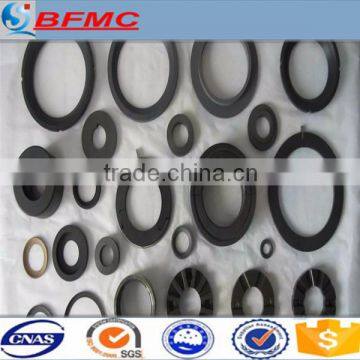

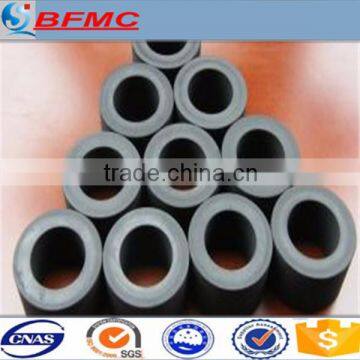

Mechanical carbon graphite sealing ring
| INTRODUCTION: |
Mechanical carbon graphite sealing ring
Hig purity Ggraphite ring manufactuer, factory price
Advantages of Ggraphite ring :
(1) easily to be machined to plate, tube, rod , Ggraphite ring according to customers' design and drawing.
(2) Graphite applicaiton largely simplifies vacuum furnace design and construction
(3) Reduce the consumption and lower down cost
(4) Coefficient of Thermal Expansion: 2.4
(5) Specific Resistivity: 7.0~9.0
Application of Ggraphite ring :
Graphite tubes/poles, Ggraphite ring have a wide application fields, such as:
1Used in furnaces because of graphite's low heat sensitivity, heat exchanger
1Used for Aluminum degassing
1Used in the production of fluxing tubes used in the metal manufacturing industry
1Other industries using graphite tubes include chemical and scientific industry
| TECHNICAL SHEET:(COMMON MODELS) |
Technical Specification |
JSMC-3 |
JSMC-4 |
JSMC-5 |
Bulk Density (g/cm3) |
≥1.72 |
≥1.78 |
≥1.85 |
Ash Content (PPM) |
≤1000 |
≤1000 |
≤1000 |
Shore Hardness |
≥40 |
≥40 |
≥45 |
Specific Resistance (μ.Ω.m) |
≤12 |
≤12 |
≤10 |
Flexural Strength (Mpa) |
≥30 |
≥35 |
≥40 |
Compressive Strength (Mpa) |
≥50 |
≥60 |
≥70 |
Max. Grain Size (μm) |
≤43 |
≤43 |
≤43 |
Coefficient of Thermal Expansion Mm/°C |
≤4.5*10-6 |
≤4.5*10-6 |
≤4.4*10-6 |
We can supply below related graphite parts:
various kinds of heating elements, heating chamber, hearth, heating tube, bracket, joint board, graphite adjusting plate, joint part, graphite tie-in of conducting rod, graphite heater, graphite insulated chamber, graphite tray, graphite box for sintering, graphite plate, heater tube, bridge frame, connection patrs, electrode joint, insulation barrel and heat shield for heating system etc.
| PRODUCING TECHNOLOGY: |
1. Quality assurance,we use high grade raw material and do strict inspect during the whole procession. All products adopt GB,ISO,ASTM,BS,JIS and DIN standard as per requirement. ISO, BV, TUV, SGS certified.
2. Provide professional designing solution, field technical assitance and any other consulting.
3. Price advantage, provided by manufacturer directly,save much intermediate fees.
4. Professional team, specialized in refractory production since 2000,with advanced technology and vast experience.
5. High production capacity, fast delivery of goods.
6. 24*7 online service.
7. OEM service available.
