American Standard Bearing L44643/10 Agricultural Trailer Wheel Bearing
American standard bearing L44643/10 agricultural trailer wheel bearing
1,trailer wheel bearing L44643/10
2,ISO9001:2008 approved
3,Market:Middle-east worldwide
4,OEM service
5,Sample available
trailer wheel bearing L44643/10 bearing Definition Tapered roller bearing included cup and cone there two parts.Cup is outer ring, Cone comprise rollers,cage,inner ring.And the inner ring with the rollers and cage can be fitted separately from the outer ring.
The tapered roller bearings are generally used to support comnined load mainly consisting of radial load. The carrying capacity of axial load depends on the contact angle of raceway of outer rings. The bigger the contact angle is, the strongerr the capacity will be .
trailer wheel bearing L44643/10 bearing Features
1,Bearing manufacturer
2,Stock goods & factory price
3,ISO9001:2008 quality standard
4,Famous brands
5,Bearing can offer OEM service
6,Sample available
trailer wheel bearing Tapered Roller Bearing L44643/10 bearing specifications :
| Commodity name | Tapered Roller Bearing |
| Bearing model | L44643/10 bearing |
| Bearing specification | 25.4*50.292*14.224 mm |
| Greese/Oil | As you requirement ,such as SRL,PS2,Alvania R12 and so on |
| Bearing Series | (Metric) 30xxx.31xxx.32xxx.33xxx.38xxxx.35xxxx. (Inch) LM,M,HM,L,JW,EE,NA,LL |
| Ring Materical | Chrome Steel,Carbon steel, Stainless steel |
| Tolerance grade | GB/T307.1-205 |
| ID Size | 10mm-280mm |
| Quality standard | passed ISO 9001:2008 standard |
| Bearing Precision | P0,P6,P5 ,P4 |
| Bearing range | Deep groove ball bearing , tapered roller bearing , Spherical roller bearing , angular contact ball bearing, cylindrical roller bearing, self aligning ball bearing , insert bearing , linear bearing , linear guide , thrust roller bearing , thrust ball bearing , pillow block bearing, adapter sleeve bearing, OEM service offer . |
| Steel pressed cage | Bending claw form or rivet form |
| Delivert Date | Normally ready goods and stock within 7 days |
| Payment Terms | A:30% T/T In Advance,70% Against Copy Of B/L B: 100% L/C At Sight C: Paypal D: Western Union |
| Application |
Home appliances, low noise and high speed electric motors,automotive components,pumps,machinery. |
| Bearing Service | offer OEM service |
| Package |
1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the clients' requirements. |
| We promise |
We have complete process for the production and quality assurance to make sure our products can meet your requirement. |
Other inch type tapered roller bearings :
| Bearing type | Dimension (mm ) | Weight (Kg) | ||||
| d | D | B | C | T | ||
| JM716649/10 | 85 | 130 | 29 | 24 | 30 | 1.36 |
| JM515649/10 | 80 | 130 | 34 | 28.5 | 35 | 1.749 |
| JL819349/10 | 95 | 135 | 20 | 14 | 20 | 0.83 |
| LM29749/10 | 38.1 | 65.088 | 18.288 | 13.97 | 18.034 | 0.234 |
| LM102949/10 | 45.242 | 73.431 | 19.812 | 15.748 | 19.558 | 0.308 |
| LM102949/10-P6 | 45.242 | 73.431 | 19.812 | 15.748 | 19.558 | 0.308 |
| LM603049A/LM603014 | 45.242 | 79.974 | 19.842 | 15.08 | 19.842 | 0.398 |
| LM501349/LM501310 | 41.275 | 73.431 | 19.812 | 14.732 | 19.558 | 0.325 |
| LM603049/LM603011 | 45.242 | 77.788 | 19.842 | 15.08 | 19.842 | 0.365 |
| LM48549X/10 | 34.925 | 65.088 | 18.288 | 13.97 | 18.034 | 0.257 |
| LM67048/LM67010 | 31.75 | 59.131 | 16.764 | 11.811 | 15.875 | 0.18 |
| LM11949/LM11910 | 19.05 | 45.237 | 16.637 | 12.065 | 15.494 | 0.12 |
| J16154/J16285 | 39 | 72.014 | 20.638 | 16.637 | 21.4 | 0.354 |
| L68149/L68111 | 34.988 | 59.974 | 16.764 | 11.938 | 15.875 | 0.18 |
| L45449/L45410 | 29 | 50.292 | 14.732 | 10.668 | 14.224 | 0.11 |
| JL69349/JL69310 | 38 | 63 | 17 | 13.5 | 17 | 0.2 |
| L44643/10 | 25.4 | 50.292 | 14.732 | 10.668 | 14.224 | 0.13 |
| L44649/10 | 26.988 | 50.292 | 14.732 | 10.668 | 14.224 | 0.12 |
| LM11749/LM11710 | 17.462 | 39.878 | 14.605 | 10.668 | 13.843 | 0.08 |
| LM300849/LM300811 | 40.988 | 67.975 | 18 | 13.5 | 17.5 | 0.243 |
| LM48548/10/P6 | 34.925 | 65.088 | 18.288 | 13.97 | 18.034 | 0.254 |
| 1780/1729 | 25.4 | 56.896 | 19.837 | 15.875 | 19.368 | 0.23 |
| 1988/1922 | 28.575 | 57.15 | 19.355 | 15.875 | 19.845 | 0.22 |

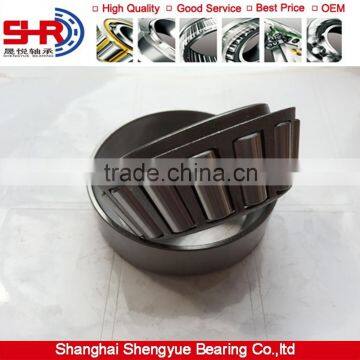

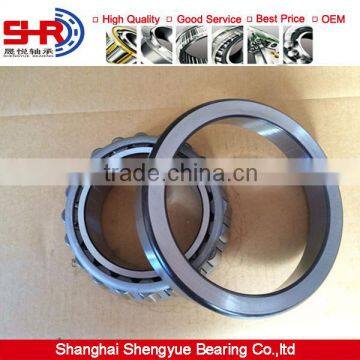

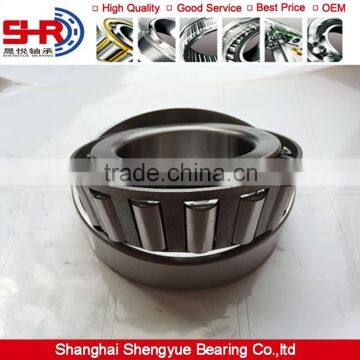

Pictures for Agriculture trailer wheel bearing inch size tapered roller bearing :
Our company information :
| Company name | shanghai shengyue bearing Co.,Ltd |
| Business type | manufacturer |
| Established year | 2012 |
| Business product | all kinds of bearings |
| OWN Brand | SHR |
| Export range | 81%-90% |
| OEM service | offer |
| Our advantages |
1. More than ten years bearing products exporting experiences. 2. OEM order and non-standard bearing order can be accepted. 3. Many sizes of bearing are available. Large quantity bearing can be provided. 4. A certain number of free sample can be provide to support our customer's after-sale services and warranty. |
Trading information :
| Price terms | EXW FOB CNF CFR, CIF |
| Payment terms | L/C ,T/T ,Western Union, Paypal |
| Express way | DHL FEDEX TNT UPS |
| Shipping port | shanghai ,qingdao ,nongbo, guangzhou |
| Packing |
1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets |
Our Factory :
How a bearing be made out ? ---- Production procedures :
How we test the bearings ?
Shipping express we cooperated :
Bearing catalog :
For any questions, please find us !
Contact with us :
==================================================================================
Shanghai Shengyue Bearing Co.,Ltd
Contact : Ms. Alice Xiong
Skype : alice.bear01
Tel:+86 18701870126
Email :shr0374(at)
Web:http://shr-bearing.en.china.cn/
Address: Room701,Yizheng Building,No.681 Xincun Road,Putuo District. Shanghai,China.
==================================================================================
