Original roller bearing 3975/3920 KOYO Brand tapered roller bearing
Descripetion of taper roller bearing
1.Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and mounting can be made.Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.Taper roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.
2.Taper roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.Taper roller bearing the angle between the outer raceway and line, the bearing can bearing heavy load and other Tapered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.
Product name |
Taper roller bearing |
Brand name |
KOYO/OEM |
Original Packing |
(a)Neutral package & wooden package |
(b)Carton /Wooden package+pallet(fumigation-free) | |
(c)As customer request | |
Precision |
P2/P4/P5/P6/P0 |
Material |
GCR-15 chrome steel,Bearing Steel |
Quality standard |
ISO9001:2000 |
Place of original |
China |
Delivery date |
Within 5 working days or according to you request |
Payment terms |
A:100% T/T in advance |
B:30%T/T in advance.70% against copy of B/L | |
C:Western Union | |
Features |
these bearings are featured by the extremely big axial load carrying capacity |
and meanwhile,they can also carry certain radial load | |
Package detail |
single box/industrial standard packing/single carton/according to buyers requirement |
Cage Material |
Bearing steel/brass |
Main market |
Mideast;Canada;Southeast Asia;South America and other countries all over the world |
Other types of taper roller bearings
Bearing Model |
d(mm) |
D(mm) |
B(mm) |
Weight(kg) |
30202 |
15 |
35 |
11 |
0.053 |
30203 |
17 |
40 |
12 |
0.079 |
30204 |
20 |
47 |
14 |
0.126 |
30205 |
25 |
52 |
15 |
0.154 |
30206 |
30 |
62 |
17.5 |
0.231 |
30207 |
35 |
72 |
17 |
0.331 |
30208 |
40 |
80 |
18 |
0.422 |
30209 |
45 |
85 |
19 |
0.474 |
30210 |
50 |
90 |
20 |
0.529 |
30211 |
55 |
100 |
21 |
0.713 |
30212 |
60 |
110 |
22 |
0.904 |
30213 |
65 |
120 |
23 |
1.13 |
30214 |
70 |
125 |
24 |
1.26 |
30215 |
75 |
130 |
25 |
1.36 |
30216 |
80 |
140 |
26 |
1.67 |
30217 |
85 |
150 |
31 |
2.06 |
30218 |
90 |
160 |
30 |
2.54 |
30219 |
95 |
170 |
32 |
3.04 |
30220 |
100 |
180 |
34 |
3.72 |
KOYO inch tapered roller bearing included cup and cone there two parts.Cup is outer ring,Cone comprise rollers, cage,inner ring.And the inner ring with the rollers and cage can be fitted separately from the outer ring. KOYO bearings installed on if not careful alignment, the alignment may lead KOYO bearings suffered another load, friction and vibration. These may accelerate fatigue and reduce the life of KOYO bearings, and the period of use of other machine parts may be damaged. In addition, the increase of vibration and friction may greatly increase the energy consumption and the risk of premature failure.
Other inch type tapered roller bearings other models series
SET1 |
LM11749/LM11710 |
SET2 |
LM11949/LM11910 |
SET3 |
M12649/M12610 |
SET4 |
L44649/L44610 |
SET5 |
LM48548/LM48510 |
SET6 |
LM67048/LM67010 |
SET7 |
M201047/M201011 |
SET8 |
M201047/M201011 |
SET9 |
U298/U261L |
SET10 |
U399/U360L |
SET11 |
JL69349/JL69310 |
SET12 |
JL69349/JL69310 |
SET13 |
L68149/L68110 |
SET14 |
L44643/L44610 |
SET15 |
L44643/L44610 |
SET16 |
LM12749/LM12711 |
SET17 |
LM12749/LM12711 |
SET18 |
JL69349/JL69310 |
SET19 |
07100/07196 |
SET20 |
U399A/U365L |
SET21 |
1988/1922 |
SET22 |
LM67045/LM67010-Z |
SET23 |
LM104949E/LM104911 |
SET24 |
JL68145/JL68111Z |
SET25 |
JLM506848E/JLM506810 |
SET26 |
JLM104946/JLM104910 |
SET27 |
JLM67048/LM67010 |
SET28 |
J15585/J15520 |
SET29 |
LM67049/LM67010 |
SET30 |
LM67042/LM67010 |
SET31 |
JL68145/JL68111 |
SET32 |
LM12748F/LM12710 |
SET33 |
JRM3534-90U01 |
SET34 |
LM12748F/LM12710 |
SET35 |
JRM3534/3564XD |
SET36 |
LM603049/LM603012 |
SET37 |
LM 603049/11 |
SET38 |
LM104949/LM104911 |
SET39 |
JRM3939/68XD |
SET40 |
JLM506849A/JLM506811 |
SET42 |
JLM506849/LM506811 |
SET43 |
15123/15245 |
SET44 |
L44643X/44610 |

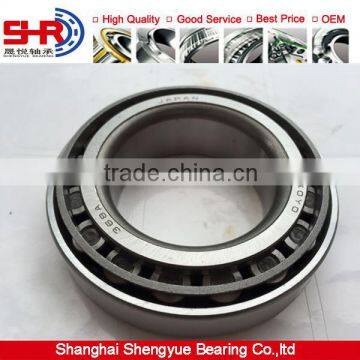

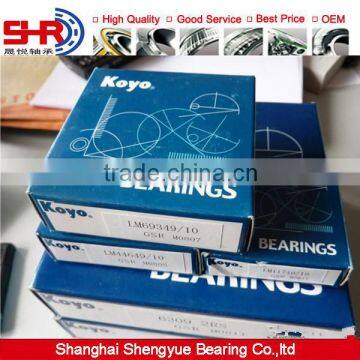

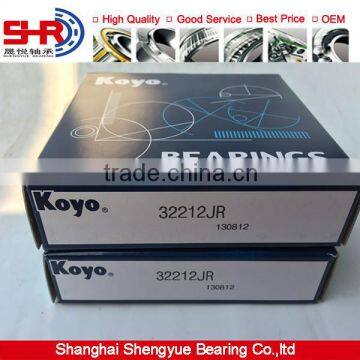

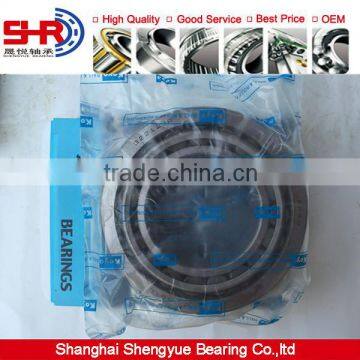

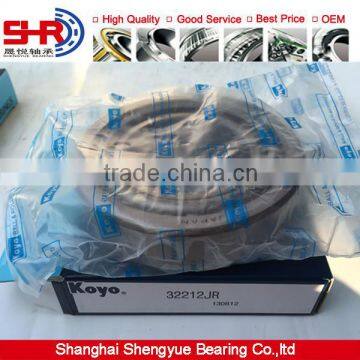

Pictures of KOYO tapered roller bearings
Agent brand-KOYO
Agent brand-NSK
Application of taper roller bearing
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2.Heavyduty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc
4.The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
5.Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6.Car: truck, road, bus, car, modified car, motorcycle ,etc.
Production process
Testing details
1. For small ones:anti-rust oil+vacuum plastic bag+paper box+wooden box
2. For big ones:anti-rust oil+waterproof belt+professional belt+wooden box
Payment Terms:
L/C ,T/T ,western Union
1. 30% deposit By T/T, Western Union, Paypal, 70% before delivery.
2. 100% L/C at sight
Other information:
Production Lead time: 7~25days; If we have this item in stock , 2days delivery.
Delivery Date: within 3-5days after your payment.
Sample: Free, but we don't bear the freight of sample
MOQ: 1 set Supply Ablility:100000 pcs/Month
Shanghai Shengyue Bearing Co., Ltd. is a professional bearing manufacturer and dealer in China. We have been engaged in bearing industry for 15 years and worked on bearing import and export for more than 8 years.We have our own factory brand "SYBR" and applied ISO9001:2000 certificate for certification authority. We attend international bearing fairs, put in many B2B websites and achieve many customers all over the world, building up a good reputation from our customers.
Our company is specialized in deep groove ball bearings, angular contact ball bearings, spherical roller bearings, taper roller bearings and cylindrical roller bearings. In addition, we can customize various large non-standard products, such as the most competitive products according to customers' demands.
In 2008, we become the authorized agent of Japan NSK and ASAHI.
In 2009, we become the authorized agent of Japan NTN.
In 2011, we become the authorized agent of Japan IKO.
Meanwhile, we also offer KOYO URB KG DKF DPI bearings. Depending on top bearing quality ensures us to have many clients in such as countries and regions like America, Europe, Africa and the Middle East. We have complete bearing in stock which makes delivery fast.
