NU Type Single Row Cylindrical Roller Bearing NU314E
The Brief Introduction of Cylindircal Roller Bearing:
The internal structure of cylindrical roller bearing is made up the rollers which is 90 ° vertically cross wiith each other (this is also the origin of the name cross roller bearing ), with intervals between roller holder or the isolation piece, it can prevent mutual friction between roller and roller, effectively prevent the rotation torque increases.
The roller and raceway surface of cylindrical roller bearing is line contact,so the bearing has high carrying radial load capacity,applicable to carrying heavy load and shock load.Besides,owing to its structure,it's easy to high accuracy processing,applicable to highrate rotary.Inner ring and orter ring are separable,convenient for mounting and dismounting.
Products name |
Cylindrical roller bearing NU314E 70x150x35mm with best price |
Material |
Chrome Steel, Stainless steel |
I.D.: |
70 mm |
O.D.: |
150 mm |
Width: |
35 mm |
Precision |
P0,P6,P5,P4, P2 |
Clearance: |
C2 ,C3, C4 |
Quality standard |
ISO9001:2008 standard |
Service |
OEM service |
Payment terms |
,, |
Details |
Mine machine, port hoisting machine, port transfer equipment, crane; |
Cylindrical Roller Bearing Pictures:
Bearings Package:
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case
Bearings Lead time:
We will prepare your order as soon as possible.
1)2-3 days for ex-stock
2)6-10 days for others
Shipping & Delivery time:
1)Less than 45 Kg:DHL TNT Fedex UPS express will be better,( 4-7 days delivered to your address);
2) Between 45 to 200 Kg:Air transiportation will be better,( 5-14 days delivered to your airport);
3) Over 200 Kg:Sea transportation will be better.( Cheapest,18-45 days to your port ).
Note:We will offer the best freight for you to save the shipping cost.Besides we provide all needed documents for your Customs clearance.Of course,your forwarder will be also welcome!
Payment terms:
We accept T/T, Western Union,Paypal,Visa.
1) T/T or WU (we undertake the bank fees):
A:100% payment.
B:30% deposit ,70% before transportation.
2)PayPal (we undertake the transaction fees) :
A:100% payment.
B:30% deposit ,70% before transportation.
3) L/C at sight.
Note :We will take some pictures of your bearings before transportation.
| Price terms | Door to door,FOB,CNF,CFR,CIF,EXW,C&F |
| Shipping Airport |
Shanghai Pudong International Airport Shanghai Hongqiao International Airport |
| Shipping Port | Shanghai,Guangzhou |

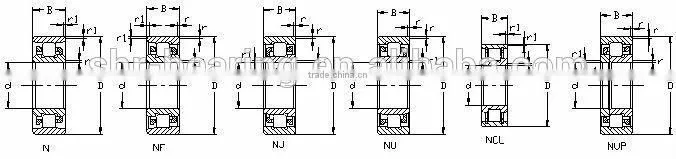

Other cylindrical roller bearings we can also supply ,with best prices:
| Bearing numbers | Boundary dimensions | Basic load ratings | Limiting speeds | Weight | |||||||||
| mm | N | r/min | kg | ||||||||||
| NU | NJ | NUP | N | NF | d | D | B | r | dynamic Cr | static Cor | grease | oil | (approx.) |
| NU204 | NJ | NUP | N | NF | 20 | 47 | 14 | 1 | 16600 | 13900 | 17000 | 20000 | 0.111 |
| NU204E | NJ | NUP | - | - | 47 | 14 | 1 | 25700 | 22600 | 15000 | 18000 | 0.122 | |
| NU2204 | NJ | NUP | N | - | 47 | 18 | 1 | 22200 | 20300 | 15000 | 18000 | 0.144 | |
| NU2204E | NJ | NUP | - | - | 47 | 18 | 1 | 30500 | 28300 | 14000 | 16000 | 0.158 | |
| NU304 | NJ | NUP | N | NF | 52 | 15 | 1.1 | 23100 | 19200 | 14000 | 17000 | 0.153 | |
| NU304E | NJ | NUP | - | - | 52 | 15 | 1.1 | 31500 | 26900 | 13000 | 15000 | 0.176 | |
| NU2304 | NJ | NUP | N | - | 52 | 21 | 1.1 | 33000 | 30000 | 13000 | 15000 | 0.25 | |
| NU2304E | NJ | NUP | - | - | 52 | 21 | 1.1 | 42000 | 39000 | 12000 | 14000 | 0.242 | |
| NU1005 | NJ | NUP | N | - | 25 | 47 | 12 | 0.6 | 15100 | 14100 | 16000 | 19000 | 0.092 |
| NU205 | NJ | NUP | N | NF | 52 | 15 | 1 | 18800 | 17000 | 14000 | 16000 | 0.137 | |
| NU205E | NJ | NUP | - | - | 52 | 15 | 1 | 29300 | 27700 | 13000 | 15000 | 0.151 | |
| NU2205 | NJ | NUP | N | - | 52 | 18 | 1 | 25100 | 24700 | 13000 | 15000 | 0.166 | |
| NU2205E | NJ | NUP | - | - | 52 | 18 | 1 | 35000 | 34500 | 11000 | 13000 | 0.186 | |
| NU305 | NJ | NUP | N | NF | 62 | 17 | 1.1 | 31500 | 27700 | 12000 | 14000 | 0.241 | |
| NU305E | NJ | NUP | - | - | 62 | 17 | 1.1 | 41500 | 37500 | 11000 | 13000 | 0.275 | |
| NU2305 | NJ | NUP | N | - | 62 | 24 | 1.1 | 46000 | 45000 | 11000 | 12000 | 0.343 | |
| NU2305E | NJ | NUP | - | - | 62 | 24 | 1.1 | 57000 | 56000 | 9700 | 11000 | 0.386 | |
| NU405 | NJ | NUP | N | NF | 80 | 21 | 1.5 | 46500 | 40000 | 8500 | 10000 | 0.55 | |
| NU1006 | NJ | NUP | N | - | 30 | 55 | 13 | 1 | 19700 | 19600 | 14000 | 16000 | 0.13 |
| NU206 | NJ | NUP | N | NF | 62 | 16 | 1 | 24900 | 23300 | 12000 | 14000 | 0.207 | |
| NU206E | NJ | NUP | - | - | 62 | 16 | 1 | 39000 | 37500 | 11000 | 13000 | 0.226 | |
| NU2206 | NJ | NUP | N | - | 62 | 20 | 1 | 35000 | 36000 | 11000 | 13000 | 0.261 | |
| NU2206E | NJ | NUP | - | - | 62 | 20 | 1 | 49000 | 50000 | 9700 | 11000 | 0.297 | |
| NU306 | NJ | NUP | N | NF | 72 | 19 | 1.1 | 38500 | 35000 | 10000 | 12000 | 0.358 | |
| NU306E | NJ | NUP | - | - | 72 | 19 | 1.1 | 53000 | 50000 | 93000 | 11000 | 0.398 | |
| NU2306 | NJ | NUP | N | - | 72 | 27 | 1.1 | 51500 | 51000 | 9000 | 11000 | 0.513 | |
| NU2306E | NJ | NUP | - | - | 72 | 27 | 1.1 | 74500 | 77500 | 8300 | 9700 | 0.58 | |
| NU406 | NJ | NUP | N | NF | 90 | 23 | 1.5 | 62500 | 55000 | 7300 | 8500 | 0.751 |
|
To meet Your Max.Demands! Good service !
Shanghai Shengyue Bearing Co.,ltd is a professional bearing manufacturer and dealer in china.We have been engaged in bearing industry for 12 years and made international trade of bearing import and export for more than 5 years.We attend international bearing fairs, put in many B2B website and achieve many customers all over the world also bulid up good reputation from our customers.
We have complete bearing in stock which makes the delivery time faster.
1. We are a bearing manufacturer which have large-scaled factories.
2. offer certificate of origin and our own brand pass ISO9001:2000.
3.be located in Shanghai. easy transportation fast delivery time and good serivice. Welcome to visit!
4.Large stock all series bearing OEM service.long service time
If you are interested in our products,please feel free to send an inquiry or chat with us online.
We will warmly reply you immediately!---SHR Bearing
