Universal Ball joint bearing GEG90ES 2RS pin joint bearing
- 5000 Set / Sets per Month
- Shanghai/Qingdao /as request
- T/T Credit Card PayPal
- 162250 GA CYLINDRICAL ROLLER BEARING High Speed Wire Rod Rolling Mill Bearing
- F-546485.01. KL-H95 DEEP GROOVE BALL BEARING High Speed Wire Rod Rolling Mill Bearing
- Z-507333.ZL Four-row cylindrical bearings High Speed Wire Rod Rolling Mill Bearing
- Z-504547.ZL Cylindrical Roller Bearing Multi Row High Speed Wire Rod Rolling Mill Bearing
- Z-533575.ZL Four - row Cylindrical roller bearing High Speed Wire Rod Rolling Mill Bearing
- 507335.KL Deep Groove Ball Bearing High Speed Wire Rod Rolling Mill Bearing
Product Details
Brand Name: | SHR | Bore Size: | 0, 90 | Outside Diameter: | 0, 150 |
Model Number: | bearing GEG90ES 2RS | Precision Rating: | p0,p6 p5 p4 | Seals Type: | open/ seal |
Place of Origin: | Shanghai, China |
Product Description
Universal Ball joint bearing GEG90ES 2RS pin joint bearing
*Manufacturer factory price
*OEM service offer
*Different kinds of oscillating bearing
*GEG,GE,GEZ series
*ISO9001:2008 standard
*Sample available
Universal Ball joint bearing GEG90ES 2RS pin joint bearing information as below :
The Brief Description of GEG90ES 2RS pin joint bearing :
GEG90ES 2RS pin joint bearing is actually one deformation of the deep groove ball bearing, The most obvious characteristic for the spherical bearing is its outer diameter surface is spherical. Therefore, it can be inserted into the corresponding concave spherical bearing with self-aligning effect.The spherical bearing is suitable for equipments with simple components, such as agricultural machinery, transportation systems or on construction machinery.
Advantages of GEG90ES 2RS pin joint bearing :
1.Can bear large load
2.Different types and structures
3.Self-lubricating
4.Used for low speed pendulum motion and low-speed rotation
5.Can do tilting motion in a certain angle range
6.Have bigger load capacity and impact resistant ability
7.Resist corrosion, resistant to wear , self aligning , good lubrication
8.Can work normally even installation dislocation
Model number | dimension(mm) | a≈(°) | |||||||
GE…ES | GE…DS | d | D | B | C | d1(min) | r1s(min) | r2s(min) | |
GEG50ES | GEG50DS | 50 | 90 | 56 | 36 | 57 | 0.6 | 1 | 17 |
GEG60ES | GEG60DS | 60 | 105 | 63 | 40 | 67 | 1 | 1 | 17 |
GEG70ES | GEG70DS | 70 | 120 | 70 | 45 | 77 | 1 | 1 | 16 |
GEG80ES | GEG80DS | 80 | 130 | 75 | 50 | 87 | 1 | 1 | 14 |
GEG90ES | GEG90DS | 90 | 150 | 85 | 55 | 98 | 1 | 1 | 15 |
GEG100ES | GEG100DS | 100 | 160 | 85 | 55 | 110 | 1 | 1 | 14 |
GEG110ES | GEG110DS | 110 | 180 | 100 | 70 | 122 | 1 | 1 | 12 |
GEG120ES | GEG120DS | 120 | 210 | 115 | 70 | 132 | 1 | 1 | 16 |
GEG140ES | GEG140DS | 140 | 230 | 130 | 80 | 151 | 1 | 1 | 16 |
GEG160ES | GEG160DS | 160 | 260 | 135 | 80 | 176 | 1.1 | 1 | 16 |
GEG180ES | GEG180DS | 180 | 290 | 155 | 100 | 196 | 1.1 | 1.1 | 14 |
GEG200ES | GEG200DS | 200 | 320 | 165 | 100 | 220 | 1.1 | 1.1 | 15 |
GEG220ES | GEG220DS | 220 | 340 | 175 | 100 | 243 | 1.1 | 1.1 | 16 |
GEG240ES | GEG240DS | 240 | 370 | 190 | 110 | 263 | 1.1 | 1.1 | 15 |
GEG260ES | GEG260DS | 260 | 400 | 205 | 120 | 285 | 1.1 | 1.1 | 15 |
GEG280ES | GEG280DS | 280 | 430 | 210 | 120 | 310 | 1.1 | 1.1 | 15 |
GEG90ES 2RS pin joint bearing designs :
(1) GE ... E every single outer ring, no oil tank. Able to support radial load and smaller in
either direction axial load.
(2) GE ... EStype outer ring slit, a lubricating oil tank. Able to support radial load and smaller in either
direction axial load.
(3) GE ... ES2RS outer single slit, a lubricating oil tank, both sides with a ring. Able to support radial load and
smaller in either direction axial load.
(4) GEEW ... ES2RS outer single slit, a lubricating oil tank, both sides with a ring. Able to support radial load and
smaller in either direction axial load.
(5) GE ... ESN single slit the outer ring, a lubricant tank, the outer ring groove. Able to support radial
load and smaller in either direction axial load. But the axial load to bear by the stop ring, its ability
to reduce the axial load.

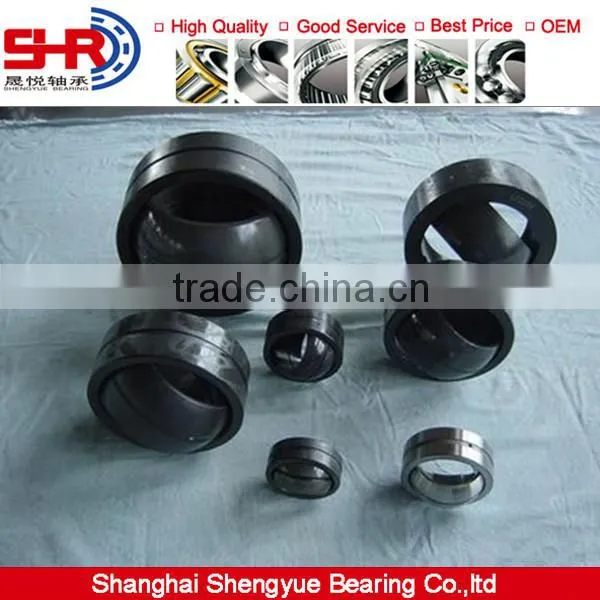

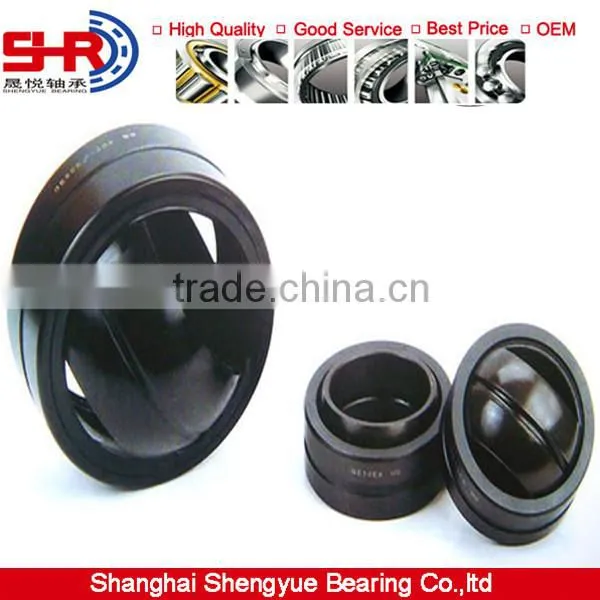

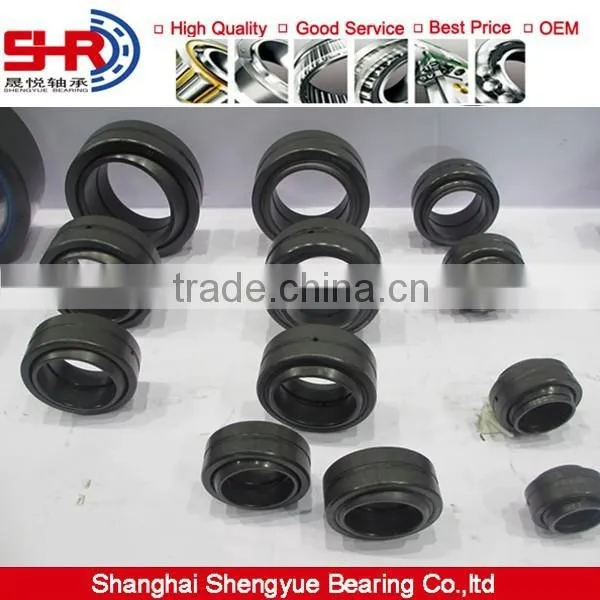

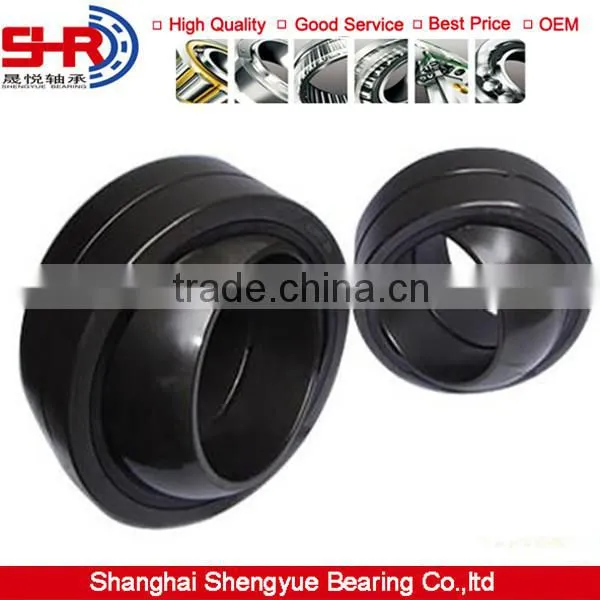

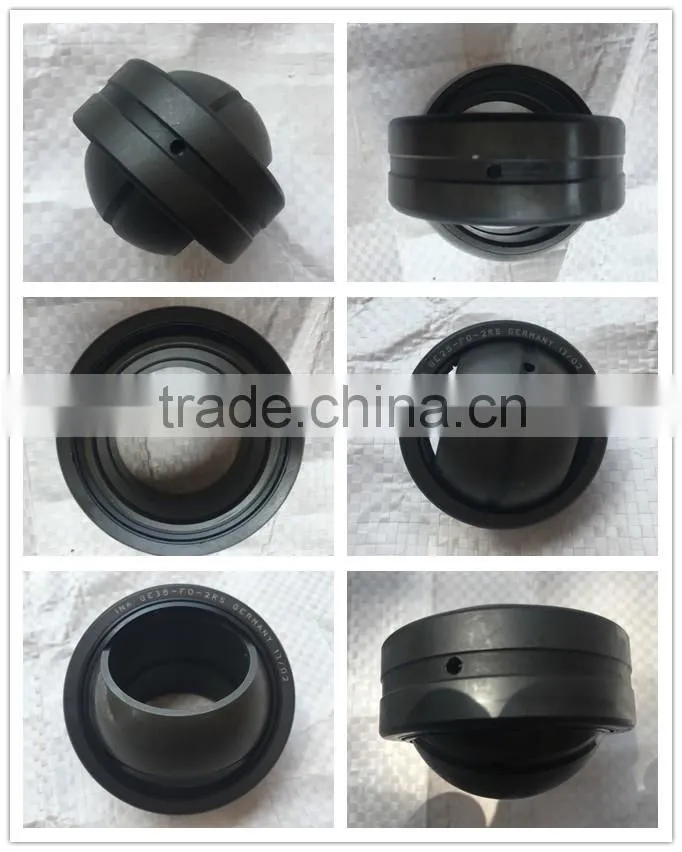

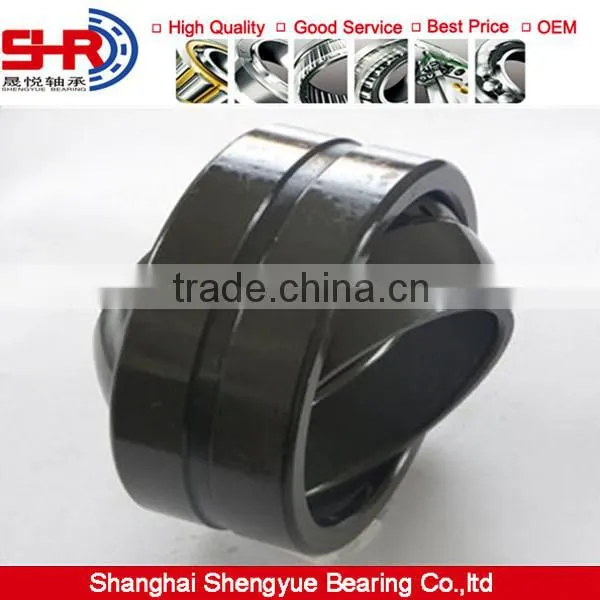

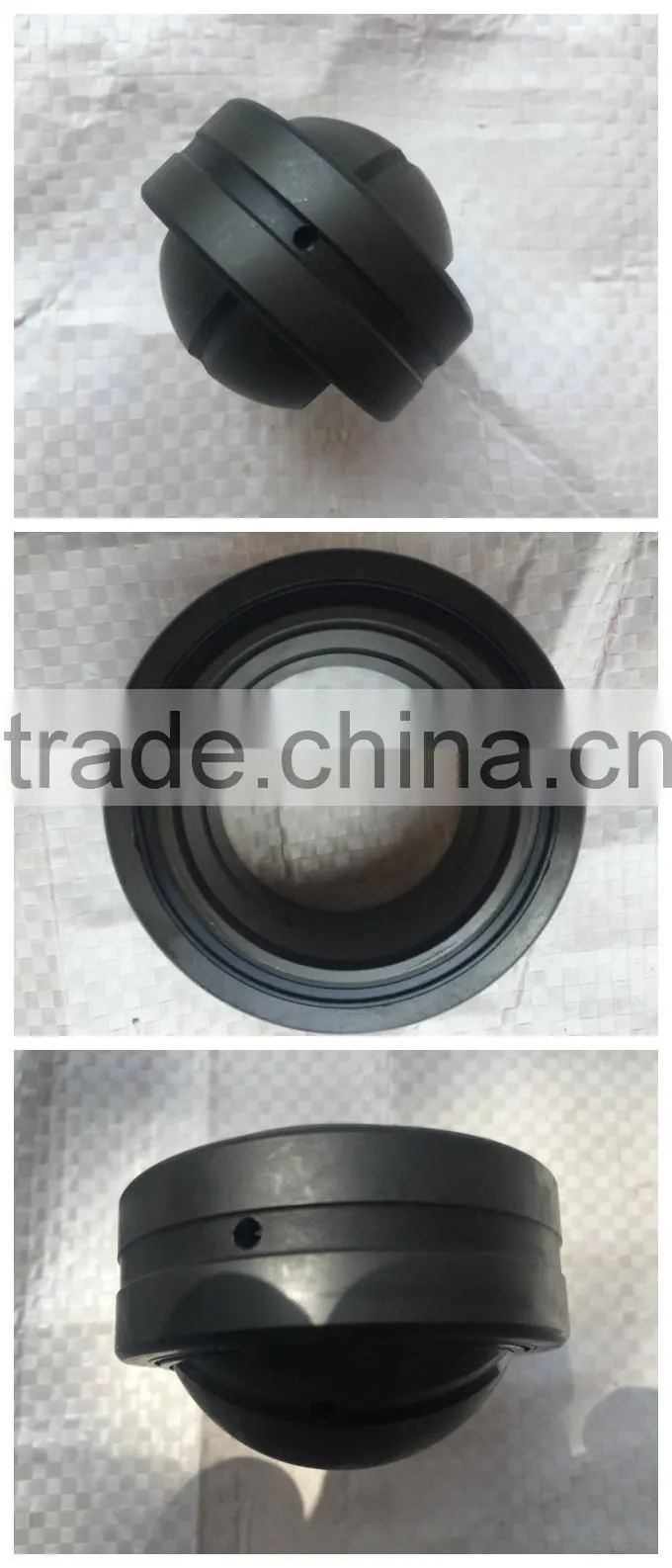

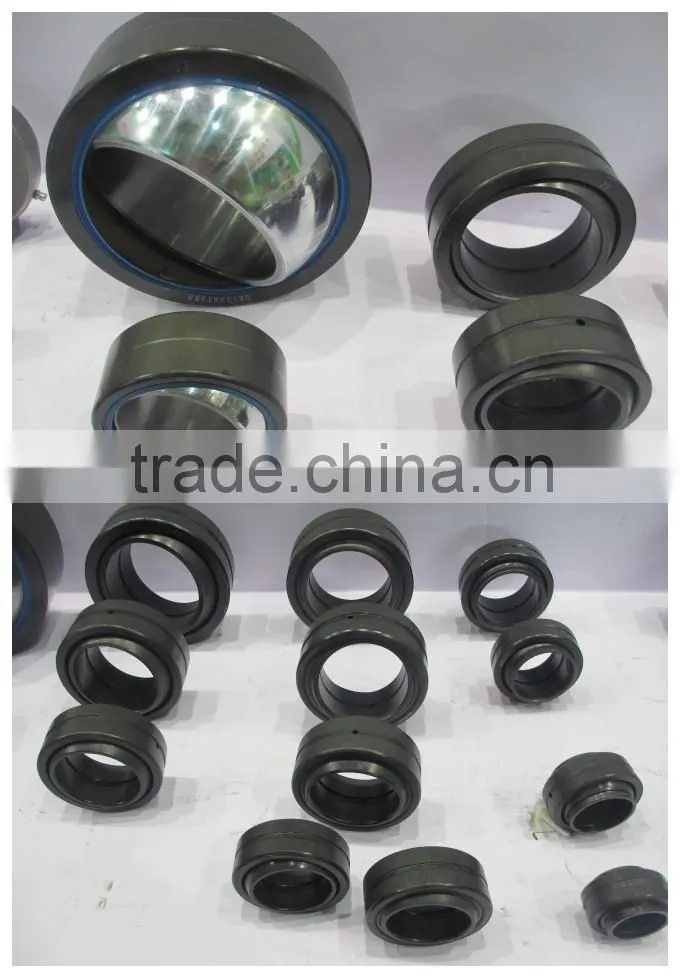

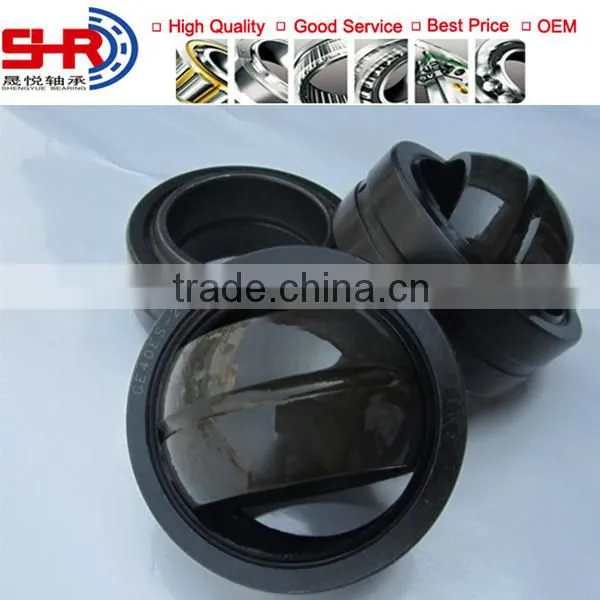

Universal Ball joint bearing GEG90ES 2RS pin joint bearing pictures :
Widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.
A.Road machinery C.Material handling machiney D.Train E.Power equipment F.Automobile G.Solar energy H.Wind power | I.Metallurgical equipment J.Aerospace K.Ship&Port machinery L.Mining machinery M.Packaging machinery N.Bridge & Water gate O.Printing machinery P.Food machinery |
Our company information :
Company name | shanghai shengyue bearing Co.,Ltd |
Business type | manufacturer |
Established year | 2012 |
Business product | all kinds of bearings |
OWN Brand | SHR |
Export range | 81%-90% |
OEM service | offer |
Our advantages | 1. More than ten years bearing products exporting experiences. 2. OEM order and non-standard bearing order can be accepted. 3. Many sizes of bearing are available. Large quantity bearing can be provided. 4. A certain number of free sample can be provide to support our customer's after-sale services and warranty. |
Trading information :
Price terms | EXW FOB CNF CFR, CIF |
Payment terms | L/C ,T/T ,Western Union, Paypal |
Express way | DHL FEDEX TNT UPS |
Shipping port | shanghai ,qingdao ,nongbo, guangzhou |
Packing | 1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets |
Our Factory :
How a bearing be made out ? ---- Production procedures :
How we test the bearings ?
Shipping express we cooperated :

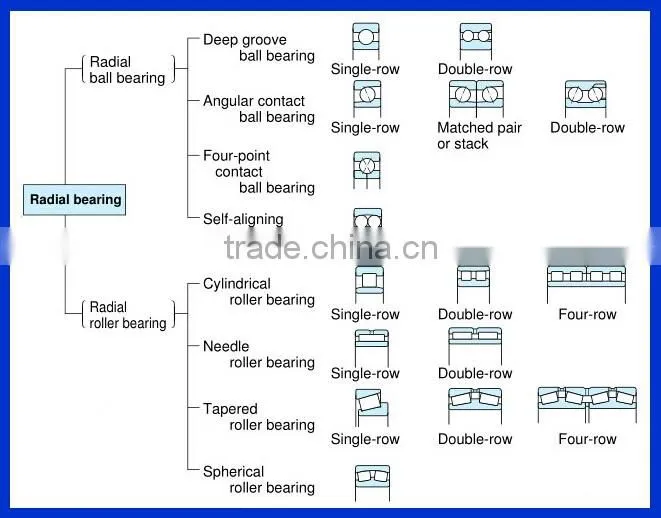

Bearing catalog :
For any questions, please find us !
Contact with us :
==================================================================================
Shanghai Shengyue Bearing Co.,Ltd
Contact : Ms. Alice Xiong
Skype : alice.bear01
Tel:+86 18701870126
Email :shr0374(at)
Web:http://shr-bearing.en.china.cn/
Address: Room701,Yizheng Building,No.681 Xincun Road,Putuo District. Shanghai,China.
==================================================================================
