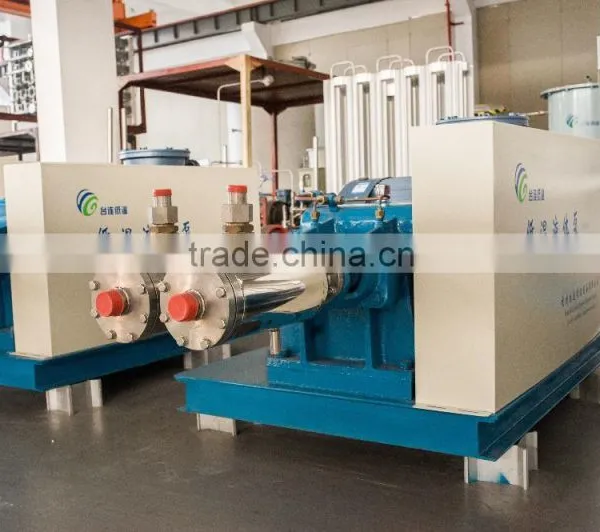

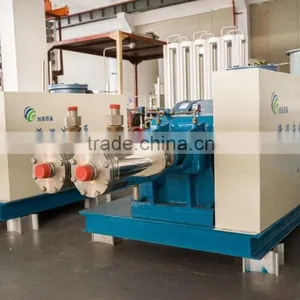

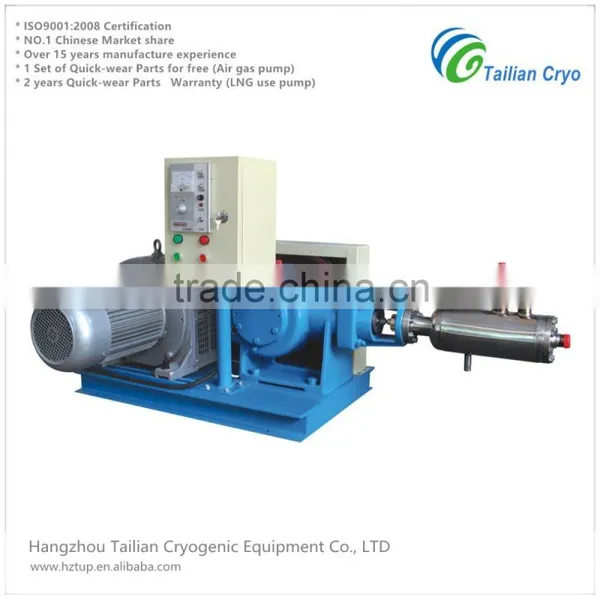

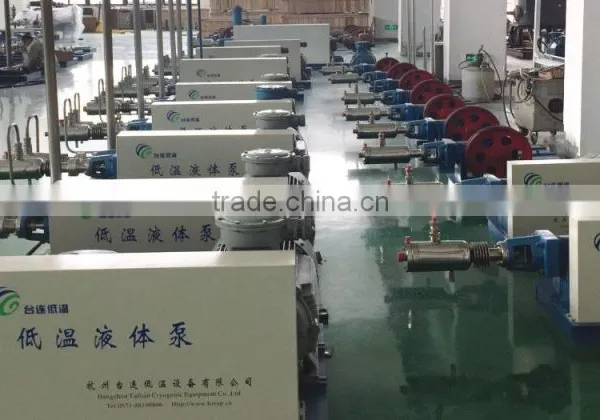

100-450Lh LO2 Flow Range Cryogenic Cylinder Filling Pump
1. OEM is welcome

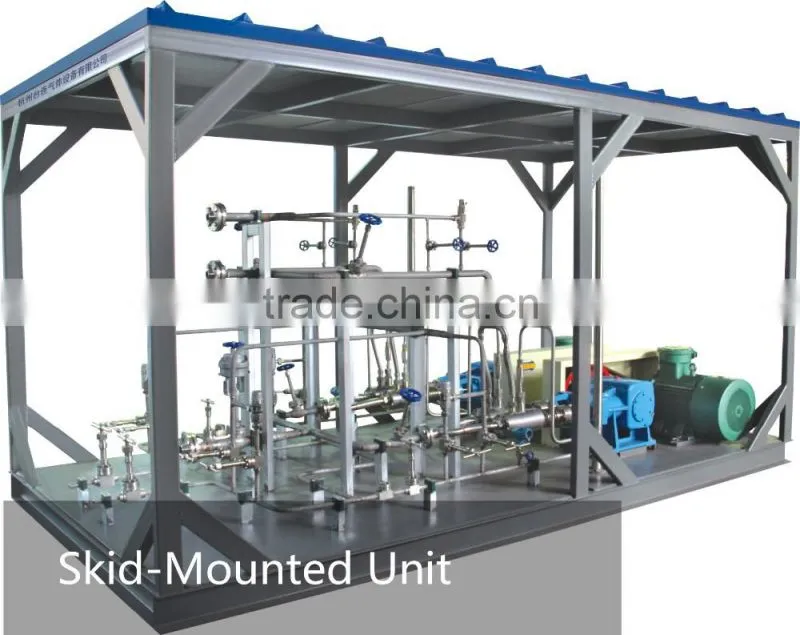

2. We also can manufacture Skid-mounted Integration System,
as well as other cryo units such as Ambient Vporizer
3. Quick reaction for the afterservice
4. Any questions will be replied in 4 hours.
5. We are searching for agents overseas, welcome your join-in.
Terms |
Technical Details |
Type |
Horizontal, Piston Pump |
Qty of Cold End |
One or Two or Three |
Design Temperature |
-196 Degree Celsius |
Medium |
LO2 LN2 LAr |
Inlet Pressure |
0.02~1.6MPa |
Outlet pressure |
2.2~40MPa |
Max Working Pressure |
1.6~40MPa |
Flow Rate |
5-1200L/H |
Motor |
380V 50HZ 7.5~11KW |
Working Limit |
At intervals / 24 Hours |
Gross Weight |
400KG |
Wear-parts Lifespan |
3000 Hours |
INDUSTRIAL GAS EQUIPMENT
Liquid oxygen pump is a single stage, single acting piston pump, used for filling oxygen into cylinders upto pressure of 165 kgs./cm2.
The pump is used in the air separation unit and works by pumping liquid oxygen and Gasifying the same in heat exchangers. These Gas are finally filled in the cylinders.
Components of Liquid Oxygen Pump
Liquid oxygen pump consists of the following components:
- Piston rings
- Safety device
- Non return valves with stainless steel head for long life
- Stainless steel liner with liquid in let and evaporated Gas outlet port
- Starter with pulley
- V belts
- Belt guard
- Inter connecting pipes
Process
- Liquid oxygen from the condenser enters the outer jacket.
- Some liquid evaporates and vapor is passed out through the upper port.
- Rest of the liquid passes into the pump cylinder.
- This liquid is compressed out by piston in pressure stroke.
- This liquid passes through non return valves into heat exchangers.
- Pure bone dry oxygen Gas at ambient temperature and high pressure is filled into oxygen cylinder.
- The Gas is filled into the cylinders through manifold valves by means of highly efficient reciprocating liquid oxygen pump.
