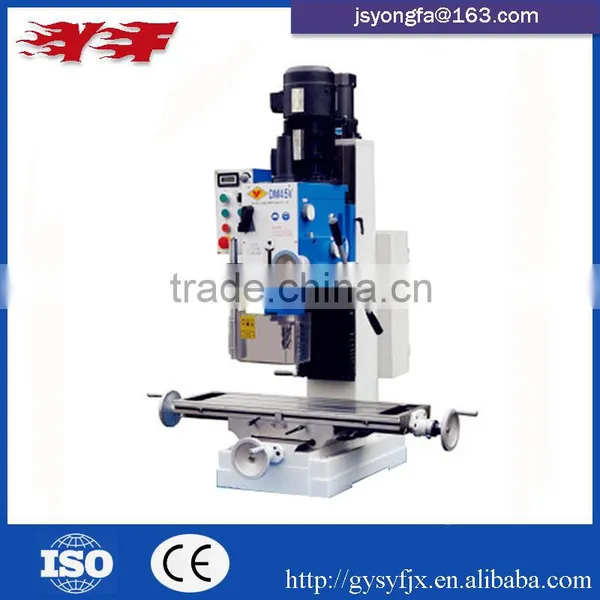

Help CenterVariable Frequency Milling Machine DM45V China Supplier
Related Products
-
Manufacturing Machine ZX40 Vertical Milling MachineNegotiableMOQ: 10 Sets -
Manufacturing Machine ZX40H Super High ColumnNegotiableMOQ: 1 Set
-
Vertical Drill Milling Machine ZX45 Small Machine ToolNegotiableMOQ: 1 Set
-
Multifunctional Drilling and Milling Machine ZX7045 Power China SupplierNegotiableMOQ: 1 Set
-
Vertical Drilling Machine ZS40H China SupplierNegotiableMOQ: 1 Set
The mill/drill is used to shape metal workpieces by removing material with the use of a rotating cutting tool.
In milling operations, the location of the cutting tool is stationary while the workpiece is fed into the cutter by moving the table.
In drilling operations, the workpiece is held stationary on the table while the cutting tool is fed vertically into the workpiece with the movement of the spindle and head.
This machine is driven by gear.
The spindle is reversible and features both coarse and fine downfeed controls. The variable spindle speeds of 75-2500rpm are controlled by an electronic variable-speed dial and one gearbox lever, with the current spindle speed displayed on the digital readout
Milling, drilling, tapping, boring, reaming
Head swivels feed ±90° vertically
Largely dimensioned table
Spindle micro feed (Auto-feed optional )
Heavy-duty tapered roller bearing spindle
Spindle can be locked, headstock power down feed
Adjustable gibs on table
Adjustable stops on table
Gear drive headstock , frequency conversion motor
Accurate position, good rigidity, big cutting power

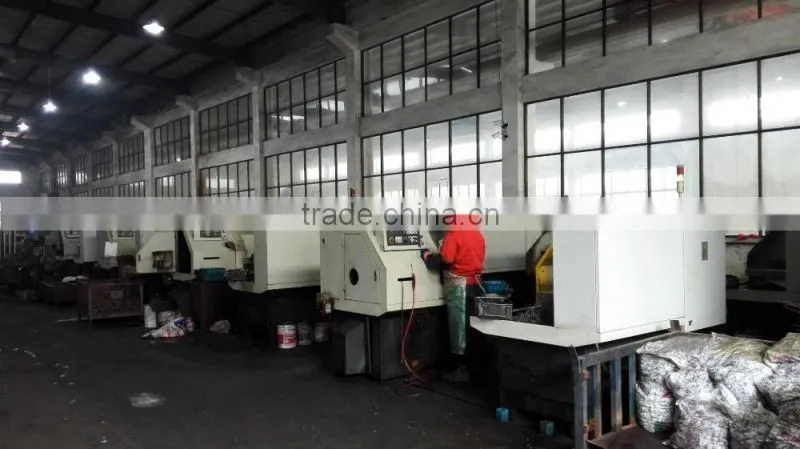

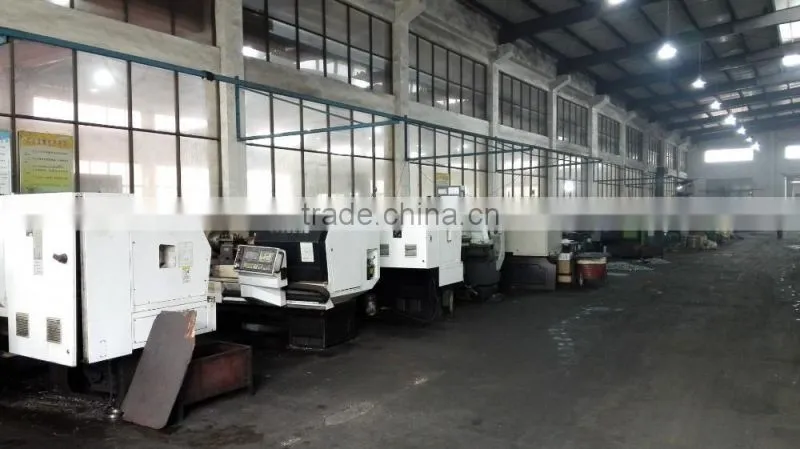

Gaoyou Yongfa Machinery Co., Ltd. is located in the ancient town of Gaoyou City Industrial Park, the plant is favorable geographical position. The company covers an area of over 30,000 square meters, construction area of over 20,000 square meters. More than 380 employees, including more than 50 senior engineers and technicians, with turning, milling, grinding and other metal cutting machinery, testing and other equipment more than 250 sets, and supporting a heat treatment equipment. The main products are bench lathe, milling machine series, machine parts and accessories, power tools and related parts. Products are exported to Europe and America over 50 countries and regions, favored by the users.
Mr. Elvis
Tel: +86 0514 8454 0912
Fax: +86 0514 8454 0988
Mob: +86 15751633657
QQ:2848376160
Web: https://img13.fr-trading.com
Add: Industrial Park, Gaoyou Town, Gaoyou City, Jiangsu, P.R.China
